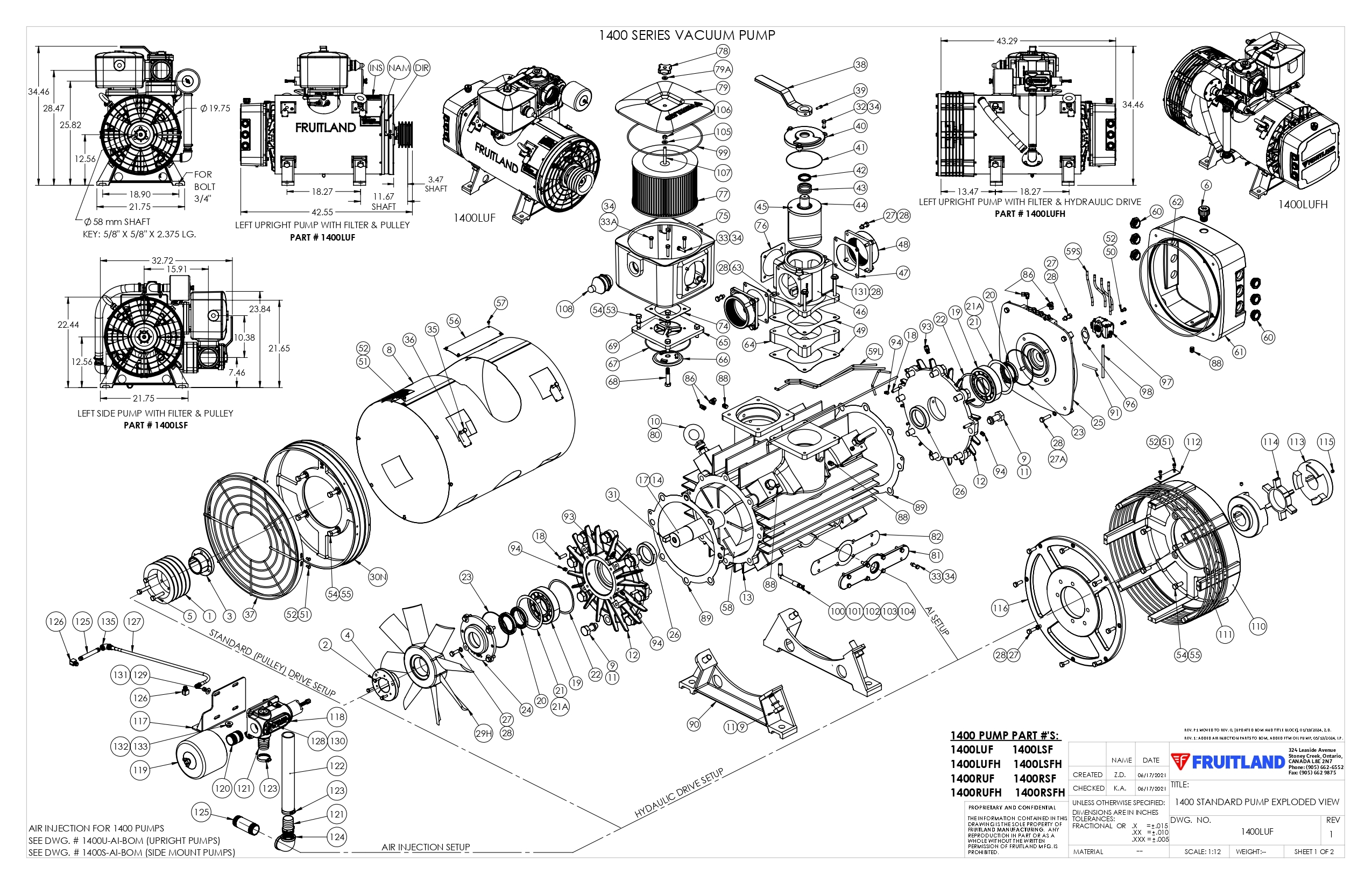

| ITEM # | PART # | DESCRIPTION | QTY. | ITEM # | PART # | DESCRIPTION | QTY. | |
| 1 | 4-5V8.0 | SHEAVE - Ø8" OD 4, 5-GROOVE, V-SECTION | 1 | 65 | RF140-BV1 | BACK-UP VALVE FLANGE - 1400 PUMP | 1 | |
| 2 | HBI-310-201 | HEX BOLT - 5/16"-18 NC x 2" LONG - Z.P. | 3 | 66 | RF140-BV2 | BACK-UP VALVE DISC - 1400 PUMP | 1 | |
| 3 | E58 | TAPER E BUSHING - Ø58mm BORE | 1 | 67 | RF140-BV3 | O-RING - BACK-UP VALVE | 1 | |
| 4 | SK60 | SK BUSHING - Ø60mm | 1 | 68 | HBM-12H-445- 130 | SHOULDER BOLT - M12mm x 44.5mm LONG - Ø13mm SHOULDER | 1 | |
| 5 | HBI-501-271 | HEX BOLT - 1/2"-20 NF x 2-3/4" LONG - Z.P. | 3 | 69 | HNM-120-L1 | LOCK NUT - M12 x 1.75mm - Z.P. | 1 | |
| 6 | RF500-190P | FILLER BREATHER CAP | 1 | 73 | RF140-7L-OR | O-RING - FILTER BOX LID | 1 | |
| 8 | RF140-46LU | HOUSING SHROUD - 1400LU PUMP | 1 | 74 | RF870-61 | GASKET - INTAKE FLANGE | 1 | |
| 9 | HBM-200-501 | HEX BOLT - M20 x 50mm LONG - Z.P. | 20 | 75 | RF140-7 | FILTER BOX - 1400 PUMP | 1 | |
| 10 | HNM-200-H1 | HEX NUT - M20 x 2mm - Z.P. | 2 | 76 | RF870-64 | GASKET - DIVERTER TO FILTER | 1 | |
| 11 | HWM-200-21 | LOCK WASHER - M20 - Z.P. | 20 | 77 | RF140-FC | FILTER CARTRIDGE | 1 | |
| 12 | RF140-3 | HOUSING END CAP - 1400 PUMP | 2 | 78 | RF140-F00 | FOUR ARM KNOB - 3/8"-16 NC | 1 | |
| 13 | RF140-1 | PUMP HOUSING - 1400 PUMP | 1 | 79 | RF140-7L | FILTER BOX LID | 1 | |
| 14 | HPI-25R-350 | ROLL PIN - Ø1/4" x 3-1/2" LONG | 2 | 79A | HWM-100-06 | FLAT WASHER - M10 - COPPER | 1 | |
| 17 | RF140-4 | ROTOR ASSEMBLY FOR 1400 PUMP | 1 | 80 | HBM-20E-040 | EYEBOLT - M20 x 40mm LONG | 2 | |
| 18 | HPI-38D-200 | DOWEL PIN - Ø3/8" x 2" LONG | 4 | 81 | RF870-16 | AIR INJECTION COVER | 1 | |
| 19 | RF140-19 | ROLLER BEARING (NJ313 SINGLE ROW CYL.) | 2 | 82 | RF870-63 | GASKET - BALLAST COVER | 1 | |
| 20 | RF140-20 | OIL SEAL ROTOR SHAFT | 3 | 85 | FPP-121-SBR | PIPE PLUG - 1-1/4" NPT - BRASS | 1 | |
| 21 | RF140-21 | BEARING SHIM .003IN THK (0.08mm) 5.433 X 4.567 | 1 | 86 | FCE-011-250-BR | COMP. ELBOW - 1/8 NPT x 1/4" TUBE OD - BRASS | 10 | |
| 21A | RF140-21A | BEARING SHIM .005IN THK (0.12mm) 5.433 X 4.567 | 1 | 88 | FPP-021-BSQ | PIPE PLUG - 1/4" NPT - SQ HEAD (BLACK IRON) | 6 | |
| 22 | RF140-24 | WAVE SPRING (138mm OD x 88mm ID) | 2 | 89 | RF140-89 | GASKET - HOUSING END CAP | 2 | |
| 23 | RF140-23 | O-RING - SEAL HOUSING | 2 | 90 | RF120-9 | PUMP BASE - 1200 & 1400 PUMPS | 2 | |
| 24 | RF140-15 | SEAL HOUSING - 1400 PUMP | 1 | 91 | HPI-15R-125 | ROLL PIN - Ø5/32" x 1-1/4" LONG | 1 | |
| 25 | RF140-22 | OIL SEAL HOUSING - 1400 PUMP | 1 | 93 | FCS-011-250-BR | COMP. FITTING - 1/8" NPT x 1/4" TUBE OD - BRASS | 4 | |
| 26 | RF120-8 | ROTOR COLLAR | 2 | 94 | FPP-011-HCS | PIPE PLUG - 1/8" NPT - SOCKET HEX - STEEL | 4 | |
| 27 | HBM-100-301 | HEX BOLT - M10 x 30mm - Z.P. | 16 | 96 | RF500-27 | GASKET - OIL PUMP | 1 | |
| 27A | HBM-100-401 | HEX BOLT - M10 x 40mm - Z.P. | 4 | 97 | OPA-140L* | FRUITLAND OIL PUMP LH | 1 | |
| 28 | HWM-100-21 | LOCK WASHER - M10 - Z.P. | 20 | OPA-140R* | FRUITLAND OIL PUMP RH | 1 | ||
| 29H | RF120-33L | FAN (LEFT HAND) - 1200 & 1400 PUMPS | 1 | 98 | OPM-140-15 | INTAKE PIPE - 1/16" NPT x 5-1/2" LONG | 1 | |
| 30N | RF140-34N | FAN SHROUD - 1400 PUMP | 1 | 100 | FPN-021-350-BI | NIPPLE - 1/4" NPT x 3-1/2" LONG - BLACK IRON | 2 | |
| 31 | RF120-74 | KEY (5/8" x 5/8" x 2-3/8" LONG) | 1 | 101 | FVP-021-BR | DRAIN/PLUG VALVE - 1/4" NPT - BRASS | 1 | |
| 32 | HBM-080-251 | HEX BOLT - M8 x 25mm - Z.P. | 3 | 102 | FPE-022-90-BI | PIPE ELBOW (FXF) - 1/4" NPT - BLACK IRON | 1 | |
| 33 | HBM-080-301 | HEX BOLT - M8 x 30mm - Z.P. | 12 | 103 | FPN-021-450-BI | NIPPLE - 1/4" NPT x 4-1/2" LG - BLACK IRON | 1 | |
| 33A | HBM-080-401 | HEX BOLT - M8 x 40mm - Z.P. | 4 | 104 | FPC-022-BI | PIPE COUPLING - 1/4" NPT - BLACK IRON | 1 | |
| 34 | HWM-080-21 | LOCK WASHER - M8 - Z.P. | 19 | 105 | HWI-380-32 | FLAT WASHER, SAE (SMALL) - 3/8" - Y.Z.P. | 1 | |
| 35 | HBM-080-201 | HEX BOLT - M8 x 20mm - Z.P. | 4 | 106 | HNI-380-H1 | HEX NUT - 3/8"-16 NC - Z.P. | 1 | |
| 36 | RF120-151 | SHROUD BRACKET | 4 | 107 | RF140-7TR | THREADED ROD - 3/8"-16 NC x 7-1/2" LONG - Z.P. | 1 | |
| 37 | RF120-290 | FAN GUARD HALF 1200 PUMP (2PIECE = 1 GUARD) | 2 | 108 | VB | VACUUM RELIEF VALVE - 1-1/2" NPT | 1 | |
| 38 | RF500-13F | LEVER ASSEMBLY FOR FRUITLAND VACUUM PUMPS | 1 | 110 | RF140-BH | BELL HOUSING - 1400 PUMPS | 1 | |
| 39 | HBI-251-756 | SHCS - 1/4"-28 NF x 3/4" LONG | 1 | 111 | RF120-GR | GUARD RINGS | 4 | |
| 40 | RF120-12 | DIVERTER VALVE CAP | 1 | 112 | RF120-02 | CLAMP PLATE FOR BELL HOUSING | 1 | |
| 41 | RF120-12-OR | O-RING - DIVERTER VALVE CAP | 1 | 113 | WT358 | WT358 COUPLING FLANGE CAST | 2 | |
| 42 | RF500-62A | OIL SEAL - DIVERTER VANE | 1 | 114 | WT358H | COUPLING FLANGE SPECIFY BORE | 1 | |
| 43 | RF500-14A | SPRING - DIVERTER VANE | 1 | 115 | HBI-38S-503 | SET SCREW - 3/8"-16 NC x 1/2" LONG | 2 | |
| 44 | RF870-10F | DIVERTER VANE | 1 | 116 | RF120-MP | HYD. MOTOR MOUNTING PLATE | 1 | |
| 45 | HPI-310-125 | ROLL PIN - Ø5/16" x 1-1/4" LONG | 1 | 117 | RF870-AI-U | AIR INJECTION VALVE MOUNTING PLATE | 1 | |
| 46 | RF870-11F | DIVERTER HOUSING - FILTER PUMPS | 1 | 118 | RF870-AI | AIR INJECTION VALVE ASSEMBLY | 1 | |
| 47 | RF870-65 | GASKET - DIVERTER FLANGE | 2 | 119 | AI-870-F | AIR INJECTION FILTER | 1 | |
| 48 | RF870-4NPT | DIVERTER FLANGE - 4" NPT | 2 | 120 | FPN-121-020-CS | PIPE NIPPLE - 1-1/4" NPT x 2" LONG | 1 | |
| 49 | RF870-62 | GASKET - PUMP OUTLET FLANGE | 2 | 121 | FPA-121-155-BR | PIPE ADAPTOR - 1-1/4" NPT x 1-1/2" BARB | 2 | |
| 50 | HBM-060-161 | HEX BOLT - M6 x 16mm LONG - Z.P. | 2 | 122 | RHS-150-EXF | RUBBER HOSE - Ø1-1/2" - EXTREMEFLEX 13-1/2" LONG (UPRIGHT) | 1 | |
| 51 | HBM-060-101 | HEX BOLT - M6 x 10mm LONG - Z.P. | 14 | 123 | HCM-080-055 | HOSE CLAMP - 1-1/2" (52-55mm) | 2 | |
| 52 | HWM-060-21 | LOCK WASHER - M6 - Z.P. | 16 | 124 | FPE-122-90-CS | PIPE ELBOW 90° (FxF) - 1-1/4" NPT | 1 | |
| 53 | HBM-120-401 | HEX BOLT - M12 x 40mm LONG - Z.P. | 4 | 125 | FPN-121-040-CS | PIPE NIPPLE - 1-1/4" NPT x 4" LONG | 1 | |
| 54 | HWM-120-21 | LOCK WASHER - M12 - Z.P. | 8 | 126 | FPE-020-91-BR | STREET ELBOW 90° (MxF) - 1/4" NPT - BRASS | 2 | |
| 55 | HBM-120-301 | HEX BOLT - M12 x 30mm LONG - Z.P. | 4 | 127 | AI-870-84 | S.S. BRAIDED HOSE - 1/4" NPT x 23" LG. x 3/8" OD | 1 | |
| 56 | RF140-47 | SHROUD PLATE | 1 | 128 | HBI-310-121 | HEX BOLT - 5/16"-18 NC x 1-1/4" LG - Z.P. | 4 | |
| 57 | HBI-06R-380 | SELF DRILLING SCREW | 4 | 129 | HNI-310-N2 | NYLOCK HEX NUT - 5/16"-18 NC - Y.Z.P. | 4 | |
| 58 | RF140-6 | VANES FOR 1400 PUMP | 8 | 130 | HWI-310-32 | FLAT WASHER, SAE (SMALL) - 5/16" - Y.Z.P. | 4 | |
| 59L | 1400LUOL1 | 1400LU EXTERNAL OIL LINE 1 | 1 | 131 | HWI-310-42 | FLAT WASHER, USS (LARGE) - 5/16" - Y.Z.P. | 4 | |
| 1400LUOL2 | 1400LU EXTERNAL OIL LINE 2 | 1 | 132 | HBM-100-1051 | HEX BOLT - M10 x 105mm LONG - Z.P. | 2 | ||
| 1400LUOL3 | 1400LU EXTERNAL OIL LINE 3 | 1 | 133 | HNM-100-N1 | NYLOCK NUT - M10 x 1.5mm - Z.P. | 2 | ||
| 1400LUOL4 | 1400LU EXTERNAL OIL LINE 4 | 1 | 134 | HWM-100-01 | FLAT WASHER - M10 - Z.P. | 2 | ||
| 59S | OPX-050-700 | PLASTIC OIL LINE - 7" LONG | 2 | 135 | FPE-022-90-BI | PIPE ELBOW, 90° (FxF) - 1/4" NPT | 1 | |
| OPX-050-800 | PLASTIC OIL LINE - 8" LONG | 2 | 136 | FPN-021-040-CS | PIPE NIPPLE - 1/4" NPT x 4" LONG | 1 | ||
| 60 | RF500-25SG | SIGHT GLASS - 1" BSPP | 6 | DIR | RF500-DIR | DIRECTION TAG | 1 | |
| 61 | RF140-189 | OIL TANK COVER - 1400 PUMP | 1 | INS | RF500-INS | INSTRUCTION TAG | 1 | |
| 62 | RF140-62 | O-RING - OIL TANK | 1 | NAM | RF500-NAM | NAME PLATE | 1 | |
| 63 | HBM-100-801 | HEX BOLT - M10 x 80mm - Z.P. | 4 | MAN | RF500-MAN | MANUAL | 1 | |
| 64 | RF140-64 | TRANSITION PLATE - 1400 PUMP | 1 |
