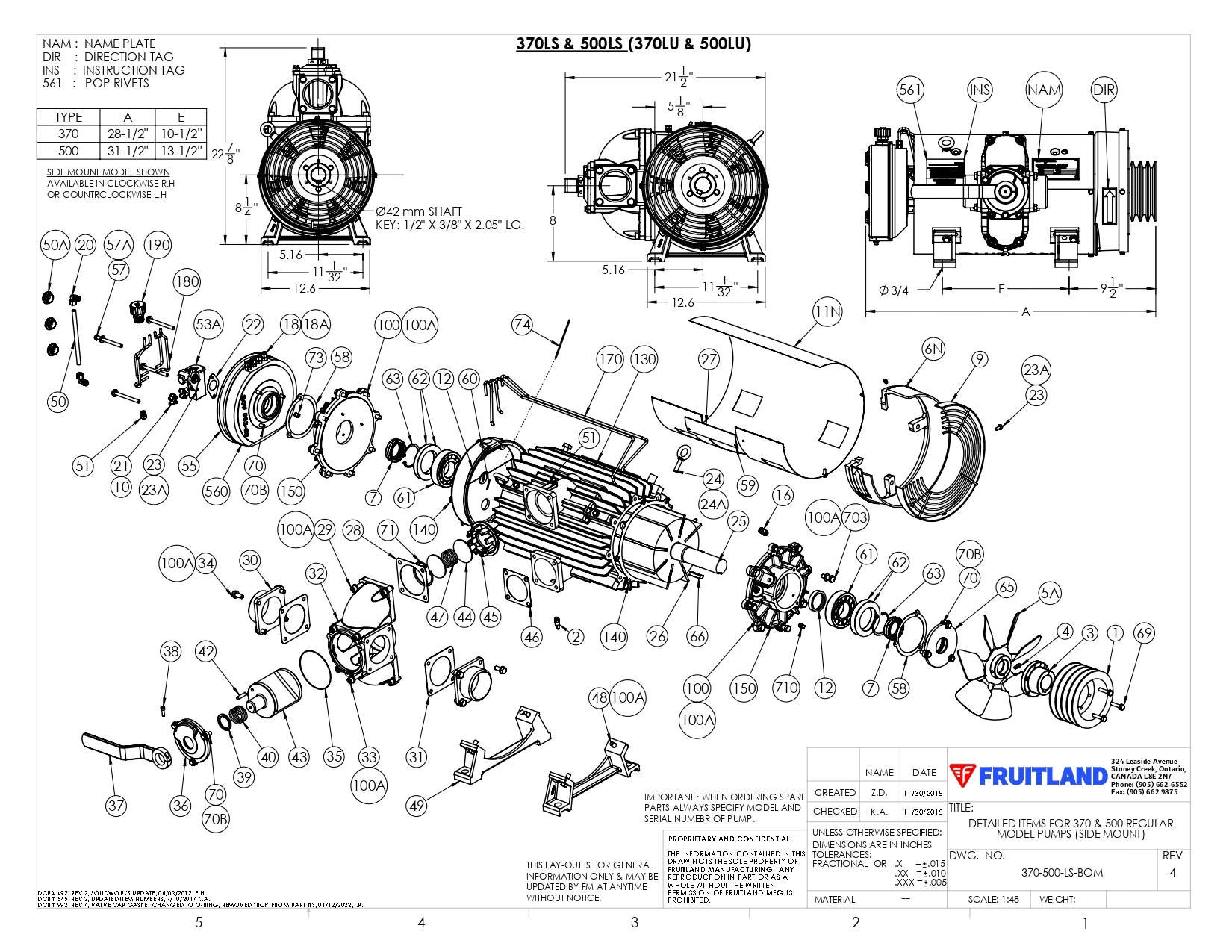

| ITEM # | PART # | DESCRIPTION | QTY. | ITEM # | PART # | DESCRIPTION | QTY. | |
| 1 | RF500-38 | 6" SHEAVE 4 GROOVE B SECTION | 1 | 58 | RF500-70 | GASKET - SEAL HOUSING | 2 | |
| 2 | RF500-82A | DRAIN PLUG VALVE - 1/4" NPT | 1 | 59 | RF500-71A | SELF DRILLING SCREW | 9 | |
| 3 | SK 42 | SHEAVE BUSHING SK 42mm | 1 | 60 | RF500-72A | ROLL PIN FOR OIL PUMP - 5/32" x 1-1/4" | 1 | |
| 4 | RF500-48B | 5/16" NF x 7/8" LG. SHCS - PLAIN | 1 | 61 | RF500-19A | ROLLER BEARING | 2 | |
| 5 | RF500-33L * | FAN ASSEMBLY - L.H. | 1 | 62 | RF500-20A | BELLEVILLE SPRING | 4 | |
| 5A | RF500-33R * | FAN ASSEMBLY - R.H. | 1 | 63 | RF500-35A | SNAP RING | 2 | |
| 6N | RF500-34N | FAN SHROUD (NEW STYLE) | 1 | 64 | ELBOW 45 DEG | 45 DEG. ELBOW FITTING | 1 | |
| 7 | RF500-225A | OIL SEAL - ROTOR SHAFT | 4 | 65 | RF500-15 | SMALL SEAL HOUSING | 1 | |
| 9 | RF500-30 | FAN GUARD | 1 | 66 | RF500-74 | KEY - 3/8" x 1/2" x 1-3/4" | 1 | |
| 10 | 250-6 | SOLDER FITTING - OIL PUMP OUTLET | 4 | 67 | A270-4 | NIPPLE - 1/4" NPT x 10" LONG (RCF 500) | 1 | |
| 11N | RF500-46U * | HOUSING SHROUD | 1 | 67A | NIPPLE 1/4" x 8" | NIPPLE - 1/4" NPT x 8" LONG (RCF 370) | 1 | |
| 12 | RF500-8 | COLLAR (FINISH GRIND) | 2 | 68 | RF250-32A | 1/4" NPT BRASS 90° ELBOW | 1 | |
| 16 | RF500-50A | 1/8" NPT COMPRESSION FITTING | 4 | 69 | RF500-0 | BOLT -5/16" NC x 1-1/2" & LW INCLD. W/ ITEM 3 | 3 | |
| 18 | RF500-52A | BULKHEAD FITTING | 4 | 70 | RF500-48A | HEX BOLT - M8 x 25mm - Z.P. | 9 | |
| 18A | U-SEAL | U-SEAL WASHER (OIL TANK BULKHEAD) | 4 | 70B | RF120-96A | LOCKWASHER (SPLIT) - M8 - Z.P. | 13 | |
| 20 | RF500-32A | SIGHT TUBE ELBOW FITTING | 2 | 71 | RF500-78A | SNAP RING - BACK-UP VALVE | 1 | |
| 21 | 250-6A | HOLLOW BOLT - M6 | 4 | 72 | RF500-72B | ROTOR SHAFT ROLL PIN - 1/4" X 3" | 1 | |
| 22 | RF500-27 | GASKET - OIL PUMP | 1 | 73 | RF500-80A | OIL PUMP COUPLING | 1 | |
| 23 | RF500-28A | HEX BOLT - M6 x 16mm - Z.P. | 6 | 74 | RF500-81 | VANE WEAR TEST ROD | 1 | |
| 23A | RF500-280A | LOCKWASHER M6 | 10 | 75 | A270-5 | PIPE NIPPLE - 1/4" NPT x 1-1/2" LONG | 1 | |
| 24 | RF500-37A | EYEBOLT - M10 | 2 | 100 | RF500-67A | HEX BOLT - M10 x 30mm - Z.P. | 16 | |
| 24A | RF500-37S | EYEBOLT SPACER - 10mm | 2 | 100A | RF120-94A | LOCK WASHER (SPLIT) - M10 - Z.P. | 32 | |
| 25 | RF500-4 | ROTOR ASSEMBLY | 1 | 101 | HBM-100-350 | HEX BOLT - M10 x 35mm - GRADE 10.9, Z.P. | 4 | |
| 26 | RF500-6A | VANES | 8 | 130 | RF500-1 | PUMP HOUSING | 1 | |
| 27 | RF500-47 | SHROUD PLATE (7.5" x 3.4") | 1 | 140 | RF500-140 | GASKET - HOUSING CAP | 2 | |
| 28 | RF500-55 | GASKET - PUMP INLET | 1 | 150 | RF250-3 | HOUSING END CAP | 2 | |
| 29 | RF500-56A | S.H.C.S. - M10 x 30mm | 4 | 190 | RF500-190P | BREATHER FILLER | 1 | |
| 30 | RF500-18 | DIVERTER END CAP | 2 | 560 | RF500-22 * | SEAL HOUSING - LARGE | 1 | |
| 31 | RF500-57 | GASKET - DIVERTER END CAPS | 2 | 600 | RF500-F00 | STAR KNOB FOR FILTER BOX LID | 1 | |
| 32 | RF500-11 | DIVERTER HOUSING | 1 | 601 | RF500-F01 | COPPER WASHER | 1 | |
| 33 | RF500-58A | S.H.C.S. - M10 x 150mm | 4 | 602 | RF500-FL | FILTER BOX LID | 1 | |
| 34 | RF500-59A | HEX BOLT - M10 x 25mm - PLAIN | 8 | 603 | RF500-FB | FILTER BOX | 1 | |
| 35 | RF500-12-OR | O-RING - VALVE CAP | 1 | 604 | RF500-04 | FILTER BOX O-RING | 1 | |
| 36 | RF500-12 | DIVERTER VALVE CAP | 1 | 605 | RF500-FC | S.S MESH FILTER CARTRIDGE | 1 | |
| 37 | RF500-13 | DIVERTER LEVER ASSEMBLY | 1 | 607 | HBM-080-030-SZ8 | S.H.C.S. - M8 x 30mm - Z.P. | 4 | |
| 37B | RF500-13F | LEVER ASSEMBLY - FILTER PUMP | 1 | 608 | RF500-21 | TRANSITION PLATE WITH BU VALVE CAGE | 1 | |
| 38 | RF500-130A | SHCS - 1/4"-28 x 3/4" | 1 | 609 | RF500-65F | GASKET - TRANSITION PLATE | 1 | |
| 39 | RF500-62A | OIL SEAL - DIVERTER VANE | 1 | 610 | RF500-10F | DIVERTER VANE - FILTER | 1 | |
| 40 | RF500-14A | DIVERTER VANE SPRING | 1 | 611 | RF500-11F | DIVERTER HOUSING | 1 | |
| 41 | RF500-65 | GASKET - FILTER TO DIVERTER | 1 | 700 | RF500-BH | HYDRAULIC DRIVE BELL HOUSING | 1 | |
| 42 | RF500-64A | SPLIT PIN - Ø5/16" x 1-1/4" | 1 | 701 | RF500-MP | MOUNTING PLATE | 1 | |
| 43 | RF500-10 | DIVERTER VANE | 1 | 702 | RF500-GR | GUARD RINGS (1 PC.) | 4 | |
| 44 | RF500-17BP | BACK-UP VALVE - BOTTOM PLATE | 1 | 703 | RF500-703 | HEX BOLT - M10 x 50mm - Z.P. | 4 | |
| 44A | RF500-44B | BACK-UP VALVE - TOP PLATE | 1 | 704 | M8X35HEX | HEX BOLT - M8 x 35mm - Z.P. | 8 | |
| 45 | RF500-17C | BACK-UP VALVE - SEAT | 1 | 705 | M8 F/W | FLAT WASHER - M8 - Z.P. | 8 | |
| 46 | RF500-21G | GASKET - PUMP OUTLET TO TP | 1 | 706 | F190-XXX | F190 FLANGES 42mm & SPECIFY OTHER | 2 | |
| 47 | RF500-66A | BACK-UP VALVE - SPRING | 1 | 707 | F190-INS | F190 COUPLING INSERT | 1 | |
| 49 | RF500-9 | BASE | 2 | 708 | RF120-134 | SET SCREW - 1/8" NC x 1/2" | 2 | |
| 50 | RF500-25A | SIGHT HOSE | 1 | 710 | RF250-69A | PIPE PLUG - 1/8" NPT BLK. SQ. HD. | 4 | |
| 50A | RF500-25SG | SIGHT GLASS | 3 | 712 | RF500-240 | PIPE PLUG - 1-1/2" NPT | 1 | |
| 51 | RF500-69A | PIPE PLUG - 1/4" NPT BLACK, SQU. HD. | 7 | 713 | RF500-ADA2 | ANGLE DRIVE APAPTOR PLATE | 1 | |
| 53 | RF500-29 | OIL PUMP - BI-DIRECTIONAL | 1 | INS | RF500-INS | INSTRUCTION TAG OIL | 1 | |
| 54 | RF500-23SG | OIL PUMP COVER | 1 | DIR | RF500-DIR | DIRECTION TAG | 1 | |
| 55 | RF500-26 | GASKET - PUMP COVER | 1 | NAM | RF500-NAM | NAME PLATE | 1 | |
| 57 | RF500-24A | HEX BOLT - M8 x 90mm - Z.P. | 4 | MAN | RF500-MAN | MANUAL | 1 | |
| 57A | RF500-221A | ALUMINUM FLAT WASHER | 4 |
