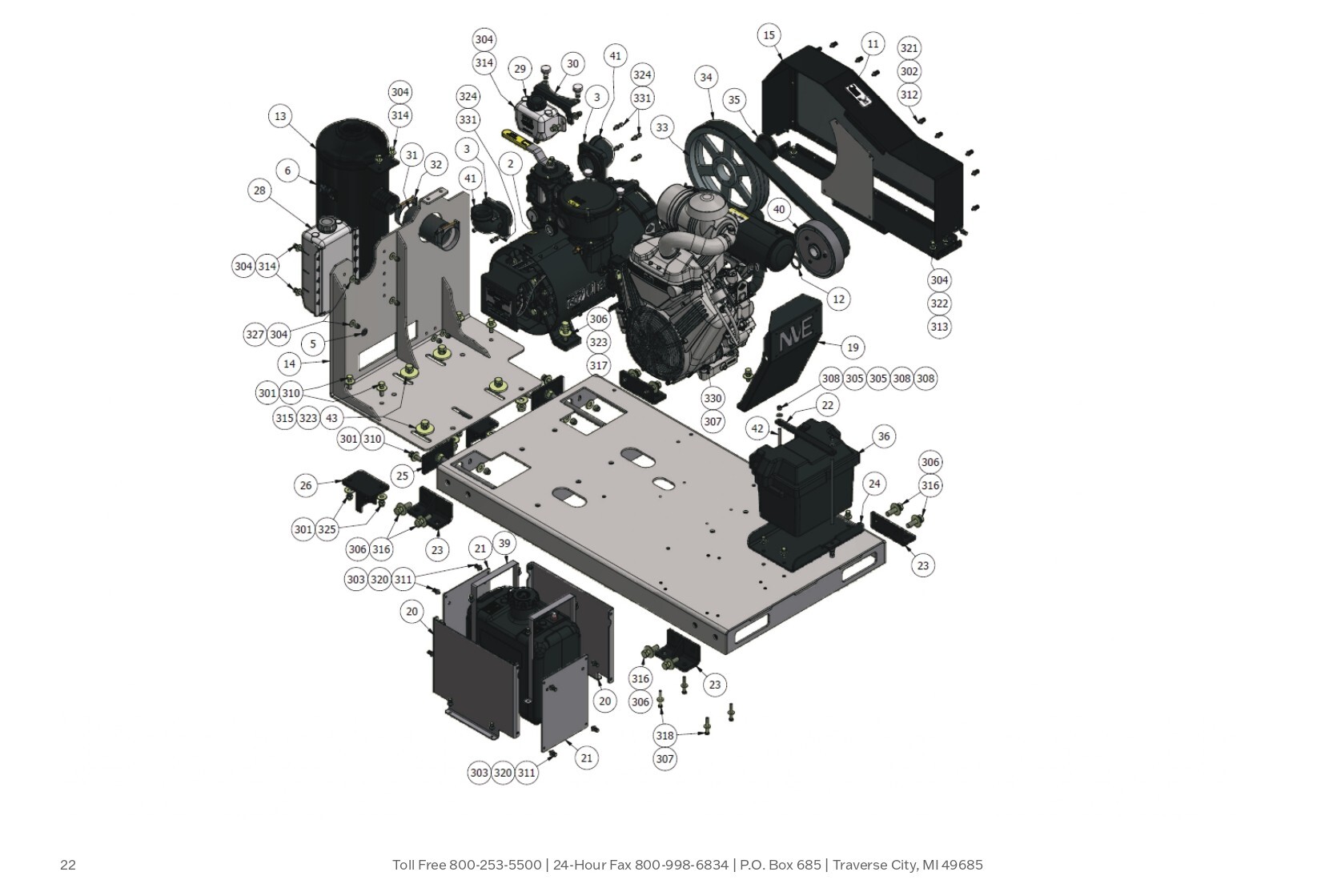

607 PRO Gas Engine Drive






ITEM QTY PART NUMBER DESCRIPTION   ITEM QTY PART NUMBER DESCRIPTION
1 1 100-607P-FS CHALLENGER 607 PRO CCW FAN   40 1 460-200-108 MUFFLER 37HP VANGUARD
2 1 120-047-003 PLUG HEX COUNTERSUNK 1.50" NPT ZINC PLATED   41 2 460-400-002 FUEL TANK, 7 GAL, PLASTIC
3 2 120-063-007 FLANGE ELBOW ALUM 3"   42 2 802-063-005 CLUTCH, CENTRIFUGAL, SOFT START
4 2 120-064-016 O-RING, 2-342 VITON   43 5 860-010 ELBOW, 3" STE CAST
5 1 120-078-005 GROMMET 0.5 I.D. 0.8125 G.D. 0.25 G.W.   44 19 860-033 THREADED ROD 3/8"-16 UNC X 11.00" SS
6 1 120-100-001 DECAL, NVE, MUFFLER PAK   45 1 868-001 OVERSIZED WASHER, 5/8" Z/P
7 1 120-100-011 DECAL DRAIN DAILY - YELLOW   301 18 FW - 1/2 FLAT WASHER, 1/2
8 1 120-100-012 DECAL CLEAN FILTER REGULARY YELLOW   302 19 FW - 1_4 FLAT WASHER - 1/4"
9 1 120-100-015 DECAL HOT   303 24 FW - 1_4 USS FLAT WASHER - 1/4" USS
10 1 120-100-017 DECAL FLUSHING FLUID - 1 QT TANK   304 29 FW - 3/8 *Varies*
11 1 120-101-012 DECAL DRIVES WITHOUT GUARDS WARNING   305 5 FW - 3/8 SS FLAT WASHER, 3/8 SS
12 1 126-016-001 SPACER, CLUTCH - 607 ENGINE DRIVE W/ PRESS.   306 16 FW - 5/8 FLAT WAHSER, 5/8
13 1 212-100-3NPT-4 PUMP   307 8 FW - 5/16 FLAT WASHER, 5/16
14 1 280-355-300 OCM 10" DIA X 17.5" NPT W/ HB   308 6 HEX NUT - 3_8 UNC SS HEX NUT - 3_8 UNC SS
15 1 280-355-301 607 POWER PAK PUMP SLED ASSY   309 2 HHCS - 1/2-13 UNC X 1.50 HEX HEAD CAP SCREW - 1/2-13 UNC X 1.50
16 1 280-355-301-5 SHORT BELT GUARD ASSY - 607 POWER PAK   310 8 HHCS - 1/2-13 UNC X 1.75 HEX HEAD CAP SCREW - 1/2-13 UNC X 2.00
17 1 BELT     311 16 HHCS - 1_4-20 UNC X 1.00 HEX HEAD CAP SCREW - 1/4-20 UNC X 1.00
19 1 280-355-302 FRAME FOR 607 PRO FAN COOLED CW WITH 37 HP   312 19 HHCS - 1_4-20 UNC X 1.00 SS HEX HEAD CAP SCREW - 1_4-20 UNC X 1.00 SS
20 2 280-355-315 VANGUARD ENGINE   313 9 HHCS - 3/8-16 UNC X 1.00 HEX HEAD CAP SCREW - 3/8-16 UNC X 1.00
21 2 280-355-343-1 ENGINE GUARD, FAB - 607 POWERPAK   314 10 HHCS - 3/8-16 UNC X 1.25 HEX HEAD CAP SCREW - 3/8-16 UNC X 1.25
22 1 280-355-343-2 GUARD PLATE, FUEL TANK, 7 GAL, PLASTIC   315 5 HHCS - 5/8-11 UNC X 1.75 HEX HEAD CAP SCREW - 5/8-11 UNC x 1.75
23 4 280-EDR-002 GUARD PLATE COVER, FUEL TANK, 7 GAL, PLASTIC   316 8 HHCS - 5/8-11 UNC X 2.25 HEX HEAD CAP SCREW - 5/8-11 UNC X 2.25
24 1 280-EDR-607-3 BATTERY HOLD DOWN   317 4 HHCS - 5/8-11 UNC X 2.50 HEX HEAD CAP SCREW - 5/8-11 UNC X 2.50
25 2 280-EDR-607-14 607 EDR 1 MOUNTING FOOT ASSEMBLY   318 4 HHCS - 5_16-18 UNC X 3.75 HEX HEAD CAP SCREW - 5/16-18 UNC X 3.75
26 2 280-EDR-607-19 EDR BATTERY CRADLE   319 2 LW - 1/2 LOCK WASHER, 1/2
27 2 280-EDR-607-20 EDR PUMP SLED DRIVER ASSY   320 16 LW - 1/4 LOCK WASHER, 1/4
28 1 310-LP4 EDR PUMP SLED DRIVER HOUSING ASSY   321 19 LW - 1_4 SS LOCK WASHER, 1/4"
29 1 320-082-001 HOSE BARB 1/4" NPT X 1/4" 90 DEG ELBOW BRASS   322 9 LW - 3/8 LOCK WASHER, 3/8
30 1 320-082-003Z OIL TANK, 5QT, W/LOGO   323 9 LW - 5/8 LOCK WASHER, 5/8
31 1 320-083-006 FLUSH TANK ASSY HDPE 1QT   324 8 LW - 5/16 LOCK WASHER, 5/16
32 2 426-300-TAR-0600 BRACKET FLUID FLUSH POWDERCOAT   325 8 NYLOCK NUT - 1/2 UNC NYLOCK NUT - 1/2 UNC
33 1 426-3875-TBC HOSE 3"D X 6"L   326 8 NYLOCK NUT - 1/4 UNC NYLOCK NUT - 1/4 UNC
34 1 430-100-048 CLAMP, T-BOLT 3.875"   327 10 NYLOCK NUT - 3/8 UNC NYLOCK NUT - 3/8 UNC
35 1 430-200-037 DRIVEN SHEAVE - 13.63" DIA 3B-GROOVE   328 1 NYLOCK NUT - 3/8 UNC SS NYLOCK NUT - 3/8 UNC SS
36 1 430-300-006 3B66 COG V-BELT - BANDED   329 4 NYLOCK NUT - 5/8 UNC NYLOCK NUT - 5/8 UNC
37 1 450-100-006 BUSHING SK X 1.5" .375"` KEYWAY   330 4 NYLOCK NUT - 5/16 UNC NYLOCK NUT - 5/16 UNC
38 1 460-200-023 BATTERY BOX SMALL GROUP 24   331 8 SHCS - 5/16-18 UNC X 1.25 SOCKET HEAD CAP SCREW - 5/16-18 UNC X 1.25
