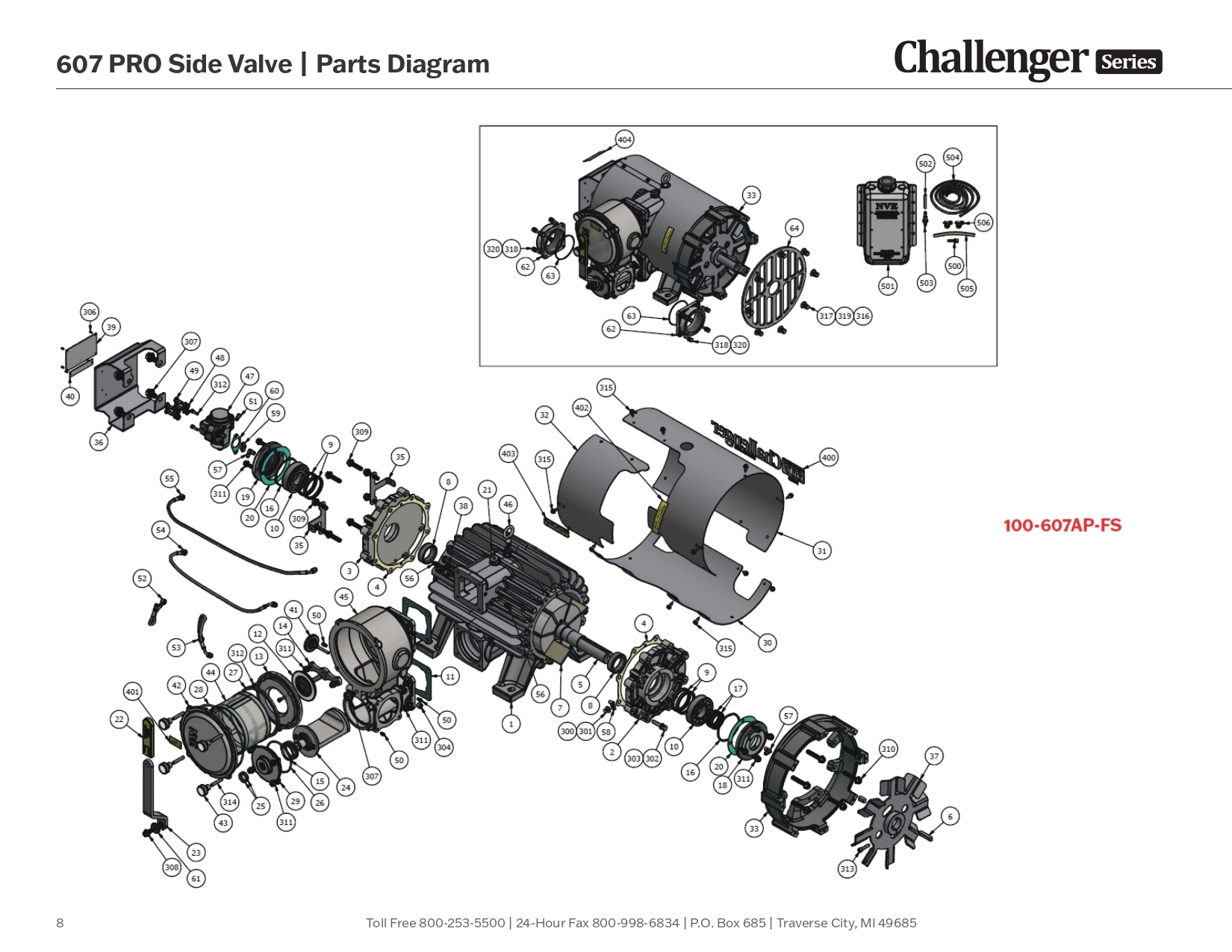

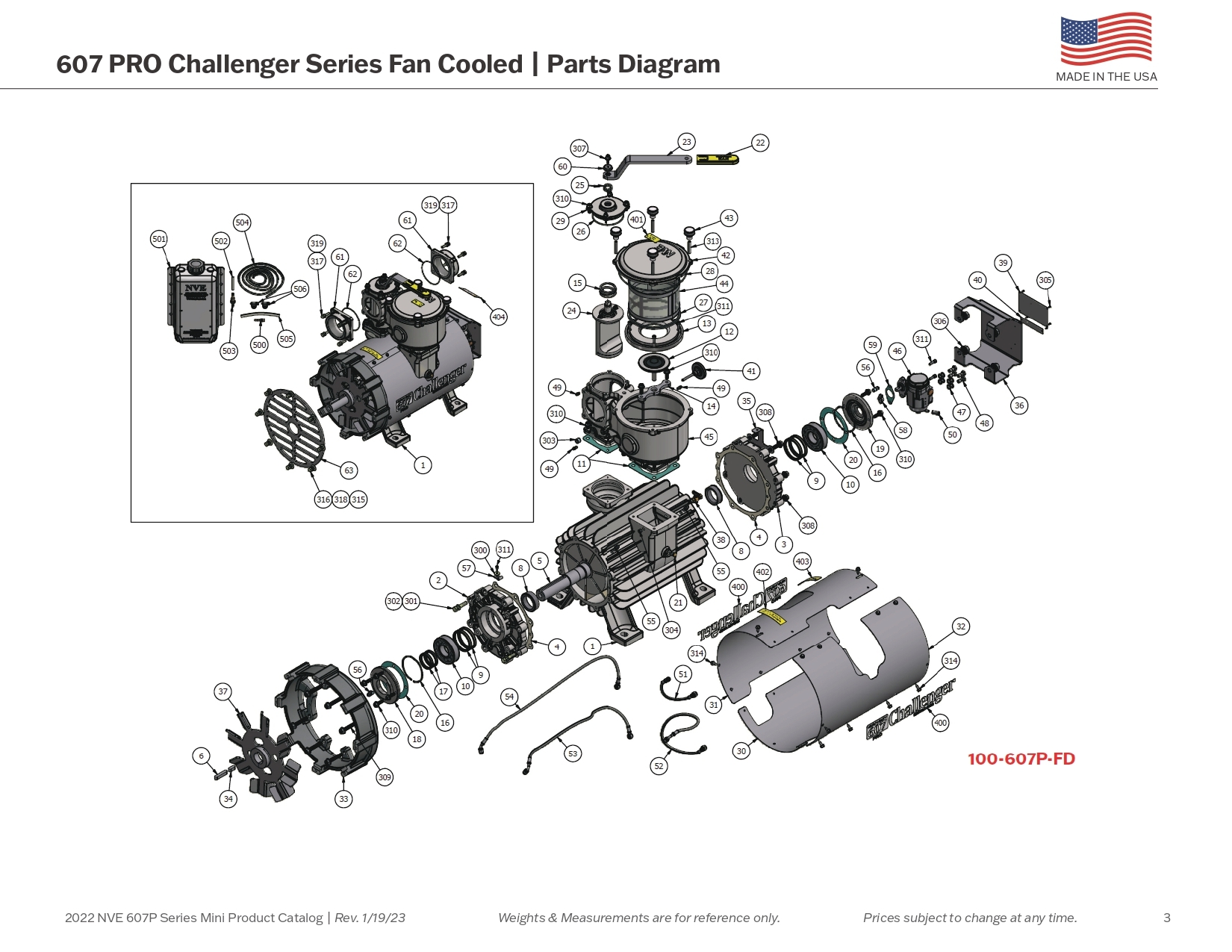

ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
1 |
1 |
120-001-367 |
HOUSING607 |
|
2 |
1 |
120-003-002 |
ENDPLATE 607 CW |
|
3 |
1 |
120-003-003 |
ENDPLATE 607 CCW |
|
4 |
2 |
120-004-367 |
GASKET ENDPLATE 607 |
|
5 |
1 |
120-005-367 |
ROTOR607 |
|
6 |
1 |
120-006 |
KEY3/8"X3/8"X2" |
|
7 |
7 |
120-007-367 |
VANE 607 |
|
8 |
2 |
120-009-367 |
SEAL SLEEVE 607 |
|
9 |
4 |
120-018-367 |
SEAL60X72X8VITONSGLLIP |
|
10 |
2 |
120-019-367 |
BEARINGNJ308C3 |
|
11 |
2 |
120-039-367 |
GASKET607INTAKE/EXHAUST |
|
12 |
1 |
120-041-005 |
C.V.POPPIT-607&B500 |
|
13 |
1 |
120-041-006 |
C.V.SEAT-607&B500 |
|
14 |
1 |
120-041-007 |
C.V.RETAINER-607&B500 |
|
15 |
1 |
120-045 |
SPRING4-WAYFTRVALVE |
|
16 |
2 |
120-045-001 |
SPRINGWAVEWIRE3.50"DIA |
|
17 |
2 |
120-053 |
SEAL40X52X7VITON |
|
18 |
1 |
120-054-001 |
BEARING COVER 607 |
|
19 |
1 |
120-054-002 |
BEARINGCOVER607OILPUMP |
|
20 |
2 |
120-055-367 |
GASKET,FRONTBEARINGCOVER |
|
21 |
1 |
120-058 |
PLUG BRASS HEX HEAD 1/8" NPT |
|
22 |
1 |
120-060-005 |
GRIP3/8"HANDLEW/LOGO |
|
23 |
1 |
120-060-007 |
HANDLE304,607,B250&B500 |
|
24 |
1 |
120-062-002 |
PLUG4-WAYFOR3/8"HANDLE |
|
25 |
2 |
120-064-002 |
O-RING,2-214VITON |
|
26 |
1 |
120-064-003 |
O-RING,2-240 VITON |
|
27 |
1 |
120-064-030 |
O-RINGSQUAREVITON436 |
|
28 |
1 |
120-064-035 |
O-RING2-266 VITON |
|
29 |
1 |
120-065-002 |
TOWER3"607 |
|
30 |
1 |
120-070-004 |
SHROUD LOWER 607 |
|
31 |
1 |
120-071-004 |
SHROUD UPPER 607 |
|
32 |
1 |
120-072-004 |
SHROUD SERVICE PANEL 607 |
|
33 |
1 |
120-074-001 |
FAN SHROUD 607 |
|
34 |
1 |
120-076 |
KEY3/8"X3/8"X1" |
|
35 |
1 |
120-077-004 |
SHROUD SUPPORT PLATE 607 |
|
36 |
1 |
120-079-008 |
GUARDNVEOILPUMP607/887W/TAGMOUNT |
|
37 |
1 |
120-083-002 |
FANASSY607CW |
|
38 |
1 |
120-102 |
VALVE,DRAIN1/8"NPT |
|
39 |
1 |
120-105-607 |
NAME PLATE SS 607 |
|
40 |
1 |
120-107-001 |
SERIALTAGSS |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
41 |
1 |
120-220 |
THERMOMETER,50-400DEG,2"FACE |
|
42 |
1 |
120-310-003 |
COVERFLTRMACHINED607&B500 |
|
43 |
4 |
120-312-002 |
KNOB607/866FLTRCOVER5/16-18UN |
|
44 |
1 |
120-314-006 |
INTAKEFILTER B500 (4-3/16" OAL) |
|
45 |
1 |
120-320-006 |
HOUSINGFILTERB500 |
|
46 |
1 |
123-000-004 |
OILPUMP4PORTNVE |
|
47 |
8 |
123-013-001 |
WASHER3/8"SEALINGVITON |
|
48 |
4 |
123-408-014 |
BANJOBOLT1/8"BSPP |
|
49 |
3 |
190-014-359 |
GREASEFITTING,1/4-28UNF |
|
50 |
1 |
320-083-011 |
CAPOILPUMPFEEDLINEFITTING |
|
51 |
1 |
320-407-005z |
OILLINE-3SSTFEMALEJICTOBANJO6.75" |
|
52 |
1 |
320-407-006z |
OILLINE-3SST90DEGJICTOBANJO17.5" |
|
53 |
1 |
320-407-008z |
OILLINE-3SST90DEGJICTOBANJO24.00" |
|
54 |
1 |
320-407-035 |
OILLINE-3SST45DEGJICTOBANJO29.75" |
|
55 |
2 |
320-408-016 |
FITTINGSTR-3MJICX1/8MNPT |
|
56 |
2 |
320-408-017 |
FITTINGELBOW-3MJICX1/8MNPT |
|
57 |
1 |
320-409-003 |
P-CLIP,OILLINE1/4"X5/16 |
|
58 |
1 |
320-LF8 |
DRIVETAB |
|
59 |
1 |
320-R31 |
GASKET,OILPUMP |
|
60 |
1 |
412-020-001 |
WASHER,CUP4-WAY |
|
61 |
2 |
120-063-367 |
FLANGE4-WAY3"NPT |
|
62 |
2 |
120-064-001 |
O-RING,2-154VITON |
|
63 |
1 |
120-073-E |
FANCOVER607/866/887POWDERCOAT |
|
300 |
1 |
FW-1/4USS |
FLATWASHER,1/4USS |
|
301 |
2 |
HHCS-3/8-16UNCX1.75 |
HEXHEADCAPSCREW-3/8-16UNCX1.75 |
|
302 |
2 |
LW-3/8 |
LOCKWASHER,3/8 |
|
303 |
1 |
PLUG-1/4NPTSH |
SOCKETHEADPLUG-1/4NPT |
|
304 |
1 |
PLUG-1/8NPTSH |
SOCKETHEADPLUG-1/8NPT |
|
305 |
6 |
RVT3/32DX1/4LSS |
BLINDRIVET,3/32DIAX1/4GRIP, SS |
|
306 |
5 |
SFHCS-1/2-13UNCX 0.75 |
SERRATEDFLANGEHEXCAPSCREW-1/2-13UNCX0.75 |
|
307 |
1 |
SFHCS-3/8-16UNCX 0.75 |
SERRATEDFLANGEHEXCAPSCREW-3/8-16UNCX0.75 |
|
308 |
8 |
SFHCS-3/8-16UNCX 1.75 |
SERRATEDFLANGEHEXCAPSCREW-3/8-16UNCX1.75 |
|
309 |
6 |
SFHCS-3/8-16UNCX 2.25 |
SERRATEDFLANGEHEXCAPSCREW-3/8-16UNCX2.25 |
|
310 |
22 |
SFHCS-5/16-18UNC X1.00 |
SERRATEDFLANGEHEXCAPSCREW-5/16-18UNCX1.00 |
|
311 |
7 |
SHCS-1/4-20UNCX0.75 |
SOCKETHEADCAPSCREW-1/4-20UNCX0.75 |
|
312 |
1 |
SHCS-5_16-24UNFX 1.25 |
SHCS-5/16-24UNFX1.25 |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
313 |
4 |
SS-5/16-18UNCX1.75 |
HEXAGONSOCKETSETSCREW-5/16-18UNCX1.75SS |
|
314 |
16 |
TAPSCR-1/4-14X0.75 |
HEXHEADSELFTAPPINGSCREW1/4-14X0.75 |
|
315 |
8 |
FW-3/8 |
FLATWASHER, 3/8 |
|
316 |
8 |
HHCS-3/8-16UNCX0.75 |
HEXHEADCAPSCREW-3/8-16UNCX0.75 |
|
317 |
8 |
HHCS-5/16-18UNCX1.25 |
HEXHEADCAPSCREW-5/16-18UNCX1.25 |
|
318 |
8 |
LW-3/8 |
LOCKWASHER,3/8 |
|
319 |
8 |
LW-5/16 |
LOCKWASHER,5/16 |
|
500 |
1 |
310-LP5 |
HOSEBARB1/4"X1/8"NPTSTRAIGHT |
|
501 |
1 |
320-082-001 |
OILTANK,5QT,W/LOGO |
|
502 |
1 |
320-083-009 |
OILTANKFILTER,100MESH |
|
503 |
1 |
320-083-010 |
FILTERFITTING,OILTANK1/4NPT |
|
504 |
1 |
320-407-003 |
OILLINE,BLK1/4"ID 30R7 |
|
505 |
1 |
320-R102-6IN |
OILLINE,3/8"X1/4"IDX6" LG |
|
506 |
2 |
416-025-1WC |
CLAMP,WORM,.250"dia |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
41 |
1 |
120-220 |
THERMOMETER,50-400DEG,2"FACE |
|
42 |
1 |
120-310-003 |
COVERFLTRMACHINED607&B500 |
|
43 |
4 |
120-312-002 |
KNOB607/866FLTRCOVER5/16-18UN |
|
44 |
1 |
120-314-006 |
INTAKEFILTER B500 (4-3/16" OAL) |
|
45 |
1 |
120-320-006 |
HOUSINGFILTERB500 |
|
46 |
1 |
123-000-004 |
OILPUMP4PORTNVE |
|
47 |
8 |
123-013-001 |
WASHER3/8"SEALINGVITON |
|
48 |
4 |
123-408-014 |
BANJOBOLT1/8"BSPP |
|
49 |
3 |
190-014-359 |
GREASEFITTING,1/4-28UNF |
|
50 |
1 |
320-083-011 |
CAPOILPUMPFEEDLINEFITTING |
|
51 |
1 |
320-407-005z |
OILLINE-3SSTFEMALEJICTOBANJO6.75" |
|
52 |
1 |
320-407-006z |
OILLINE-3SST90DEGJICTOBANJO17.5" |
|
53 |
1 |
320-407-008z |
OILLINE-3SST90DEGJICTOBANJO24.00" |
|
54 |
1 |
320-407-035 |
OILLINE-3SST45DEGJICTOBANJO29.75" |
|
55 |
2 |
320-408-016 |
FITTINGSTR-3MJICX1/8MNPT |
|
56 |
2 |
320-408-017 |
FITTINGELBOW-3MJICX1/8MNPT |
|
57 |
1 |
320-409-003 |
P-CLIP,OILLINE1/4"X5/16 |
|
58 |
1 |
320-LF8 |
DRIVETAB |
|
59 |
1 |
320-R31 |
GASKET,OILPUMP |
|
60 |
1 |
412-020-001 |
WASHER,CUP4-WAY |
|
61 |
2 |
120-063-367 |
FLANGE4-WAY3"NPT |
|
62 |
2 |
120-064-001 |
O-RING,2-154VITON |
|
63 |
1 |
120-073-E |
FANCOVER607/866/887POWDERCOAT |
|
300 |
1 |
FW-1/4USS |
FLATWASHER,1/4USS |
|
301 |
2 |
HHCS-3/8-16UNCX1.75 |
HEXHEADCAPSCREW-3/8-16UNCX1.75 |
|
302 |
2 |
LW-3/8 |
LOCKWASHER,3/8 |
|
303 |
1 |
PLUG-1/4NPTSH |
SOCKETHEADPLUG-1/4NPT |
|
304 |
1 |
PLUG-1/8NPTSH |
SOCKETHEADPLUG-1/8NPT |
|
305 |
6 |
RVT3/32DX1/4LSS |
BLINDRIVET,3/32DIAX1/4GRIP, SS |
|
306 |
5 |
SFHCS-1/2-13UNCX 0.75 |
SERRATEDFLANGEHEXCAPSCREW-1/2-13UNCX0.75 |
|
307 |
1 |
SFHCS-3/8-16UNCX 0.75 |
SERRATEDFLANGEHEXCAPSCREW-3/8-16UNCX0.75 |
|
308 |
8 |
SFHCS-3/8-16UNCX 1.75 |
SERRATEDFLANGEHEXCAPSCREW-3/8-16UNCX1.75 |
|
309 |
6 |
SFHCS-3/8-16UNCX 2.25 |
SERRATEDFLANGEHEXCAPSCREW-3/8-16UNCX2.25 |
|
310 |
22 |
SFHCS-5/16-18UNC X1.00 |
SERRATEDFLANGEHEXCAPSCREW-5/16-18UNCX1.00 |
|
311 |
7 |
SHCS-1/4-20UNCX0.75 |
SOCKETHEADCAPSCREW-1/4-20UNCX0.75 |
|
312 |
1 |
SHCS-5_16-24UNFX 1.25 |
SHCS-5/16-24UNFX1.25 |
|

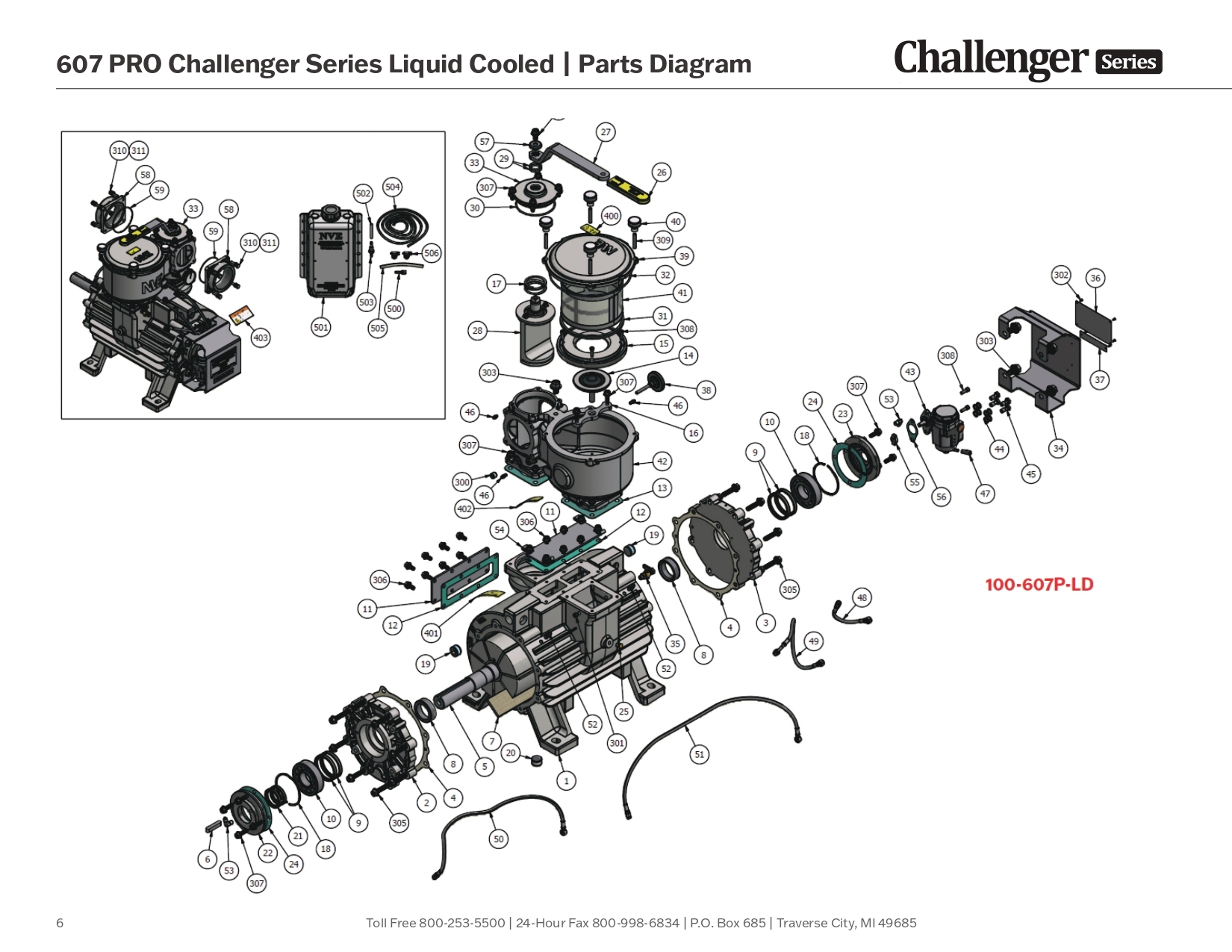

ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
1 |
1 |
120-001-367-L |
HOUSING607LIQ |
|
2 |
1 |
120-003-002 |
ENDPLATE 607 CW |
|
3 |
1 |
120-003-003 |
ENDPLATE 607 CCW |
|
4 |
2 |
120-004-367 |
GASKET ENDPLATE 607 |
|
5 |
1 |
120-005-367 |
ROTOR607 |
|
6 |
1 |
120-006 |
KEY3/8"X3/8"X2" |
|
7 |
7 |
120-007-367 |
VANE 607 |
|
8 |
2 |
120-009-367 |
SEAL SLEEVE 607 |
|
9 |
4 |
120-018-367 |
SEAL60X72X8VITONSGLLIP |
|
10 |
2 |
120-019-367 |
BEARINGNJ308C3 |
|
11 |
2 |
120-021-367 |
COVERPLATE,367WATERJACKET |
|
12 |
2 |
120-022-367 |
GASKET,367/506COVERPLATE |
|
13 |
2 |
120-039-367 |
GASKET607INTAKE/EXHAUST |
|
14 |
1 |
120-041-005 |
C.V.POPPIT-607&B500 |
|
15 |
1 |
120-041-006 |
C.V.SEAT-607&B500 |
|
16 |
1 |
120-041-007 |
C.V.RETAINER-607&B500 |
|
17 |
1 |
120-045 |
SPRING4-WAYFTRVALVE |
|
18 |
2 |
120-045-001 |
SPRINGWAVEWIRE3.50"DIA |
|
19 |
2 |
120-047 |
DRAINPLUG,3/4"NPT |
|
20 |
1 |
120-047-1 |
DRAINPLUG,3/4"NPTMAGNETIC |
|
21 |
2 |
120-053 |
SEAL40X52X7VITON |
|
22 |
1 |
120-054-001 |
BEARING COVER 607 |
|
23 |
1 |
120-054-002 |
BEARINGCOVER607OILPUMP |
|
24 |
2 |
120-055-367 |
GASKET,FRONTBEARINGCOVER |
|
25 |
1 |
120-058 |
PLUG BRASS HEX HEAD 1/8" NPT |
|
26 |
1 |
120-060-005 |
GRIP3/8"HANDLEW/LOGO |
|
27 |
1 |
120-060-007 |
HANDLE304,607,B250&B500 |
|
28 |
1 |
120-062-002 |
PLUG4-WAYFOR3/8"HANDLE |
|
29 |
2 |
120-064-002 |
O-RING,2-214VITON |
|
30 |
1 |
120-064-003 |
O-RING, 2-240 VITON |
|
31 |
1 |
120-064-030 |
O-RINGSQUAREVITON436 |
|
32 |
1 |
120-064-035 |
O-RING 2-266 VITON |
|
33 |
1 |
120-065-002 |
TOWER3"607 |
|
34 |
1 |
120-079-008 |
GUARDNVEOILPUMP607/887W/TAGMOUNT |
|
35 |
1 |
120-102 |
VALVE,DRAIN1/8"NPT |
|
36 |
1 |
120-105-607 |
NAME PLATE SS 607 |
|
37 |
1 |
120-107-001 |
SERIALTAGSS |
|
38 |
1 |
120-220 |
THERMOMETER,50-400DEG,2"FACE |
|
39 |
1 |
120-310-003 |
COVER FLTR MACHINED 607 & B500 |
|
40 |
4 |
120-312-002 |
KNOB607/866FLTRCOVER5/16-18UN |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
41 |
1 |
120-314-006 |
INTAKEFILTER B500 (4-3/16" OAL) |
|
42 |
1 |
120-320-006 |
HOUSINGFILTERB500 |
|
43 |
1 |
123-000-004 |
OIL PUMP 4 PORT NVE |
|
44 |
8 |
123-013-001 |
WASHER3/8"SEALINGVITON |
|
45 |
4 |
123-408-014 |
BANJOBOLT1/8"BSPP |
|
46 |
3 |
190-014-359 |
GREASEFITTING,1/4-28UNF |
|
47 |
1 |
320-083-011 |
CAP OIL PUMP FEED LINE FITTING |
|
48 |
1 |
320-407-005z |
OILLINE-3SSTFEMALEJICTOBANJO6.75" |
|
49 |
1 |
320-407-006z |
OILLINE-3SST90DEGJICTOBANJO17.5" |
|
50 |
1 |
320-407-007z |
OILLINE-3SSTFEMALEJICTOBANJO28.75" |
|
51 |
1 |
320-407-014 |
OILLINE-3SSTFEMALEJICTOBANJO32.25" |
|
52 |
2 |
320-408-016 |
FITTING STR-3MJIC X 1/8MNPT |
|
53 |
2 |
320-408-017 |
FITTINGELBOW-3MJICX1/8MNPT |
|
54 |
4 |
320-409-003 |
P-CLIP, OIL LINE1/4" X 5/16 |
|
55 |
1 |
320-LF8 |
DRIVETAB |
|
56 |
1 |
320-R31 |
GASKET,OILPUMP |
|
57 |
1 |
412-020-001 |
WASHER,CUP4-WAY |
|
58 |
2 |
120-063-367 |
FLANGE4-WAY3"NPT |
|
59 |
2 |
120-064-001 |
O-RING,2-154VITON |
|
300 |
1 |
PLUG-1/4NPTSH |
SOCKETHEADPLUG-1/4NPT |
|
301 |
1 |
PLUG-1/8NPTSH |
SOCKETHEADPLUG-1/8NPT |
|
302 |
6 |
RVT3/32DX1/4LSS |
BLIND RIVET, 3/32 DIA X 1/4 GRIP, SS |
|
303 |
5 |
SFHCS - 1/2-13 UNC X 0.75 |
SERRATEDFLANGEHEXCAPSCREW-1/2-13UNCX0.75 |
|
304 |
1 |
SFHCS-3/8-16UNCX0.75 |
SERRATEDFLANGEHEXCAPSCREW-3/8-16UNCX0.75 |
|
305 |
16 |
SFHCS-3/8-16UNCX1.75 |
SERRATEDFLANGEHEXCAPSCREW-3/8-16UNCX1.75 |
|
306 |
16 |
SFHCS-5/16-18UNCX 0.75 |
SERRATEDFLANGEHEXHEADSCREW-5/16-18UNCX 0.75 |
|
307 |
22 |
SFHCS-5/16-18UNCX 1.00 |
SERRATEDFLANGEHEXCAPSCREW-5/16-18UNCX 1.00 |
|
308 |
6 |
SHCS-1/4-20UNCX0.75 |
SOCKETHEADCAPSCREW-1/4-20UNCX0.75 |
|
309 |
4 |
SS - 5/16-18 UNC X 1.75 |
HEXAGONSOCKETSETSCREW-5/16-18UNCX1.75SS |
|
310 |
8 |
HHCS -5/16-18UNC X 1.25 |
HEXHEADCAPSCREW-5/16-18UNCX1.25 |
|
311 |
8 |
LW-5/16 |
LOCK WASHER, 5/16 |
|
500 |
1 |
310-LP5 |
HOSEBARB1/4"X1/8"NPTSTRAIGHT |
|
501 |
1 |
320-082-001 |
OILTANK,5QT,W/LOGO |
|
502 |
1 |
320-083-009 |
OILTANKFILTER,100MESH |
|
503 |
1 |
320-083-010 |
FILTERFITTING,OILTANK1/4NPT |
|
504 |
1 |
320-407-003 |
OIL LINE, BLK 1/4"ID 30R7 |
|
505 |
1 |
320-R102-6IN |
OIL LINE, 3/8" X 1/4" ID X 6" LG |
|
506 |
2 |
416-025-1WC |
CLAMP,WORM,.250"dia |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
1 |
1 |
120-001-607A |
HOUSING607SIDEMANIFOLD |
|
2 |
1 |
120-003-002 |
ENDPLATE 607 CW |
|
3 |
1 |
120-003-003 |
ENDPLATE 607 CCW |
|
4 |
2 |
120-004-367 |
GASKET ENDPLATE 607 |
|
5 |
1 |
120-005-367 |
ROTOR607 |
|
6 |
1 |
120-006 |
KEY3/8"X3/8"X2" |
|
7 |
7 |
120-007-367 |
VANE 607 |
|
8 |
2 |
120-009-367 |
SEAL SLEEVE 607 |
|
9 |
4 |
120-018-367 |
SEAL60X72X8VITONSGLLIP |
|
10 |
2 |
120-019-367 |
BEARINGNJ308C3 |
|
11 |
2 |
120-039-367 |
GASKET607INTAKE/EXHAUST |
|
12 |
1 |
120-041-005 |
C.V.POPPIT-607&B500 |
|
13 |
1 |
120-041-006 |
C.V.SEAT-607&B500 |
|
14 |
1 |
120-041-007 |
C.V.RETAINER-607&B500 |
|
15 |
1 |
120-045 |
SPRING4-WAYFTRVALVE |
|
16 |
2 |
120-045-001 |
SPRINGWAVEWIRE3.50"DIA |
|
17 |
2 |
120-053 |
SEAL40X52X7VITON |
|
18 |
1 |
120-054-001 |
BEARING COVER 607 |
|
19 |
1 |
120-054-002 |
BEARINGCOVER607OILPUMP |
|
20 |
2 |
120-055-367 |
GASKET,FRONTBEARINGCOVER |
|
21 |
1 |
120-058 |
PLUG BRASS HEX HEAD 1/8" NPT |
|
22 |
1 |
120-060-005 |
GRIP3/8"HANDLEW/LOGO |
|
23 |
1 |
120-060-007 |
HANDLE304,607,B250&B500 |
|
24 |
1 |
120-062-002 |
PLUG4-WAYFOR3/8"HANDLE |
|
25 |
2 |
120-064-002 |
O-RING,2-214VITON |
|
26 |
1 |
120-064-003 |
O-RING, 2-240 VITON |
|
27 |
1 |
120-064-030 |
O-RINGSQUAREVITON436 |
|
28 |
1 |
120-064-035 |
O-RING 2-266 VITON |
|
29 |
1 |
120-065-002 |
TOWER3"607 |
|
30 |
1 |
120-070-006 |
SHROUDLOWER607SIDEVALVE |
|
31 |
1 |
120-071-006 |
SHROUD UPPER 607 SIDE VALVE |
|
32 |
1 |
120-072-006 |
SHROUD SERVICE PANEL 607 SIDE VALVE |
|
33 |
1 |
120-074-001 |
FAN SHROUD 607 |
|
34 |
1 |
120-076 |
KEY3/8"X3/8"X1" |
|
35 |
2 |
120-077-004 |
SHROUD SUPPORT PLATE 607 |
|
36 |
1 |
120-079-008 |
GUARDNVEOILPUMP607/887W/TAGMOUNT |
|
37 |
1 |
120-083-002 |
FANASSY607CW |
|
38 |
1 |
120-102 |
VALVE,DRAIN1/8"NPT |
|
39 |
1 |
120-105-607 |
NAME PLATE SS 607 |
|
40 |
1 |
120-107-001 |
SERIALTAGSS |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
41 |
1 |
120-220 |
THERMOMETER,50-400DEG,2"FACE |
|
42 |
1 |
120-310-003 |
COVER FLTR MACHINED 607 & B500 |
|
43 |
4 |
120-312-002 |
KNOB607/866FLTRCOVER5/16-18UN |
|
44 |
1 |
120-314-006 |
INTAKEFILTER B500 (4-3/16" OAL) |
|
45 |
1 |
120-320-006 |
HOUSINGFILTERB500 |
|
46 |
1 |
120-351-003 |
LIFTEYESHOULDERED3/8-16X5/8PLATED |
|
47 |
1 |
123-000-004 |
OIL PUMP 4 PORT NVE |
|
48 |
8 |
123-013-001 |
WASHER3/8"SEALINGVITON |
|
49 |
4 |
123-408-014 |
BANJOBOLT1/8"BSPP |
|
50 |
3 |
190-014-359 |
GREASEFITTING,1/4-28UNF |
|
51 |
1 |
320-083-011 |
CAP OIL PUMP FEED LINE FITTING |
|
52 |
1 |
320-407-005z |
OILLINE-3SSTFEMALEJICTOBANJO6.75" |
|
53 |
1 |
320-407-006z |
OILLINE-3SST90DEGJICTOBANJO17.5" |
|
54 |
1 |
320-407-008z |
OILLINE-3SST90DEGJICTOBANJO24.00" |
|
55 |
1 |
320-407-035 |
OILLINE-3SST45DEGJICTOBANJO29.75" |
|
56 |
2 |
320-408-016 |
FITTING STR-3MJIC X 1/8MNPT |
|
57 |
2 |
320-408-017 |
FITTINGELBOW-3MJICX1/8MNPT |
|
58 |
1 |
320-409-003 |
P-CLIP, OIL LINE1/4" X 5/16 |
|
59 |
1 |
320-LF8 |
DRIVETAB |
|
60 |
1 |
320-R31 |
GASKET,OILPUMP |
|
61 |
1 |
412-020-001 |
WASHER,CUP4-WAY |
|
62 |
2 |
120-063-367 |
FLANGE4-WAY3"NPT |
|
63 |
2 |
120-064-001 |
O-RING,2-154VITON |
|
64 |
1 |
120-073-E |
FANCOVER607/866/887POWDERCOAT |
|
65 |
1 |
320-081 |
REMOTE OIL TANK KIT |
|
300 |
1 |
FW-1/4 |
FLATWASHER, 1/4 |
|
301 |
1 |
HHCS-1/4-20UNC-0.50 |
HEXHEADCAPSCREW-1/4-20UNC-0.50 |
|
302 |
2 |
HHCS-3/8-16UNCX1.75 |
HEXHEADCAPSCREW-3/8-16UNCX1.75 |
|
303 |
2 |
LW-3/8 |
LOCK WASHER, 3/8 |
|
304 |
1 |
PLUG-1/4NPTSH |
SOCKETHEADPLUG-1/4NPT |
|
305 |
1 |
PLUG-1/8NPTSH |
SOCKETHEADPLUG-1/8NPT |
|
306 |
6 |
RVT3/32DX1/4LSS |
BLIND RIVET, 3/32 DIA X 1/4 GRIP, SS |
|
307 |
5 |
SFHCS - 1/2-13 UNC X 0.75 |
SERRATEDFLANGEHEXCAPSCREW-1/2-13UNCX0.75 |
|
308 |
1 |
SFHCS-3/8-16UNCX0.75 |
SERRATEDFLANGEHEXCAPSCREW-3/8-16UNCX0.75 |
|
309 |
8 |
SFHCS-3/8-16UNCX1.75 |
SERRATEDFLANGEHEXCAPSCREW-3/8-16UNCX1.75 |
|
310 |
6 |
SFHCS-3/8-16UNCX2.25 |
SERRATEDFLANGEHEXCAPSCREW-3/8-16UNCX2.25 |
|
311 |
22 |
SFHCS-5/16-18UNC X 1.00 |
SERRATEDFLANGEHEXCAPSCREW-5/16-18UNCX 1.00 |
|
312 |
6 |
SHCS-1/4-20UNCX0.75 |
SOCKETHEADCAPSCREW-1/4-20UNCX0.75 |
|
313 |
1 |
SHCS - 5_16-24 UNF X 1.25 |
SHCS-5/16-24UNFX1.25 |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
314 |
4 |
SS - 5/16-18 UNC X 1.75 |
HEXAGONSOCKETSETSCREW-5/16-18UNCX1.75SS |
|
315 |
15 |
TAPSCR - 1/4-14 X 0.75 |
HEXHEADSELFTAPPINGSCREW1/4-14X0.75 |
|
316 |
8 |
FW-3/8 |
FLATWASHER, 3/8 |
|
317 |
8 |
HHCS-3/8-16UNCX0.75 |
HEXHEADCAPSCREW-3/8-16UNCX0.75 |
|
318 |
8 |
HHCS-5/16-18UNC X 1.25 |
HEXHEADCAPSCREW-5/16-18UNCX1.25 |
|
319 |
8 |
LW-3/8 |
LOCK WASHER, 3/8 |
|
320 |
8 |
LW-5/16 |
LOCK WASHER, 5/16 |
|
500 |
1 |
310-LP5 |
HOSEBARB1/4"X1/8"NPTSTRAIGHT |
|
501 |
1 |
320-082-001 |
OILTANK,5QT,W/LOGO |
|
502 |
1 |
320-083-009 |
OILTANKFILTER,100MESH |
|
503 |
1 |
320-083-010 |
FILTERFITTING,OILTANK1/4NPT |
|
504 |
1 |
320-407-003 |
OIL LINE,BLK 1/4"ID 30R7 |
|
505 |
1 |
320-R102-6IN |
OIL LINE, 3/8" X 1/4" ID X 6" LG |
|
506 |
2 |
416-025-1WC |
CLAMP,WORM,.250"dia |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
1 |
1 |
100-607P-FD |
CHALLENGER 607 PRO CW FAN |
|
2 |
1 |
120-006-184 |
KEY .25" X .25" X 1.875" |
|
3 |
2 |
120-063-367 |
FLANGE4-WAY3"NPT |
|
4 |
2 |
120-064-001 |
O-RING,2-154VITON |
|
5 |
1 |
120-073-ET |
FANGUARD607PTRIMMED |
|
6 |
1 |
280-350-017 |
PUMP STAND, 607P MUFFLER PACK |
|
7 |
1 |
280-401-003 |
607P GEARBOX MOUNT WELDED |
|
8 |
1 |
320-081 |
REMOTE OIL TANK KIT |
|
9 |
1 |
422-400-1X |
GEARBOX 400SERIES1:1RATIO1-1/4" |
|
10 |
1 |
424-200-125 |
COUPLERHUBE2011/4"BORE1/4"KEY |
|
11 |
1 |
424-200-150 |
COUPLERHUBE2011/2"BORE |
|
12 |
1 |
424-200-E20 |
COUPLER FLEX ELEMENT E20 |
|
13 |
1 |
864-015 |
KNURLEDCUPPOINTSETSCREW3/8"-16UNCX0.375" |
|
14 |
1 |
864-016 |
FLATTIPSETSCREW3/8"-16UNCX0.375" |
|
15 |
1 |
864-017 |
KNURLEDCUPPOINTSETSCREW1/4"-20UNCX0.4375" |
|
16 |
1 |
864-018 |
FLATTIPSETSCREW1/4"-20UNCX0.375" |
|
300 |
4 |
FW-1/2 |
FLATWASHER, 1/2 |
|
301 |
8 |
FW-3/8 |
FLATWASHER, 3/8 |
|
302 |
8 |
FW-5/8 |
FLATWASHER, 5/8 |
|
303 |
4 |
HHCS - 1/2-13 UNC X 1.25 |
HEXHEADCAPSCREW-1/2-13UNCX1.25 |
|
304 |
2 |
HHCS-3/8-16UNCX0.75 |
HEXHEADCAPSCREW-3/8-16UNCX0.75 |
|
305 |
6 |
HHCS-3/8-16UNCX1.25 |
HEXHEADCAPSCREW-3/8-16UNCX1.25 |
|
306 |
4 |
HHCS-5/8-11UNC X 2.50 |
HEXHEADCAPSCREW-5/8-11UNCX2.50 |
|
307 |
8 |
HHCS-5/16-18UNC X 1.25 |
HEXHEADCAPSCREW-5/16-18UNCX1.25 |
|
308 |
4 |
LW-1/2 |
LOCK WASHER, 1/2 |
|
309 |
8 |
LW-3/8 |
LOCK WASHER, 3/8 |
|
310 |
8 |
LW-5/16 |
LOCK WASHER, 5/16 |
|
311 |
4 |
NYLOCK NUT - 5/8 UNC |
NYLOCK NUT - 5/8 UNC |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
1 |
1 |
100-607AP-FS |
CHALLENGER 607 PRO SV CCW FAN |
|
2 |
2 |
120-063-367 |
FLANGE4-WAY3"NPT |
|
3 |
2 |
120-064-001 |
O-RING,2-154VITON |
|
4 |
1 |
120-400-001 |
HYDRAULICADAPTER607/866SAE |
|
5 |
1 |
320-081 |
REMOTE OIL TANK KIT |
|
6 |
1 |
424-150-125-HYD |
COUPLERFLANGE,LOVEJOY1.25"X5/16"KEYWAY |
|
7 |
1 |
424-150-150 |
COUPLERFLANGE,LOVEJOY1.50"X3/8KEY |
|
8 |
1 |
424-150-S |
SPIDER,LOVEJOY150,EPDM |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
300 |
8 |
HHCS-3/8-16UNCX1.75 |
HEXHEADCAPSCREW-3/8-16UNCX1.75 |
|
301 |
8 |
HHCS -5/16-18UNC X 1.25 |
HEXHEADCAPSCREW-5/16-18UNCX1.25 |
|
302 |
8 |
LW-3/8 |
LOCK WASHER, 3/8 |
|
303 |
8 |
LW-5/16 |
LOCK WASHER, 5/16 |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
1 |
1 |
100-607P-FD |
CHALLENGER 607 PRO CW FAN |
|
2 |
1 |
120-006-184 |
KEY .25" X .25" X 1.875" |
|
3 |
1 |
120-063-367 |
FLANGE4-WAY3"NPT |
|
4 |
1 |
120-064-001 |
O-RING,2-154VITON |
|
5 |
1 |
120-064-016 |
O-RING, 2-342 VITON |
|
6 |
1 |
120-073-ET |
FANGUARD607PTRIMMED |
|
7 |
1 |
212-100-3NPT-4 |
OCM 10" DIA X 25.1875" NPT W/ HB |
|
8 |
1 |
280-350-017 |
PUMP STAND, 607P MUFFLER PACK |
|
9 |
1 |
280-355-193 |
OCM BRACKET 607 MUF FD |
|
10 |
1 |
280-355-368 |
FLANGE 3" ADJ ELBOW NARROW |
|
11 |
1 |
280-401-003 |
607P GEARBOX MOUNT WELDED |
|
12 |
1 |
288-100 |
DRAINVALVEBRASS1"IPS |
|
13 |
1 |
320-081 |
REMOTE OIL TANK KIT |
|
14 |
1 |
422-400-1X |
GEARBOX 400SERIES1:1RATIO1-1/4" |
|
15 |
1 |
424-200-125 |
COUPLERHUBE2011/4"BORE1/4"KEY |
|
16 |
1 |
424-200-150 |
COUPLERHUBE2011/2"BORE |
|
17 |
1 |
424-200-E20 |
COUPLER FLEX ELEMENT E20 |
|
18 |
1 |
426-300-TAR-0350 |
HOSE3"DX3.5"L |
|
19 |
2 |
426-3875-TBC |
CLAMP,T-BOLT3.875" |
|
20 |
1 |
428-100-2C |
NIPPLE,CLOSE,1",BLK |
|
21 |
1 |
803-063-015 |
POWDERCOATELBOW(803-063-005REPALCEMENT) |
|
22 |
1 |
864-015 |
KNURLEDCUPPOINTSETSCREW3/8"-16UNCX0.375" |
|
23 |
1 |
864-016 |
FLATTIPSETSCREW3/8"-16UNCX0.375" |
|
24 |
1 |
864-017 |
KNURLEDCUPPOINTSETSCREW1/4"-20UNCX0.4375" |
|
25 |
1 |
864-018 |
FLATTIPSETSCREW1/4"-20UNCX0.375" |
|
300 |
4 |
FW-1/2 |
FLATWASHER, 1/2 |
|
301 |
28 |
FW-3/8 |
FLATWASHER, 3/8 |
|
302 |
8 |
FW-5/8 |
FLATWASHER, 5/8 |
|
303 |
4 |
HHCS - 1/2-13 UNC X 1.25 |
HEXHEADCAPSCREW-1/2-13UNCX1.25 |
|
304 |
2 |
HHCS-3/8-16UNCX0.75 |
HEXHEADCAPSCREW-3/8-16UNCX0.75 |
|
305 |
6 |
HHCS-3/8-16UNCX1.25 |
HEXHEADCAPSCREW-3/8-16UNCX1.25 |
|
306 |
10 |
HHCS-3/8-16UNCX1.50 |
HEXHEADCAPSCREW-3/8-16UNCX1.50 |
|
307 |
4 |
HHCS-5/8-11UNC X 2.50 |
HEXHEADCAPSCREW-5/8-11UNCX2.50 |
|
308 |
4 |
HHCS-5/16-18UNC X 1.25 |
HEXHEADCAPSCREW-5/16-18UNCX1.25 |
|
309 |
4 |
HHCS-5/16-18UNC X 1.50 |
HEXHEADCAPSCREW-5/16-18UNCX1.50 |
|
310 |
4 |
LW-1/2 |
LOCK WASHER, 1/2 |
|
311 |
8 |
LW-3/8 |
LOCK WASHER, 3/8 |
|
312 |
8 |
LW-5/16 |
LOCK WASHER, 5/16 |
|
313 |
10 |
NYLOCK NUT - 3/8 UNC |
NYLOCK NUT - 3/8 UNC |
|
314 |
4 |
NYLOCK NUT - 5/8 UNC |
NYLOCK NUT - 5/8 UNC |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
1 |
1 |
100-607P-FD |
CHALLENGER 607 PRO CW FAN |
|
2 |
1 |
120-006-184 |
KEY .25" X .25" X 1.875" |
|
3 |
2 |
120-064-016 |
O-RING, 2-342 VITON |
|
4 |
1 |
120-073-ET |
FANGUARD607PTRIMMED |
|
5 |
1 |
212-120-3FNPT-1 |
OCM12"DIA3"FNPTWITHHBRHMOUNT |
|
6 |
1 |
212-800-2FPT |
OCM8"DIA2"FPTCARBON |
|
7 |
1 |
218-001-3R |
MT BOLT ON 3" RH ALU |
|
8 |
1 |
280-355-090 |
PUMP STAND |
|
9 |
2 |
280-355-368 |
FLANGE 3" ADJ ELBOW NARROW |
|
10 |
1 |
280-401-003 |
607P GEARBOX MOUNT WELDED |
|
11 |
1 |
280-510-025 |
ELBOW 2" SRE TO 2" HB W/BRKT (RH) |
|
12 |
3 |
288-100 |
DRAINVALVEBRASS1"IPS |
|
13 |
1 |
320-081 |
REMOTE OIL TANK KIT |
|
14 |
1 |
364-306-2 |
PRESSURE RELIEF, 2" |
|
15 |
1 |
366-150 |
VACUUMRELIEF,11/2"NPT |
|
16 |
1 |
408-250-LF |
GAUGE,2.5"VAC/PRESS,LIQBOTTOMCONN |
|
17 |
1 |
422-400-1X |
GEARBOX 400SERIES1:1RATIO 1-1/4" |
|
18 |
1 |
424-200-125 |
COUPLERHUBE2011/4"BORE1/4"KEY |
|
19 |
1 |
424-200-150 |
COUPLERHUBE2011/2"BORE |
|
20 |
1 |
424-200-E20 |
COUPLER FLEX ELEMENT E20 |
|
21 |
1 |
426-200-TAR-0450 |
HOSE2"DX4.5"L |
|
22 |
1 |
426-200-TAR-1000 |
HOSE2"DX10.0"L |
|
23 |
1 |
426-200-TAR-1500 |
HOSE 2"D X 15.0"L |
|
24 |
6 |
426-225-TBC |
CLAMP T-BOLT FOR 2" HOSE |
|
25 |
1 |
426-300-TAR-0350 |
HOSE3"DX3.5"L |
|
26 |
1 |
426-300-TAR-1150 |
HOSE 3"D X 11.5" L |
|
27 |
4 |
426-3875-TBC |
CLAMP,T-BOLT3.875" |
|
28 |
1 |
428-2X1-CG |
BUSHING2"MPTX1"FPTGALVANIZED |
|
29 |
2 |
428-100-2G |
NIPPLE CLOSE MNPT 1" GALV |
|
30 |
1 |
803-063-013 |
ELBOW90DEG2"CASTE-COAT |
|
31 |
1 |
803-063-015 |
POWDERCOATELBOW(803-063-005REPALCEMENT) |
|
32 |
1 |
803-063-016 |
POWDERCOATELBOW(803-063-006REPALCEMENT) |
|
33 |
1 |
864-015 |
KNURLEDCUPPOINTSETSCREW3/8"-16UNCX0.375" |
|
34 |
1 |
864-016 |
FLATTIPSETSCREW3/8"-16UNCX0.375" |
|
35 |
1 |
864-017 |
KNURLEDCUPPOINTSETSCREW1/4"-20UNCX0.4375" |
|
36 |
1 |
864-018 |
FLATTIPSETSCREW1/4"-20UNCX0.375" |
|
300 |
4 |
FW-1/2 |
FLATWASHER, 1/2 |
|
301 |
46 |
FW-3/8 |
FLATWASHER, 3/8 |
|
302 |
8 |
FW-5/8 |
FLATWASHER, 5/8 |
|
303 |
4 |
HHCS-1/2-13UNC X 1.25 |
HEXHEADCAPSCREW-1/2-13UNCX1.25 |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
304 |
2 |
HHCS-3/8-16UNCX0.75 |
HEXHEADCAPSCREW-3/8-16UNCX0.75 |
|
305 |
6 |
HHCS-3/8-16UNCX1.25 |
HEXHEADCAPSCREW-3/8-16UNCX1.25 |
|
306 |
19 |
HHCS-3/8-16UNCX1.50 |
HEXHEADCAPSCREW-3/8-16UNCX1.50 |
|
307 |
4 |
HHCS -5/8-11UNC X 2.50 |
HEXHEADCAPSCREW-5/8-11UNCX2.50 |
|
308 |
8 |
HHCS -5/16-18UNC X 1.50 |
HEXHEADCAPSCREW-5/16-18UNCX1.50 |
|
309 |
4 |
LW-1/2 |
LOCK WASHER, 1/2 |
|
310 |
8 |
LW-3/8 |
LOCK WASHER, 3/8 |
|
311 |
8 |
LW-5/16 |
LOCK WASHER, 5/16 |
|
312 |
19 |
NYLOCK NUT - 3/8 UNC |
NYLOCK NUT - 3/8 UNC |
|
313 |
4 |
NYLOCK NUT - 5/8 UNC |
NYLOCK NUT - 5/8 UNC |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|

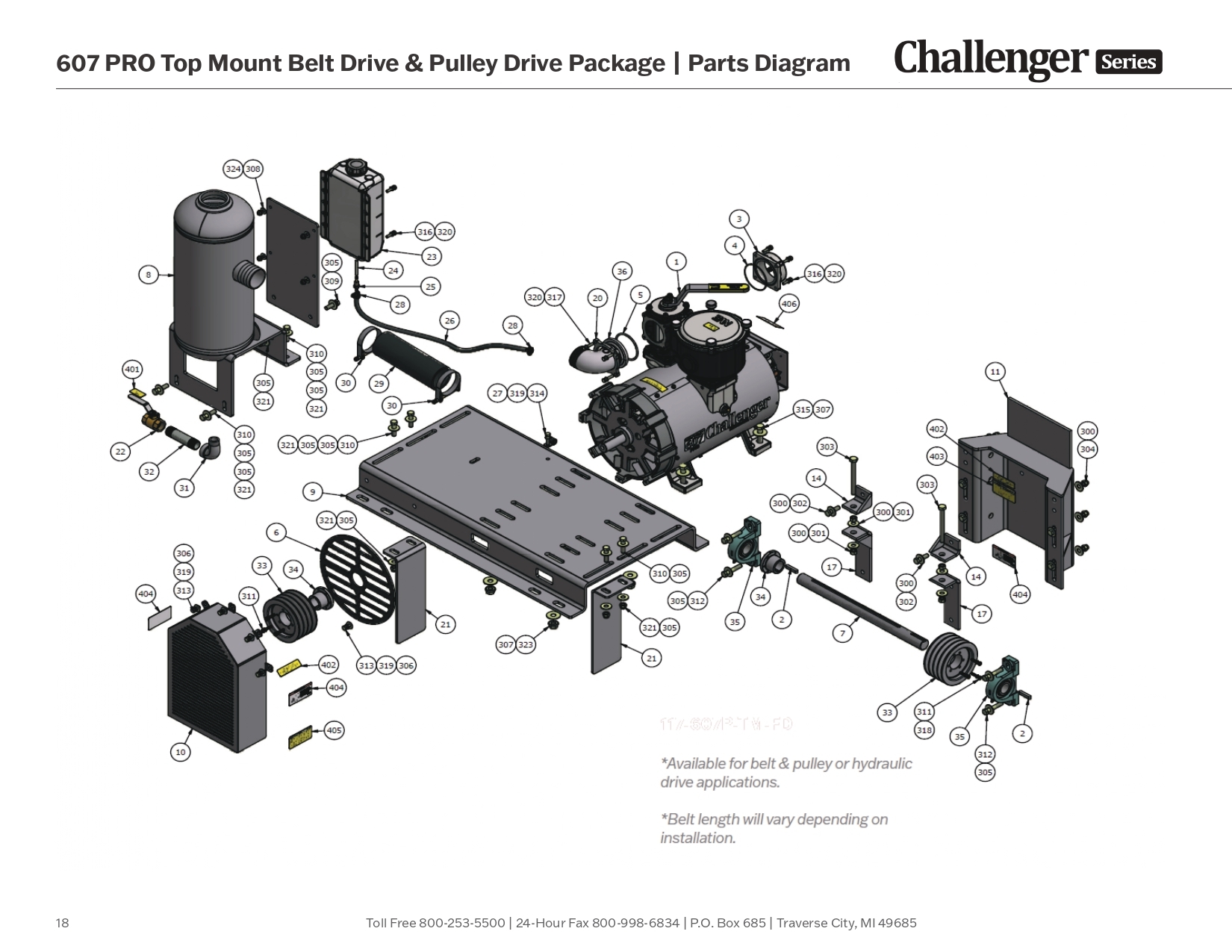

1 |
1 |
100-607P-FD |
CHALLENGER 607 PRO CW FAN |
|
2 |
2 |
120-006 |
KEY3/8"X3/8"X2" |
|
3 |
1 |
120-063-367 |
FLANGE4-WAY3"NPT |
|
4 |
1 |
120-064-001 |
O-RING,2-154VITON |
|
5 |
1 |
120-064-016 |
O-RING, 2-342 VITON |
|
6 |
1 |
120-073-E |
FANCOVER607/866/887POWDERCOAT |
|
7 |
1 |
126-367-TM3 |
JACKSHAFT607TM22IN |
|
8 |
1 |
212-100-3NPT-5 |
OCM10"DIAX17.5"NPTW/HB(TM) |
|
9 |
1 |
280-355-006 |
TM PACKAGE BASE |
|
10 |
1 |
280-355-007 |
TM PACKAGE, UPPER BELT GUARD |
|
11 |
1 |
280-355-046-1 |
608TMJACKSHAFTASSY(STYLEB)- 1 |
|
12 |
1 |
280-355-046-2 |
608TMJACKSHAFTASSY(STYLEB)- 2 |
|
13 |
2 |
280-355-046-3 |
608TMJACKSHAFTASSY(STYLEB)- 3 |
|
14 |
2 |
280-355-046-4 |
608TMJACKSHAFTASSY(STYLEB)- 4 |
|
15 |
2 |
280-355-046-5 |
608TMJACKSHAFTASSY(STYLEB)- 5 |
|
16 |
2 |
280-355-046-6 |
608TMJACKSHAFTASSY(STYLEB)- 6 |
|
17 |
2 |
280-355-046-7 |
608TMJACKSHAFTASSY(STYLEB)- 7 |
|
18 |
2 |
280-500-WNC |
1/2"-13 UNC WELD NUT |
|
19 |
1 |
280-355-183 |
OILTANKMOUNT |
|
20 |
1 |
280-355-368 |
FLANGE 3" ADJ ELBOW NARROW |
|
21 |
2 |
280-367-TM7 |
LMOUNTINGBRACKET,367TM |
|
22 |
1 |
288-100 |
DRAINVALVEBRASS1"IPS |
|
23 |
1 |
320-082-001 |
OILTANK,5QT,W/LOGO |
|
24 |
1 |
320-083-009 |
OILTANKFILTER,100MESH |
|
25 |
1 |
320-083-010 |
FILTERFITTING,OILTANK1/4NPT |
|
26 |
1 |
320-407-003 |
OIL LINEBLK 1/4"ID30R7 |
|
27 |
1 |
320-409-004 |
P-CLIP.562CLAMPDIA.406HOLEDIA.GALV.VINYL |
|
28 |
2 |
416-025-1WC |
CLAMP,WORM,.250"dia |
|
29 |
1 |
426-300-TAR-1050 |
HOSE 3"D X 10.5"L |
|
30 |
2 |
426-3875-TBC |
CLAMP,T-BOLT3.875" |
|
31 |
1 |
428-100-E |
STREETELBOW90DEG.1"NPT |
|
32 |
1 |
428-105-2G |
NIPPLE MNPT 2"X3" GALV NIPPLE |
|
33 |
2 |
430-367-TM1 |
6"SHEAVE,4BELT,SDSTYLEBUSHING |
|
34 |
2 |
430-367-TM2 |
BUSHING,367TM,SDX1.5 |
|
35 |
2 |
430-400-004 |
BEARING1.5PILLOWBLOCK |
|
36 |
1 |
803-063-015 |
POWDERCOATELBOW(803-063-005REPALCEMENT) |
|
300 |
16 |
FW-1/2 |
FLATWASHER, 1/2 |
|
301 |
4 |
HEX NUT - 1_2 UNC |
HEX NUT - 1_2 UNC |
|
302 |
6 |
HHCS-1/2-13UNC X 1.75 |
HEXHEADCAPSCREW-1/2-13UNCX1.75 |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
303 |
2 |
HHCS - 1/2-13 UNC X 5.50 FT |
HEXHEADCAPSCREW-1/2-13UNCX5.50FULL THREAD |
|
304 |
6 |
NYLOCKNUT-1/2UNC |
NYLOCKNUT-1/2UNC |
|
305 |
28 |
FW-1/2 |
FLATWASHER, 1/2 |
|
306 |
7 |
FW-3/8 |
*Varies* |
|
307 |
8 |
FW-5/8 |
FLATWASHER, 5/8 |
|
308 |
4 |
FW-5/16 |
FLATWASHER,5/16 |
|
309 |
2 |
HHCS - 1/2-13 UNC X 1.75 |
HEXHEADCAPSCREW-1/2-13UNCX1.75 |
|
310 |
8 |
HHCS - 1/2-13 UNC X 2.00 |
HEXHEADCAPSCREW-1/2-13UNCX2.00 |
|
311 |
6 |
HHCS - 1/4-20 UNC X 1.375 NP |
HEXHEADCAPSCREW-1/4-20UNCX1.375NO PLATING |
|
312 |
4 |
HHCS - 1_2-13 UNC X 2.75 |
HEXHEADCAPSCREW-1/2-13UNCx2.75 |
|
313 |
6 |
HHCS-3/8-16UNCX1.00 |
HEXHEADCAPSCREW-3/8-16UNCX1.00 |
|
314 |
1 |
HHCS-3/8-16UNCX1.50 |
HEXHEADCAPSCREW-3/8-16UNCX1.50 |
|
315 |
4 |
HHCS -5/8-11UNC X 2.50 |
HEXHEADCAPSCREW-5/8-11UNCX2.50 |
|
316 |
8 |
HHCS -5/16-18UNC X 1.25 |
HEXHEADCAPSCREW-5/16-18UNCX1.25 |
|
317 |
4 |
HHCS -5/16-18UNC X 1.50 |
HEXHEADCAPSCREW-5/16-18UNCX1.50 |
|
318 |
6 |
LW-1/4NP(EXTERNAL) |
LOCKWASHER,1/4NOPLATING(SUPPLIEDW/ BUSHING) |
|
319 |
7 |
LW-3/8 |
LOCK WASHER, 3/8 |
|
320 |
12 |
LW-5/16 |
LOCK WASHER, 5/16 |
|
321 |
14 |
NYLOCKNUT-1/2UNC |
NYLOCKNUT-1/2UNC |
|
322 |
1 |
NYLOCK NUT - 3/8 UNC |
NYLOCK NUT - 3/8 UNC |
|
323 |
4 |
NYLOCK NUT - 5/8 UNC |
NYLOCK NUT - 5/8 UNC |
|
324 |
4 |
NYLOCKNUT-5/16UNC |
NYLOCKNUT-5/16UNC |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
1 |
1 |
100-607P-FS |
CHALLENGER 607 PRO CCW FAN |
|
2 |
1 |
120-006 |
KEY3/8"X3/8"X2" |
|
3 |
2 |
120-049-003 |
BUSHINGBRASS3/8"MNPTX1/4"FNPT |
|
4 |
1 |
120-063-367 |
FLANGE4-WAY3"NPT |
|
5 |
1 |
120-064-001 |
O-RING,2-154VITON |
|
6 |
1 |
120-064-016 |
O-RING, 2-342 VITON |
|
7 |
2 |
120-078-005 |
GROMMET 0.5 I.D. 0.8125 G.D. 0.25 G.W. |
|
8 |
1 |
212-100-3NPT-4 |
OCM 10" DIA X 25.1875" NPT W/ HB |
|
9 |
1 |
280-355-368 |
FLANGE 3" ADJ ELBOW NARROW |
|
10 |
1 |
280-460-027 |
FUEL TANK 22 GAL ALUM - W/ SENDER & SAFETY VENT |
|
11 |
2 |
280-460-027-8 |
FUELTANKSTRAP280-460-027 |
|
12 |
1 |
280-EDR-002 |
BATTERY HOLD DOWN |
|
13 |
1 |
280-EDR-607-1 |
|
|
14 |
4 |
280-EDR-607-3 |
607EDR1MOUNTINGFOOTASSEMBLY |
|
15 |
1 |
280-EDR-607-4Pre |
|
|
16 |
1 |
280-EDR-607-5-1 |
|
|
17 |
1 |
280-EDR-607-5-2 |
|
|
18 |
1 |
280-EDR-607-5-3 |
|
|
19 |
1 |
280-EDR-607-14 |
EDR BATTERY CRADLE |
|
20 |
2 |
280-EDR-607-37 |
|
|
21 |
1 |
288-100 |
DRAINVALVEBRASS1"IPS |
|
22 |
1 |
310-LP4 |
HOSEBARB1/4"NPTX1/4"90DEGELBOWBRASS |
|
23 |
1 |
310-LP5 |
HOSEBARB1/4"X1/8"NPTSTRAIGHT |
|
24 |
2 |
310-LP16 |
HOSEBARB5/16"X1/4"MNPT90DEGELBOWBRASS |
|
25 |
1 |
320-082-001 |
OILTANK,5QT,W/LOGO |
|
26 |
1 |
320-082-003Z |
FLUSH TANK ASSY HDPE 1QT |
|
27 |
1 |
320-083-009 |
OILTANKFILTER,100MESH |
|
28 |
1 |
320-083-010 |
FILTERFITTING,OILTANK1/4NPT |
|
29 |
1 |
320-409-004 |
P-CLIP.562CLAMPDIA.406HOLEDIA.GALV.VINYL |
|
30 |
6 |
320-409-010 |
P-CLIP3/4"MEDDUTYVINYLLINED0.531"HOLE |
|
31 |
2 |
416-025-1WC |
CLAMP,WORM,.250"dia |
|
32 |
1 |
426-300-TAR-1150 |
HOSE 3"D X 11.5" L |
|
33 |
2 |
426-3875-TBC |
CLAMP,T-BOLT3.875" |
|
34 |
1 |
428-100-2C |
NIPPLE,CLOSE,1",BLK |
|
35 |
1 |
428-100-E |
STREETELBOW90DEG.1"NPT |
|
36 |
1 |
430-100-006 |
PULLEY4TB48-4.8"-USEP1BUSHING |
|
37 |
1 |
430-100-007 |
PULLEY4B12.4QD-SKBUSHING |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
38 |
1 |
430-200-049 |
BELTBX64COGV-BELT |
|
39 |
1 |
430-300-005 |
BUSHINGP1X1.5" |
|
40 |
1 |
430-300-006 |
BUSHING SK X 1.5" .375"` KEYWAY |
|
41 |
1 |
450-100-006 |
BATTERY BOX SMALL GROUP 24 |
|
42 |
4 |
450-100-030 |
CRIMPABLESIDETERMINAL-4GA-0.375STUD-UNI |
|
43 |
1 |

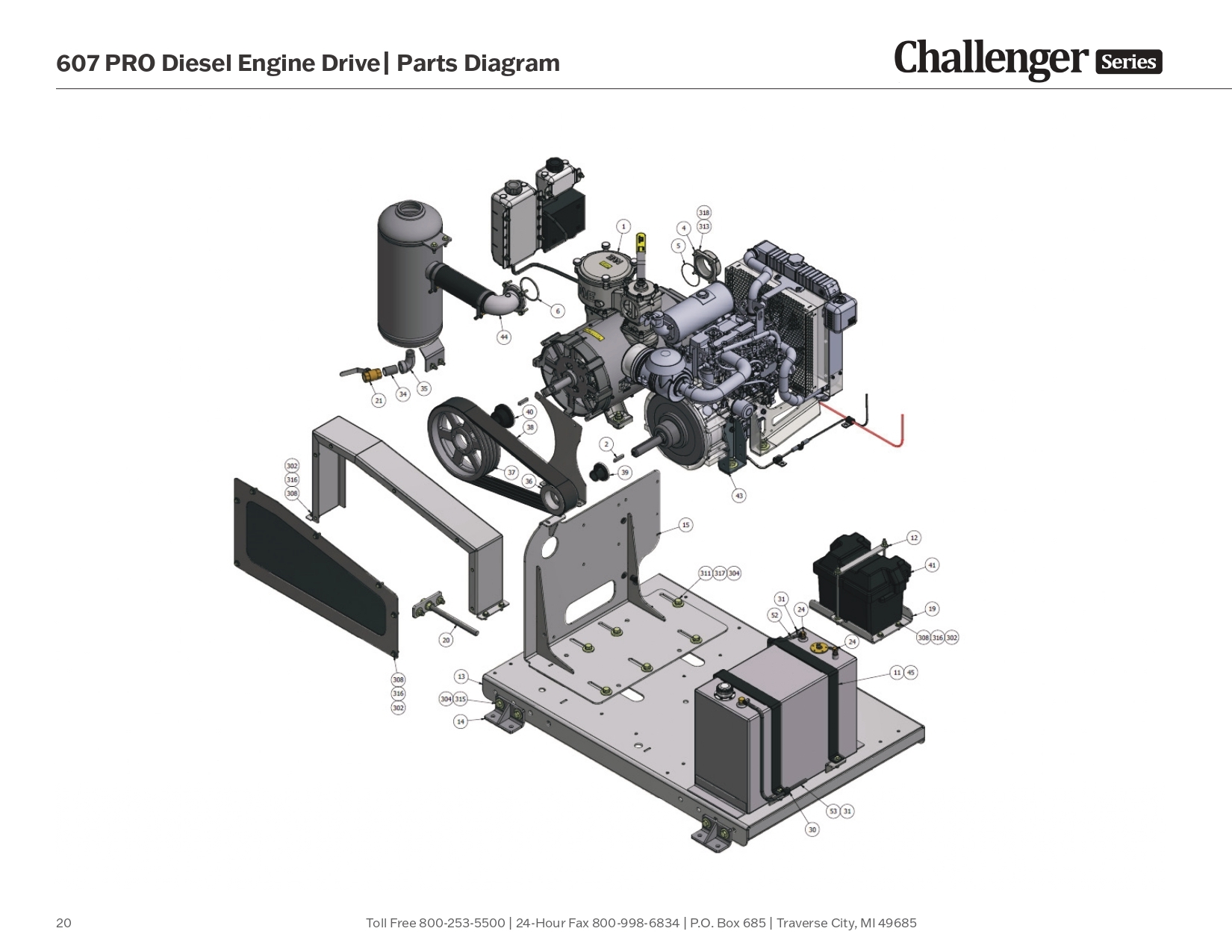

460-200-014 |
ENGINEYANMAR3CYL23.8HP |
|
44 |
1 |
803-063-015 |
POWDERCOATELBOW(803-063-005REPALCEMENT) |
|
45 |
4 |
840-125-N-1 |
FUEL TANK STRAP LINER |
|
46 |
2 |
860-010 |
THREADEDROD3/8"-16UNCX11.00"SS |
|
47 |
7 |
868-010 |
NUTSERT3/8"-16UNC0.150-0.312"GRIPRANGE(CAH STYLE) STEEL |
|
301 |
8 |
FW-1/2 |
FLATWASHER, 1/2 |
|
302 |
35 |
FW-3/8 |
FLATWASHER, 3/8 |
|
303 |
8 |
FW - 3_4 USS |
FLATWASHER-3/4USS |
|
304 |
30 |
FW-5/8 |
FLATWAHSER,5/8 |
|
305 |
6 |
FW-5/16 |
FLATWASHER,5/16 |
|
306 |
7 |
HEXNUT-3/8UNC |
HEXNUT-3/8UNC |
|
307 |
4 |
HHCS - 1/2-13 UNC X 1.75 |
HEXHEADCAPSCREW-1/2-13UNCX1.75 |
|
308 |
15 |
HHCS-3/8-16UNCX1.00 |
HEXHEADCAPSCREW-3/8-16UNCX1.00 |
|
309 |
4 |
HHCS-3/8-16UNCX1.50 |
HEXHEADCAPSCREW-3/8-16UNCX1.50 |
|
310 |
4 |
HHCS-3/8-16UNCX1.75 |
HEXHEADCAPSCREW-3/8-16UNCX1.75 |
|
311 |
6 |
HHCS -5/8-11UNC X 1.75 |
HEXHEADCAPSCREW-5/8-11UNCx1.75 |
|
312 |
4 |
HHCS -5/8-11UNC X 2.50 |
HEXHEADCAPSCREW-5/8-11UNCX2.50 |
|
313 |
10 |
HHCS-5/16-18UNCX 1.25 |
HEXHEADCAPSCREW-5/16-18UNCX1.25 |
|
314 |
4 |
HHCS-5/16-18UNCX 1.50 |
HEXHEADCAPSCREW-5/16-18UNCX1.50 |
|
315 |
8 |
HHCS - 5_8-11 UNC X 2.00 |
HEXHEADCAPSCREW5/8"-11UNCX2.00" |
|
316 |
15 |
LW-3/8 |
LOCK WASHER, 3/8 |
|
317 |
6 |
LW-5/8 |
LOCK WASHER, 5/8 |
|
318 |
14 |
LW-5/16 |
LOCK WASHER, 5/16 |
|
319 |
4 |
NYLOCKNUT-1/2UNC |
NYLOCKNUT-1/2UNC |
|
320 |
4 |
NYLOCKNUT-3/4UNC |
NYLOCKNUT-3/4UNC |
|
321 |
10 |
NYLOCK NUT - 3/8 UNC |
NYLOCK NUT - 3/8 UNC |
|
322 |
12 |
NYLOCK NUT - 5/8 UNC |
NYLOCK NUT - 5/8 UNC |
|
323 |
6 |
NYLOCKNUT-5/16UNC |
NYLOCKNUT-5/16UNC |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|

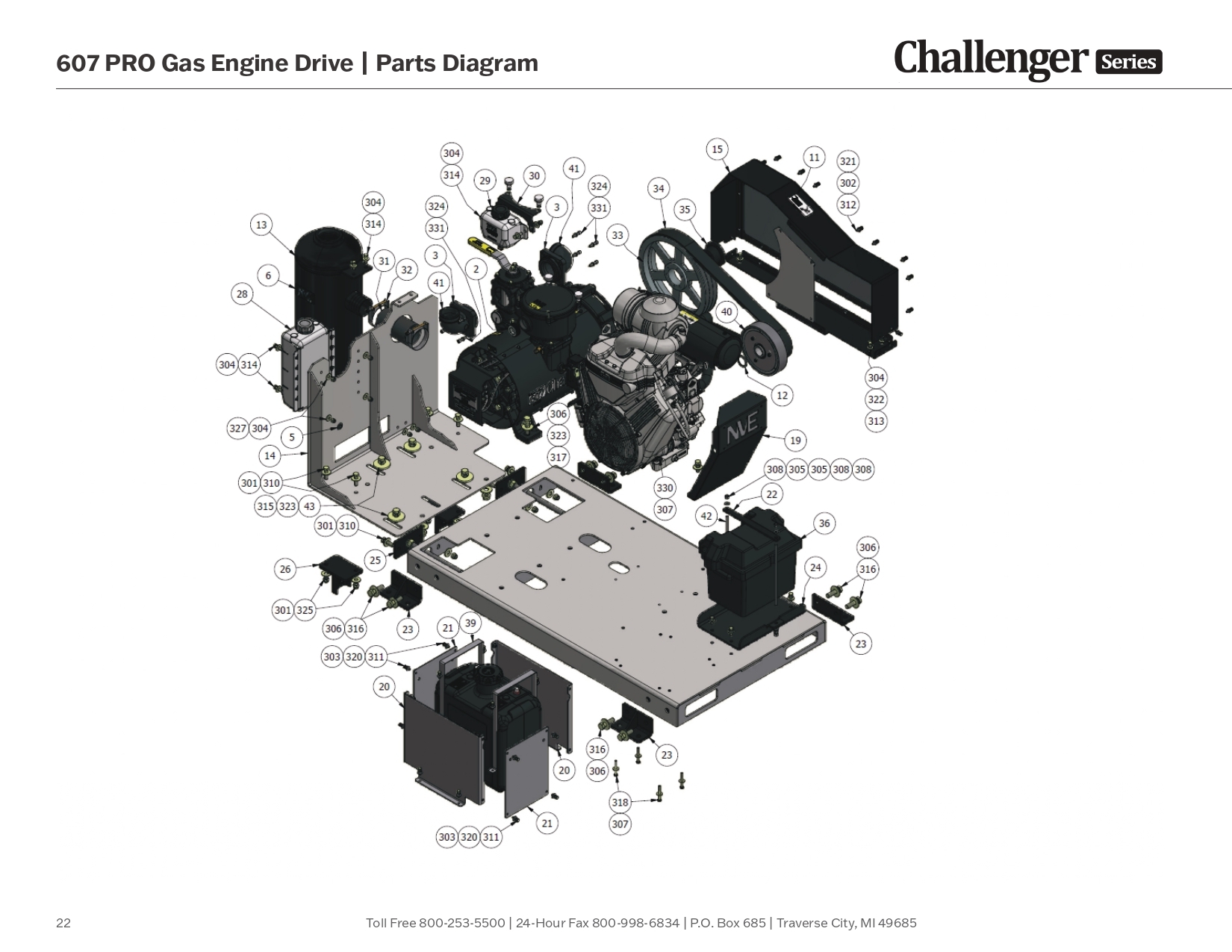

1 |
1 |
100-607P-FS |
CHALLENGER 607 PRO CCW FAN |
|
2 |
1 |
120-047-003 |
PLUGHEXCOUNTERSUNK1.50"NPTZINCPLATED |
|
3 |
2 |
120-063-007 |
FLANGE ELBOW ALUM 3" |
|
4 |
2 |
120-064-016 |
O-RING, 2-342 VITON |
|
5 |
1 |
120-078-005 |
GROMMET 0.5 I.D. 0.8125 G.D. 0.25 G.W. |
|
6 |
1 |
120-100-001 |
DECAL, NVE, MUFFLER PAK |
|
7 |
1 |
120-100-011 |
DECALDRAINDAILY-YELLOW |
|
8 |
1 |
120-100-012 |
DECAL CLEAN FILTER REGULARY YELLOW |
|
9 |
1 |
120-100-015 |
DECAL HOT |
|
10 |
1 |
120-100-017 |
DECALFLUSHINGFLUID-1QTTANK |
|
11 |
1 |
120-101-012 |
DECALDRIVESWITHOUTGUARDSWARNING |
|
12 |
1 |
126-016-001 |
SPACER,CLUTCH-607ENGINEDRIVEW/PRESS. |
|
13 |
1 |
212-100-3NPT-4 |
PUMP |
|
14 |
1 |
280-355-300 |
OCM 10" DIA X 17.5" NPT W/ HB |
|
15 |
1 |
280-355-301 |
607 POWER PAK PUMP SLED ASSY |
|
16 |
1 |
280-355-301-5SHORT |
BELTGUARDASSY-607POWERPAK |
|
17 |
1 |
BELT |
|
|
19 |
1 |
280-355-302 |
FRAME FOR 607 PRO FAN COOLED CW WITH 37 HP |
|
20 |
2 |
280-355-315 |
VANGUARDENGINE |
|
21 |
2 |
280-355-343-1 |
ENGINEGUARD,FAB-607POWERPAK |
|
22 |
1 |
280-355-343-2 |
GUARDPLATE,FUELTANK,7GAL,PLASTIC |
|
23 |
4 |
280-EDR-002 |
GUARDPLATECOVER,FUELTANK,7GAL,PLASTIC |
|
24 |
1 |
280-EDR-607-3 |
BATTERY HOLD DOWN |
|
25 |
2 |
280-EDR-607-14 |
607EDR1MOUNTINGFOOTASSEMBLY |
|
26 |
2 |
280-EDR-607-19 |
EDR BATTERY CRADLE |
|
27 |
2 |
280-EDR-607-20 |
EDR PUMP SLED DRIVER ASSY |
|
28 |
1 |
310-LP4 |
EDR PUMP SLED DRIVER HOUSING ASSY |
|
29 |
1 |
320-082-001 |
HOSEBARB1/4"NPTX1/4"90DEGELBOWBRASS |
|
30 |
1 |
320-082-003Z |
OILTANK,5QT,W/LOGO |
|
31 |
1 |
320-083-006 |
FLUSH TANK ASSY HDPE 1QT |
|
32 |
2 |
426-300-TAR-0600 |
BRACKET FLUID FLUSH POWDERCOAT |
|
33 |
1 |
426-3875-TBC |
HOSE 3"D X 6"L |
|
34 |
1 |
430-100-048 |
CLAMP,T-BOLT3.875" |
|
35 |
1 |
430-200-037 |
DRIVENSHEAVE-13.63"DIA3B-GROOVE |
|
36 |
1 |
430-300-006 |
3B66COGV-BELT-BANDED |
|
37 |
1 |
450-100-006 |
BUSHING SK X 1.5" .375"` KEYWAY |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
38 |
1 |
460-200-023 |
BATTERY BOX SMALL GROUP 24 |
|
39 |
1 |
460-200-023-1 |
ENGINEBRIGGS&STRATTON2CYL37HPEFI50 AMP |
|
40 |
1 |
460-200-108 |
MUFFLER 37HP VANGUARD |
|
41 |
2 |
460-400-002 |
FUELTANK,7GAL,PLASTIC |
|
42 |
2 |
802-063-005 |
CLUTCH, CENTRIFUGAL, SOFT START |
|
43 |
5 |
860-010 |
ELBOW,3"STECAST |
|
44 |
19 |
860-033 |
THREADEDROD3/8"-16UNCX11.00"SS |
|
45 |
1 |
868-001 |
OVERSIZEDWASHER,5/8"Z/P |
|
301 |
18 |
FW-1/2 |
FLATWASHER, 1/2 |
|
302 |
19 |
FW-1_4 |
FLATWASHER-1/4" |
|
303 |
24 |
FW - 1_4 USS |
FLATWASHER-1/4"USS |
|
304 |
29 |
FW-3/8 |
*Varies* |
|
305 |
5 |
FW-3/8SS |
FLATWASHER,3/8SS |
|
306 |
16 |
FW-5/8 |
FLATWAHSER,5/8 |
|
307 |
8 |
FW-5/16 |
FLATWASHER,5/16 |
|
308 |
6 |
HEXNUT-3_8UNCSS |
HEXNUT-3_8UNCSS |
|
309 |
2 |
HHCS - 1/2-13 UNC X 1.50 |
HEXHEADCAPSCREW-1/2-13UNCX1.50 |
|
310 |
8 |
HHCS - 1/2-13 UNC X 1.75 |
HEXHEADCAPSCREW-1/2-13UNCX2.00 |
|
311 |
16 |
HHCS-1_4-20UNC X 1.00 |
HEXHEADCAPSCREW-1/4-20UNCX1.00 |
|
312 |
19 |
HHCS - 1_4-20 UNC X 1.00 SS |
HEXHEADCAPSCREW-1_4-20UNCX1.00SS |
|
313 |
9 |
HHCS-3/8-16UNCX1.00 |
HEXHEADCAPSCREW-3/8-16UNCX1.00 |
|
314 |
10 |
HHCS-3/8-16UNCX1.25 |
HEXHEADCAPSCREW-3/8-16UNCX1.25 |
|
315 |
5 |
HHCS -5/8-11UNC X 1.75 |
HEXHEADCAPSCREW-5/8-11UNCx1.75 |
|
316 |
8 |
HHCS -5/8-11UNC X 2.25 |
HEXHEADCAPSCREW-5/8-11UNCX2.25 |
|
317 |
4 |
HHCS -5/8-11UNC X 2.50 |
HEXHEADCAPSCREW-5/8-11UNCX2.50 |
|
318 |
4 |
HHCS - 5_16-18 UNC X 3.75 |
HEXHEADCAPSCREW-5/16-18UNCX3.75 |
|
319 |
2 |
LW-1/2 |
LOCK WASHER, 1/2 |
|
320 |
16 |
LW-1/4 |
LOCK WASHER, 1/4 |
|
321 |
19 |
LW-1_4SS |
LOCK WASHER, 1/4" |
|
322 |
9 |
LW-3/8 |
LOCK WASHER, 3/8 |
|
323 |
9 |
LW-5/8 |
LOCK WASHER, 5/8 |
|
324 |
8 |
LW-5/16 |
LOCK WASHER, 5/16 |
|
325 |
8 |
NYLOCKNUT-1/2UNC |
NYLOCKNUT-1/2UNC |
|
326 |
8 |
NYLOCKNUT-1/4UNC |
NYLOCKNUT-1/4UNC |
|
327 |
10 |
NYLOCK NUT - 3/8 UNC |
NYLOCK NUT - 3/8 UNC |
|
328 |
1 |
NYLOCK NUT - 3/8 UNC SS |
NYLOCK NUT - 3/8 UNC SS |
|
329 |
4 |
NYLOCK NUT - 5/8 UNC |
NYLOCK NUT - 5/8 UNC |
|
330 |
4 |
NYLOCKNUT-5/16UNC |
NYLOCKNUT-5/16UNC |
|
331 |
8 |
SHCS - 5/16-18 UNC X 1.25 |
SOCKETHEADCAPSCREW-5/16-18UNCX1.25 |
