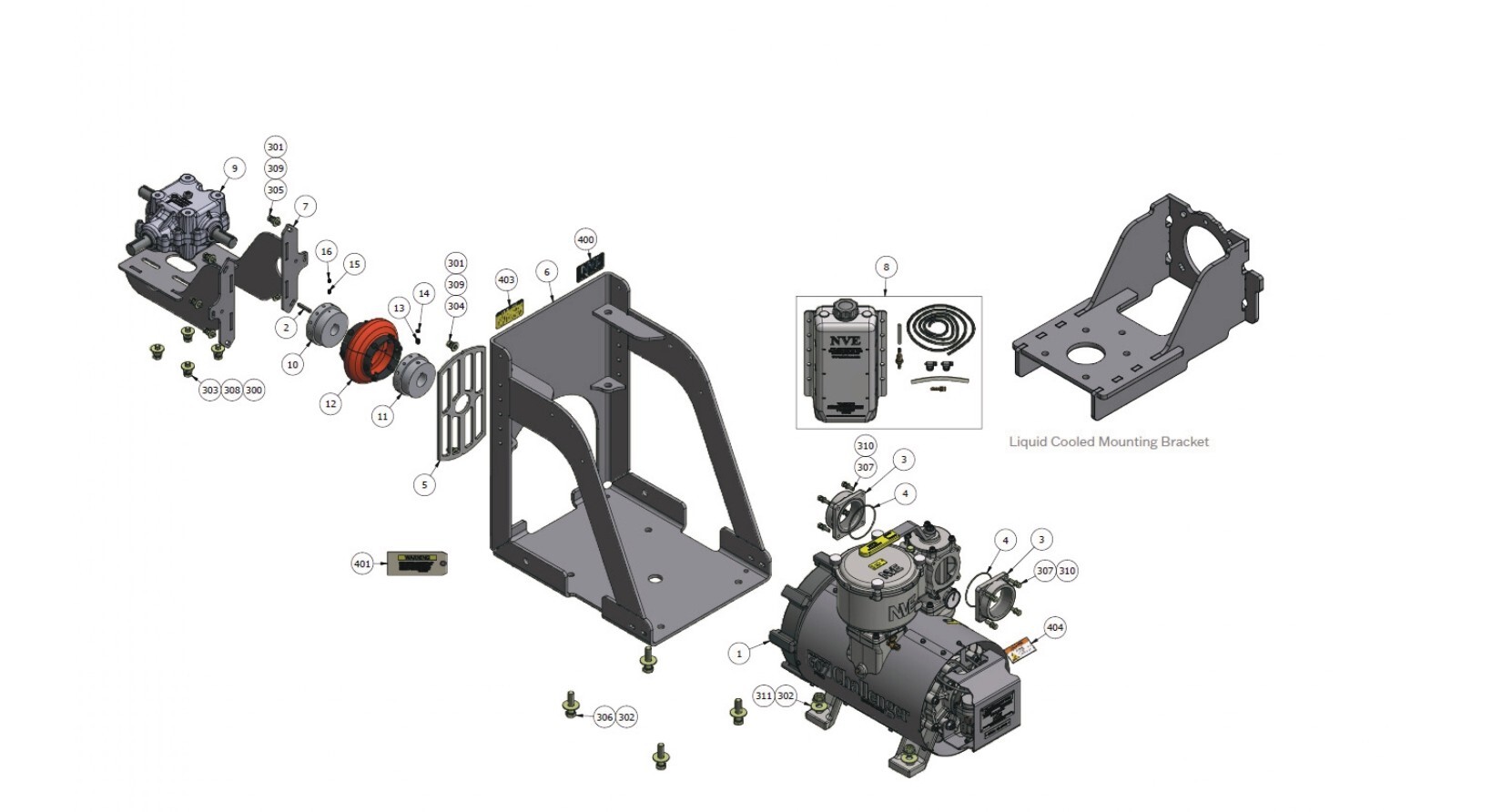

607 PRO Pump Stand Complete




ITEM QTY PART NUMBER DESCRIPTION
1 1 100-607P-FD CHALLENGER 607 PRO CW FAN
2 1 120-006-184 KEY .25" X .25" X 1.875"
3 2 120-063-367 FLANGE 4-WAY 3" NPT
4 2 120-064-001 O-RING, 2-154 VITON
5 1 120-073-ET FAN GUARD 607P TRIMMED
6 1 280-350-017 PUMP STAND, 607P MUFFLER PACK
7 1 280-401-003 607P GEARBOX MOUNT WELDED
8 1 320-081 REMOTE OIL TANK KIT
9 1 422-400-1 X GEARBOX 400 SERIES 1:1 RATIO 1-1/4"
10 1 424-200-125 COUPLER HUB E20 1 1/4" BORE 1/4" KEY
11 1 424-200-150 COUPLER HUB E20 1 1/2" BORE
12 1 424-200-E20 COUPLER FLEX ELEMENT E20
13 1 864-015 KNURLED CUP POINT SET SCREW 3/8"-16 UNC X 0.375"
14 1 864-016 FLAT TIP SET SCREW 3/8"-16 UNC X 0.375"
15 1 864-017 KNURLED CUP POINT SET SCREW 1/4"-20 UNC X 0.4375"
16 1 864-018 FLAT TIP SET SCREW 1/4"-20 UNC X 0.375"
300 4 FW - 1/2 FLAT WASHER, 1/2
301 8 FW - 3/8 FLAT WASHER, 3/8
302 8 FW - 5/8 FLAT WASHER, 5/8
303 4 HHCS - 1/2-13 UNC X 1.25 HEX HEAD CAP SCREW - 1/2-13 UNC X 1.25
304 2 HHCS - 3/8-16 UNC X 0.75 HEX HEAD CAP SCREW - 3/8-16 UNC X 0.75
305 6 HHCS - 3/8-16 UNC X 1.25 HEX HEAD CAP SCREW - 3/8-16 UNC X 1.25
306 4 HHCS - 5/8-11 UNC X 2.50 HEX HEAD CAP SCREW - 5/8-11 UNC X 2.50
307 8 HHCS - 5/16-18 UNC X 1.25 HEX HEAD CAP SCREW - 5/16-18 UNC X 1.25
308 4 LW - 1/2 LOCK WASHER, 1/2
309 8 LW - 3/8 LOCK WASHER, 3/8
310 8 LW - 5/16 LOCK WASHER, 5/16
311 4 NYLOCK NUT - 5/8 UNC NYLOCK NUT - 5/8 UNC
