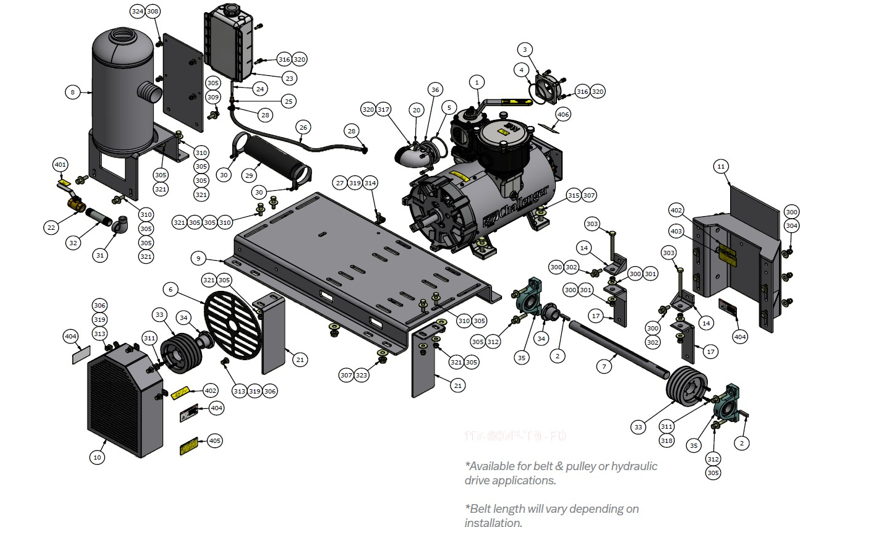

| ITEM | QTY | PART NUMBER | DESCRIPTION | ITEM | QTY | PART NUMBER | DESCRIPTION | |
| 1 | 1 | 100-607P-FD | CHALLENGER 607 PRO CW FAN | 32 | 1 | 428-105-2G | NIPPLE MNPT 2"X3" GALV NIPPLE | |
| 2 | 2 | 120-006 | KEY 3/8" X 3/8" X 2" | 33 | 2 | 430-367-TM1 | 6" SHEAVE, 4 BELT, SD STYLE BUSHING | |
| 3 | 1 | 120-063-367 | FLANGE 4-WAY 3" NPT | 34 | 2 | 430-367-TM2 | BUSHING, 367 TM, SD X 1.5 | |
| 4 | 1 | 120-064-001 | O-RING, 2-154 VITON | 35 | 2 | 430-400-004 | BEARING 1.5 PILLOW BLOCK | |
| 5 | 1 | 120-064-016 | O-RING, 2-342 VITON | 36 | 1 | 803-063-015 | POWDER COAT ELBOW (803-063-005 REPALCEMENT) | |
| 6 | 1 | 120-073-E | FAN COVER 607/866/887 POWDERCOAT | 300 | 16 | FW - 1/2 | FLAT WASHER, 1/2 | |
| 7 | 1 | 126-367-TM3 | JACK SHAFT 607 TM 22IN | 301 | 4 | HEX NUT - 1_2 UNC | HEX NUT - 1_2 UNC | |
| 8 | 1 | 212-100-3NPT-5 | OCM 10" DIA X 17.5" NPT W/ HB (TM) | 302 | 6 | HHCS - 1/2-13 UNC X 1.75 | HEX HEAD CAP SCREW - 1/2-13 UNC X 1.75 | |
| 9 | 1 | 280-355-006 | TM PACKAGE BASE | 303 | 2 | HHCS - 1/2-13 UNC X 5.50 FT | HEX HEAD CAP SCREW - 1/2-13 UNC X 5.50 FULL THREAD | |
| 10 | 1 | 280-355-007 | TM PACKAGE, UPPER BELT GUARD | 304 | 6 | NYLOCK NUT - 1/2 UNC | NYLOCK NUT - 1/2 UNC | |
| 11 | 1 | 280-355-046-1 | 608 TM JACKSHAFT ASSY (STYLE B) - 1 | 305 | 28 | FW - 1/2 | FLAT WASHER, 1/2 | |
| 12 | 1 | 280-355-046-2 | 608 TM JACKSHAFT ASSY (STYLE B) - 2 | 306 | 7 | FW - 3/8 | *Varies* | |
| 13 | 2 | 280-355-046-3 | 608 TM JACKSHAFT ASSY (STYLE B) - 3 | 307 | 8 | FW - 5/8 | FLAT WASHER, 5/8 | |
| 14 | 2 | 280-355-046-4 | 608 TM JACKSHAFT ASSY (STYLE B) - 4 | 308 | 4 | FW - 5/16 | FLAT WASHER, 5/16 | |
| 15 | 2 | 280-355-046-5 | 608 TM JACKSHAFT ASSY (STYLE B) - 5 | 309 | 2 | HHCS - 1/2-13 UNC X 1.75 | HEX HEAD CAP SCREW - 1/2-13 UNC X 1.75 | |
| 16 | 2 | 280-355-046-6 | 608 TM JACKSHAFT ASSY (STYLE B) - 6 | 310 | 8 | HHCS - 1/2-13 UNC X 2.00 | HEX HEAD CAP SCREW - 1/2-13 UNC X 2.00 | |
| 17 | 2 | 280-355-046-7 | 608 TM JACKSHAFT ASSY (STYLE B) - 7 | 311 | 6 | HHCS - 1/4-20 UNC X 1.375 NP | HEX HEAD CAP SCREW - 1/4-20 UNC X 1.375 NO PLATING | |
| 18 | 2 | 280-500-WNC | 1/2"-13 UNC WELD NUT | 312 | 4 | HHCS - 1_2-13 UNC X 2.75 | HEX HEAD CAP SCREW - 1/2 -13 UNC x 2.75 | |
| 19 | 1 | 280-355-183 | OIL TANK MOUNT | 313 | 6 | HHCS - 3/8-16 UNC X 1.00 | HEX HEAD CAP SCREW - 3/8-16 UNC X 1.00 | |
| 20 | 1 | 280-355-368 | FLANGE 3" ADJ ELBOW NARROW | 314 | 1 | HHCS - 3/8-16 UNC X 1.50 | HEX HEAD CAP SCREW - 3/8-16 UNC X 1.50 | |
| 21 | 2 | 280-367-TM7 | L MOUNTING BRACKET, 367 TM | 315 | 4 | HHCS - 5/8-11 UNC X 2.50 | HEX HEAD CAP SCREW - 5/8-11 UNC X 2.50 | |
| 22 | 1 | 288-100 | DRAIN VALVE BRASS 1" IPS | 316 | 8 | HHCS - 5/16-18 UNC X 1.25 | HEX HEAD CAP SCREW - 5/16-18 UNC X 1.25 | |
| 23 | 1 | 320-082-001 | OIL TANK, 5QT, W/LOGO | 317 | 4 | HHCS - 5/16-18 UNC X 1.50 | HEX HEAD CAP SCREW - 5/16-18 UNC X 1.50 | |
| 24 | 1 | 320-083-009 | OIL TANK FILTER, 100 MESH | 318 | 6 | LW - 1/4 NP (EXTERNAL) | LOCK WASHER, 1/4 NO PLATING (SUPPLIED W/ BUSHING) | |
| 25 | 1 | 320-083-010 | FILTER FITTING, OIL TANK 1/4 NPT | 319 | 7 | LW - 3/8 | LOCK WASHER, 3/8 | |
| 26 | 1 | 320-407-003 | OIL LINE BLK 1/4" ID 30R7 | 320 | 12 | LW - 5/16 | LOCK WASHER, 5/16 | |
| 27 | 1 | 320-409-004 | P-CLIP .562 CLAMP DIA .406 HOLE DIA. GALV. VINYL | 321 | 14 | NYLOCK NUT - 1/2 UNC | NYLOCK NUT - 1/2 UNC | |
| 28 | 2 | 416-025-1WC | CLAMP, WORM, .250" dia | 322 | 1 | NYLOCK NUT - 3/8 UNC | NYLOCK NUT - 3/8 UNC | |
| 29 | 1 | 426-300-TAR-1050 | HOSE 3"D X 10.5"L | 323 | 4 | NYLOCK NUT - 5/8 UNC | NYLOCK NUT - 5/8 UNC | |
| 30 | 2 | 426-3875-TBC | CLAMP, T-BOLT 3.875" | 324 | 4 | NYLOCK NUT - 5/16 UNC | NYLOCK NUT - 5/16 UNC | |
| 31 | 1 | 428-100-E | STREET ELBOW 90 DEG. 1" NPT |
