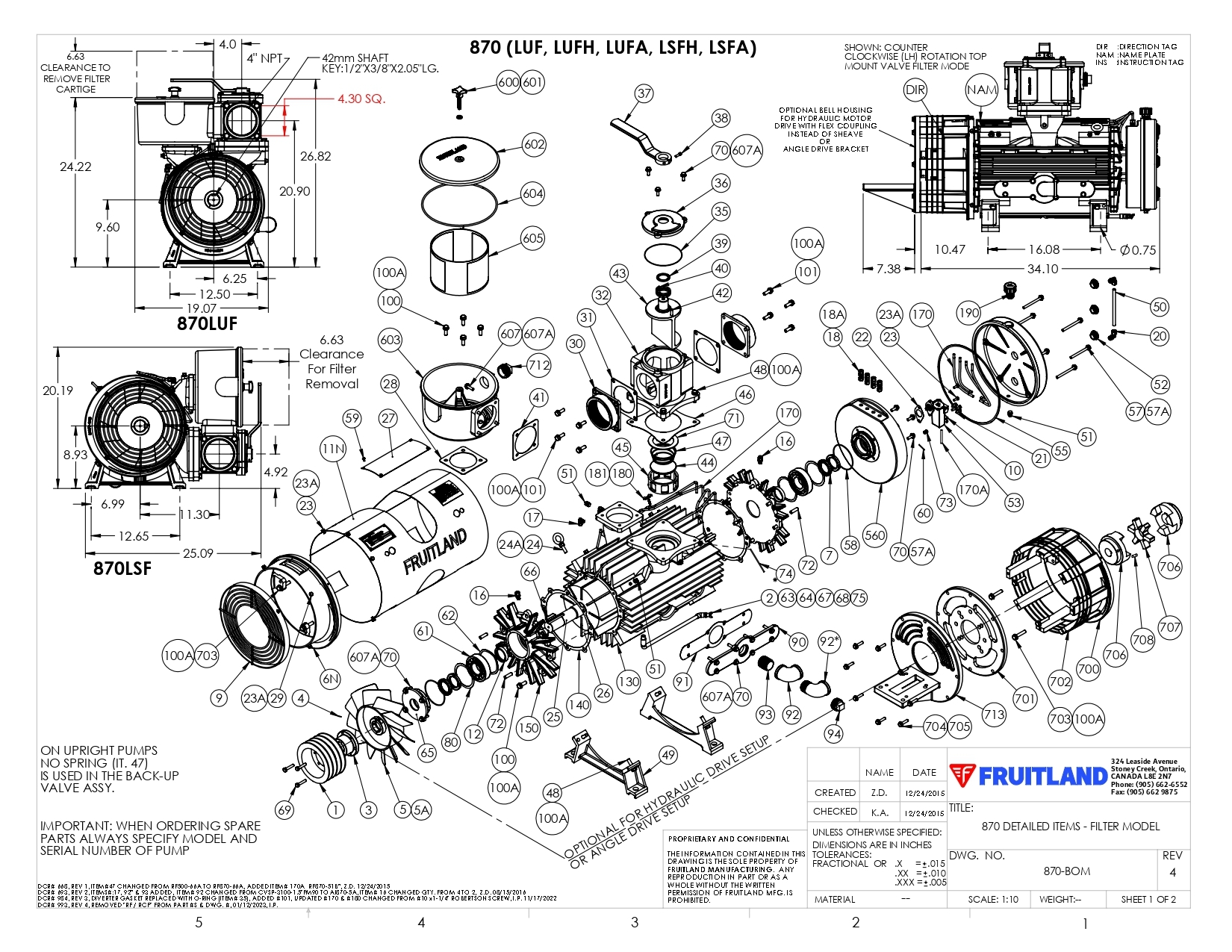

| ITEM # | PART # | DESCRIPTION | QTY. |
| 1 | RF500-38 | 6'' SHEAVE 4 GROOVE B SECTION | 1 |
| 2 | RF500-82A | DRAIN PLUG /VALVE 1/4'' NPT | 1 |
| 3 | SK 42 | SHEAVE BUSHING SK 42 MM | 1 |
| 4 | RF500-48B | 5/16"NF X 7/8"LG. SHCS PLAIN | 1 |
| 5 | RF500-33L * | FAN ASSY - L.H. | 1 |
| 5A | RF500-33R | FAN ASSY - R.H. | 1 |
| 6N | RF870-34N | FAN SHROUD (NEW STYLE) | 1 |
| 7 | RF500-225A | OIL SEAL | 4 |
| 9 | RF500-30 | FAN GUARD | 1 |
| 10 | 250-6 | SOLDER FITTING OIL PUMP OUTLET | 4 |
| 11N | RF870-46U * | HOUSING SHROUD - LUF | 1 |
| 12 | RF500-8 | COLLAR ( FINISH GRIND) | 2 |
| 16 | RF500-50A | COMPRESSION FITTING 1/8" FOR 1/4" | 2 |
| 17 | RF870-72A | BRASS ELBOW COMPRESSION 1/8" NPT - 1/4" TUBE COMPRESSION | 2 |
| 18 | RF500-52A | BULKHEAD FITTING | 4 |
| 18A | U-SEAL | U-SEAL WASHER (OIL TANK BULKHEAD) | 4 |
| 20 | RF500-32A | SIGHT TUBE ELBOW FITTING | 2 |
| 21 | 250-6A | HOLLOW BOLT M-6 FOR OIL PUMP | 4 |
| 22 | RF500-27 | GASKET - OIL PUMP | 1 |
| 23 | RF500-28A | HEX BOLT M6 X 16MM | 7 |
| 23A | RF500-280A | LOCKWASHER M6 | 11 |
| 24 | RF500-37A | EYEBOLT | 2 |
| 24A | RF500-137A | M10 HEX NUT | 2 |
| 25 | RF870-4 | 870 ROTOR ASSEMBLY | 1 |
| 26 | RF870-6A | VANES | 8 |
| 27 | RF870-47 | PLATE (10'' X4'') SHROUD PLATE | 1 |
| 28 | RF870-61 | GASKET - PUMP (INTAKE FL. GASKET) | 1 |
| 29 | RF120-102A | HEX BOLT M6 X 10, FAN GUARD | 4 |
| 30 | RF870-4NPT | END CAP (DIVERTER 4” NPT FLANGES) | 2 |
| 31 | RF870-65 | GASKET-DIVERTER FLG. (4” NPTFL) | 2 |
| 32 | RF870-11F | DIVERTER HOUSING | 1 |
| 35 | RF120-12-OR | DIVERTER CAP O-RING | 1 |
| 36 | RF120-12 | DIVERTER HOUSING CAP | 1 |
| 37 | RF500-13F | LEVER ASSEMBLY-FILTER PUMP | 1 |
| 38 | RF500-130A | S.H.C. SCREW 1/4”-28 X 3/4 | 1 |
| 39 | RF500-62A | OIL SEAL | 1 |
| 40 | RF500-14A | DIVERTER VANE SPRING | 1 |
| 41 | RF870-64 | GASKET, DIVERTER-FILTER | 1 |
| 42 | RF500-64A | SPLIT PIN 5/16''X1-1/4'' | 1 |
| 43 | RF870-10F | DIVERTER VALVE VANE | 1 |
| 44 | RF870-BUVD | BACK-UP VALVE PLATE (DISC) | 1 |
| 45 | RF870-BUVC | BACK-UP VALVE SEAT (CAGE) | 1 |
| 46 | RF870-62 | GASKET, PUMPOUTLET (EXHAUST FLANGE GASKET) | 1 |
| 47 | RF870-66A | BACK-UP VALVE SPRING | 1 |
| 48 | RF120-48A | HEX BOLT M10 X 40MM - PLAIN | 8 |
| 49 | RF870-9 | HOUSING BASE | 2 |
| 50 | RF800-25A | SIGHT HOSE | 1 |
| 51 | RF500-69A | PIPE PLUG 1/4'' NPT BLACK SQ.HD. | 7 |
| 52 | RF500-25SG | GLASS SIGHT | 3 |
| 53 | RF500-29 | OIL PUMP BI-DIRECTIONAL | 1 |
| 54 | RF800-189 | 800 OIL PUMP (RESERVOIR) COVER | 1 |
| 55 | RF800-191 | GASKET - PUMP (RESERVOIR) COVER | 1 |
| 57 | RF500-24A | HEX BOLT M8 X 90MM - Z.P. | 6 |
| 57A | RF500-221A | ALUM. FLAT WASHER | 10 |
| 58 | RF870-22A | SEAL HOUSING O-RING | 2 |
| 59 | RF500-71A | SELF DRILLING SCREW #6 x 3/8" LONG | 9 |
| 60 | RF500-72A | ROLL PIN 5/32 X 1-1/4 FOR OIL PUMP | 1 |
| 61 | RF500-19A | ROLLER BEARING | 2 |
| 62 | RF870-20A | WAVE SPRING | 2 |
| 63 | ELBOW 45 DEG | 45 ELBOW 1/4 NPT | 1 |
| 64 | RF250-73A | 1/4" PIPE COUPLING | 1 |
| 65 | RF870-15 | SMALL SEAL HOUSING DRIVE END | 1 |
| 66 | RF500-74 | KEY 3/8'' x 1/2'' x 2” | 1 |
| 67 | NIPPLE 1/4" x 11" | 1/4" x 11" NIPPLE | 1 |
| 68 | RF250-32A | 90 BRASS ELBOW | 1 |
| 69 | RF500-0 | BOLT 5/16” NC X 1-1/2 & LW INCLD W ITEM # 3 | 3 |
| 70 | RF500-48A | HEX BOLT M8 x 25 | 19 |
| 71 | RF870-BUVR | BACK-UP VALVE RING | 1 |
| 72 | RF870-32A | DOWEL PIN - Ø.375 x 2.0 LONG | 4 |
| 73 | RF500-80A | OIL PUMP COUPLING | 1 |
| 74 | RF500-81 | VANE WEAR TEST ROD | 1 |
| 75 | A270-5 | PIPE NIPPLE - 1/4" NPT x 7/8" LONG | 1 |
| 80 | RF870-21 | BEARING SHIMS SET | 1 |
| .003” X 3 | |||
| .005” X 2 | |||
| 90 | RF870-16 | BALLAST AIR PORT COVER | 1 |
| 91 | RF870-63 | GASKET-BALLAST COVER | 1 |
| 92 | AI-870-5A¹ | 1-1/4" NPT ELBOW FEMALE x FEMALE | 1 |
| 92* | RF870-71A¹ | 1-1/4" NPT STREET ELBOW | 1 |
| 93 | RF870-7A¹ | 1-1/4" NPT NIPPLE 2" | 1 |
| 94 | RF870-74A | PIPE PLUG - 1-1/4" NPT - SQU. DRIVE | 1 |
| 100 | RF500-67A | M10 X 30MM HEX BOLT | 16 |
| 100A | RF120-94A | 10MM LOCK WASHER | 36 |
| 101 | RF500-59A | HEX BOLT - M10 x 25mm - Z.P. | 8 |
| 130 | RF870-1 | 870 HOUSING | 1 |
| 140 | RF870-60 | GASKET HOUSING CAP | 2 |
| 150 | RF870-3 | HOUSING END CAP | 2 |
| 170 | RF870-51* | COMPLETE OIL LINE SET FOR 870 PUMPS INCLD. EXTERNAL OIL LINES, OIL PUMP LINES, & HARDWARE | 1 |
| 180 | HBI-818-756 | SELF-TAPPING SCREW - #8-18 x 3/4" LONG | 1 |
| 181 | RF120-52 | OIL LINE CLAMP - ALUMINUM (TS035-19-44) | 1 |
| 190 | RF500-190P | BREATHER FILLER | 1 |
| 560 | RF870-22 | SEAL HOUSING NO DRIVE END | 1 |
| 600 | RF500-F00 | STAR KNOB 55mm | 1 |
| 601 | RF500-F01 | COPPER WASHER | 1 |
| 602 | RF500-FL | FILTER BOX LID | 1 |
| 603 | RF870-7-FB | FILTER BOX | 1 |
| 604 | RF500-04 | 'O' RING | 1 |
| 605 | RF500-FC | ST.ST. FILTER CARTRIDGE | 1 |
| 607 | RF500-F07 | HEX BOLT M8 X 30MM | 4 |
| 607A | RF120-96A | LOCK WASHER M8 | 19 |
| 700 | RF870-BH | HYD. DRIVE BELL HOUSING | 1 |
| 701 | RF500-MP | MOUNTING PLATE | 1 |
| 702 | RF500-GR | GUARD RINGS (1 PCS.) | 4 |
| 703 | RF500-703 | HEX BOLT M10 X 50MM ZINC PLATED | 4 |
| 704 | M8X35HEX | BOLT M8 X 35 MM | 8 |
| 705 | M8 F/W | M8 FLAT WASHER ZINC PLATED | 8 |
| 706 | F190-XXX | F190 FLANGES 42 MM & SPECIFY OTHER | 2 |
| 707 | F130-INS | 130 COUPLING INSERT (FRUITLAND) | 1 |
| 708 | RF120-134 | SET SCREW 3/8” NC | 2 |
| 712 | RF500-240 | PIPE PLUG - 1-1/2 NPT | 1 |
| 713 | RF500-ADA2 | ANGLE DRIVE ADAPTOR PLATE | 1 |
| INS | RF500-INS | INSTRCTION TAG OIL | 1 |
| MAN | RF500-MAN | MANUAL | 1 |
| DIR | RF500-DIR | DIRECTION TAG | 1 |
| NAM | RF500-NAM | NAME PLATE | 1 |
