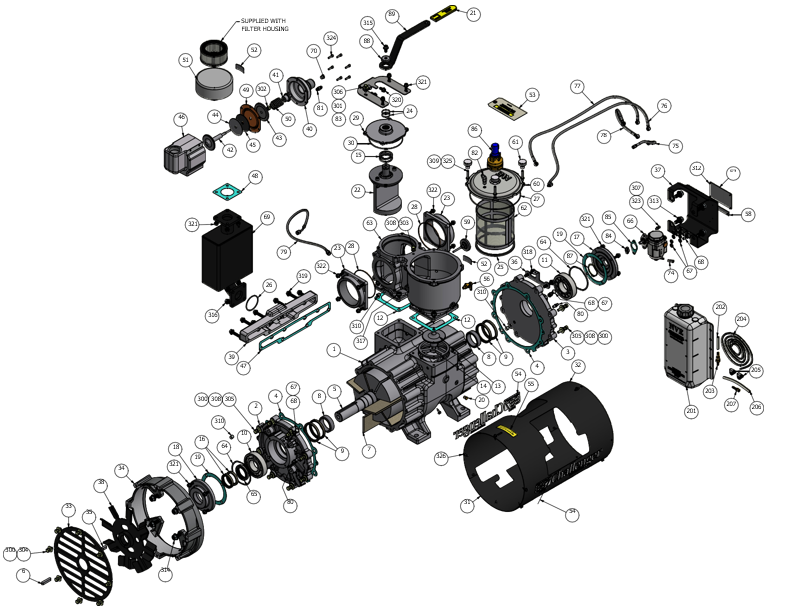

| ITEM | QTY | PART NUMBER | DESCRIPTION | ITEM | QTY | PART NUMBER | DESCRIPTION | |
| 1 | 1 | 120-001-009 | HOUSING 887 PRO MACHINED | 63 | 1 | 120-320-005 | MANIFOLD 887 PRO MACHINED | |
| 2 | 1 | 120-003-008 | 887 ENDPLATE [CW DRIVE / CCW NON DRIVE], MACHINED | 64 | 2 | 120-406-002 | WASHER WAVE, 887 | |
| 3 | 1 | 120-003-009 | 887 ENDPLATE [CW NON DRIVE / CCW DRIVE], MACHINED | 65 | 1 | 120-645-001 | LOCK NUT 887 | |
| 4 | 2 | 120-004-001 | GASKET 887 ENDPLATE | 66 | 1 | 123-000-004 | OIL PUMP 4 PORT NVE | |
| 5 | 1 | 120-005-008 | 887 ROTOR ASSEMBLY | 67 | 12 | 123-013-001 | WASHER 3/8" SEALING VITON | |
| 6 | 1 | 120-006 | KEY 3/8" X 3/8" X 2" | 68 | 6 | 123-408-014 | BANJO BOLT 1/8" BSPP | |
| 7 | 7 | 120-007-887 | VANE 887 | 69 | 1 | 124-360-001 | BALLAST SILENCER IN-LINE 887 | |
| 8 | 2 | 120-009-004 | SEAL SLEEVE 887 | 70 | 1 | 150-047-006 | PLUG SAE ORB -5 VITON | |
| 9 | 4 | 120-018-001 | SEAL 70 X 85 X 08A VITON SGL LIP | 71 | 1 | 150-220-VPOIL-150 | OIL VACUUM PUMP R&O ISO 150/SAE 40 | |
| 10 | 1 | 120-019-001 | BEARING BALL 887 DRIVE END | 72 | 1 | 280-355-282 | BALLAST VALVE BRACKET, 887 PRO | |
| 11 | 1 | 120-019-002 | BEARING ROLLER 887 NON DRIVE END | 73 | 1 | 320-081 | REMOTE OIL TANK KIT | |
| 12 | 2 | 120-039-007 | GASKET 887 PRO INTAKE/EXHAUST | 74 | 1 | 320-083-011 | CAP OIL PUMP FEED LINE FITTING | |
| 13 | 1 | 120-041-887 | CHECK VALVE 887 PRO | 75 | 1 | 320-407-017 | OIL LINE -3 SST FEMALE JIC TO BANJO 8.5" | |
| 14 | 1 | 120-042-887 | 887 CHECK VALVE HOLDER MACHINED | 76 | 1 | 320-407-029 | OIL LINE -3 SST 90 DEG JIC TO BANJO 37.125" | |
| 15 | 1 | 120-045 | SPRING 4-WAY FTR VALVE | 77 | 1 | 320-407-030 | OIL LINE -3 SST BANJO TO BANJO 32.00" | |
| 16 | 2 | 120-053-506 | SEAL 45 X 62 X 8 VITON | 78 | 1 | 320-407-031 | OIL LINE -3 SST BANJO TO BANJO 11.50" | |
| 17 | 1 | 120-054-005 | COVER BRNGS NON DRIVE END 887 | 79 | 1 | 320-407-038 | OIL LINE -4 SST 90 DEG JIC TO FEMALE JIC 22.750" | |
| 18 | 1 | 120-054-006 | COVER BRNGS DRIVE END 887 | 80 | 2 | 320-408-016 | FITTING STR -3 MJIC X 1/8 MNPT | |
| 19 | 2 | 120-055-001 | GASKET 887 BEARING COVER | 81 | 1 | 320-408-035 | FITTING STR -4 MJIC X 1/8 MNPT | |
| 20 | 1 | 120-058 | PLUG BRASS HEX HEAD 1/8" NPT | 82 | 1 | 320-408-036 | FITTING ELBOW -4 MJIC X 1/4 MNPT | |
| 21 | 1 | 120-060-002 | GRIP, HANDLE W/ LOGO | 83 | 1 | 320-409-017 | P-CLIP 3/8" ID 13/32" HOLE GALV | |
| 22 | 1 | 120-062-009 | 887 PLUG, MACHINED ASSY | 84 | 1 | 320-LF8 | DRIVE TAB | |
| 23 | 2 | 120-063-506 | FLANGE 4" NPT | 85 | 1 | 320-R31 | GASKET, OIL PUMP | |
| 24 | 2 | 120-064-017 | O-RING 2-216-VITON | 86 | 1 | 366-150 | VACUUM RELIEF, 1 1/2" NPT | |
| 25 | 1 | 120-064-030 | O-RING SQUARE VITON 436 | 87 | 1 | 400-026-887 | EXTERNAL RETAINING RING, 887 | |
| 26 | 1 | 120-064-032 | O-RING 2-230 VITON | 88 | 1 | 412-020-003 | WASHER, CUP 4-WAY | |
| 27 | 1 | 120-064-035 | O-RING 2-266 VITON | 89 | 1 | 412-060-009 | HANDLE 4310 ENCLOSED | |
| 28 | 2 | 120-064-506 | ORING, 2-158 SILICONE | 200 | 1 | OWNERS MANUAL - 887 | OWNERS MANUAL 887 | |
| 29 | 1 | 120-065-009 | TOWER 887 MACHINED | 201 | 1 | 320-082-001 | OIL TANK, 5QT, W/LOGO | |
| 30 | 1 | 120-068 | ORING, 2-252 VITON | 202 | 1 | 320-083-009 | OIL TANK FILTER, 100 MESH | |
| 31 | 1 | 120-070-001 | TIN LOWER ROLLED 887 | 203 | 1 | 320-083-010 | FILTER FITTING, OIL TANK 1/4 NPT | |
| 32 | 1 | 120-071-001 | TIN UPPER ROLLED 887 | 204 | 5 FT | 320-407-003 | OIL LINE, BLK 1/4" ID 30R7 | |
| 33 | 1 | 120-073-E | FAN COVER 607/866 E-COAT | 205 | 2 | 416-025-1WC | CLAMP, WORM, 1/4" DIA | |
| 34 | 1 | 120-074-002 | FAN SHROUD 887 MACHINED | 206 | 6 IN | 320-R102 | OIL LINE, 3/8" X 1/4" ID X 6" LG | |
| 35 | 1 | 120-076 | KEY 3/8" X 3/8" X 1" | 207 | 1 | 310-LP5 | HOSE BARB, 1/4" X 1/8" NPT STRAIGHT | |
| 36 | 1 | 120-077-001 | SHROUD SUPPORT PLATE 887 | 300 | 22 | FW - 3/8 | FLAT WASHER, 3/8 | |
| 37 | 1 | 120-079-008 | GUARD NVE OIL PUMP 607/887 W/ TAG MOUNT | 301 | 1 | FW - 5/16 | FLAT WASHER, 5/16 | |
| 38 | 1 | 120-084-003 | FAN ASSY CW 887 | 302 | 1 | HEX NUT - 3/8 UNF | HEX NUT - 3/8 UNF | |
| 39 | 1 | 120-090-009 | BALLAST MANIFOLD 887 | 303 | 1 | HHCS - 3/8-16 UNC X 0.50 | HEX HEAD CAP SCREW - 3/8-16 UNC X 0.50 | |
| 40 | 1 | 120-095-003 | COVER VALVE BALLAST VALVE MACHINED | 304 | 8 | HHCS - 3/8-16 UNC X 0.75 | HEX HEAD CAP SCREW - 3/8-16 UNC X 0.75 | |
| 41 | 1 | 120-095-004 | SCREW ADJUSTMENT BALLAST VALVE | 305 | 14 | HHCS - 3/8-16 UNC X 1.75 | HEX HEAD CAP SCREW - 3/8-16 UNC X 1.75 | |
| 42 | 1 | 120-095-005 | PLUNGER BALLAST VALVE MACHINED | 306 | 1 | HHCS - 5/16-18 UNC X 1.00 | HEX HEAD CAP SCREW - 5/16-18 UNC X 1.00 | |
| 43 | 1 | 120-095-006 | PISTON SEAT | 307 | 2 | LW - 1/4 | LOCK WASHER, 1/4 | |
| 44 | 1 | 120-095-007 | DIAPHRAGM PLATE BALLAST VALVE | 308 | 15 | LW - 3/8 | LOCK WASHER, 3/8 | |
| 45 | 1 | 120-095-012 | GASKET BALLAST VALVE PROTECTIVE | 309 | 5 | LW - 5/16 | LOCK WASHER, 5/16 | |
| 46 | 1 | 120-095-013 | HOUSING BALLAST VALVE MACHINED | 310 | 3 | PLUG - 1/4 NPT SH | SOCKET HEAD PLUG - 1/4 NPT | |
| 47 | 1 | 120-097-002 | GASKET 887 BALLAST MANIFOLD | 311 | 6 | PLUG - 1/8 NPT SH | SOCKET HEAD PLUG - 1/8 NPT | |
| 48 | 1 | 120-097-003 | GASKET BALLAST VALVE LOWER | 312 | 6 | RVT 3/32 D X 1/4L SS | BLIND RIVET, 3/32 DIA X 1/4 GRIP, SS | |
| 49 | 1 | 120-097-004 | DIAPHRAGM BALLAST VALVE | 313 | 4 | SFHCS - 1/2-13 UNC X 1.00 | SERRATED FLANGE HEX HEAD SCREW - 1/2-13 UNC X 1.00 | |
| 50 | 1 | 120-097-005 | COMPRESSION SPRING 1.375 O.D. X 1.041 I.D. | 314 | 4 | SFHCS - 1/2-13 UNC X 1.50 | SERRATED FLANGE HEX HEAD SCREW - 1/2-13 UNC X 1.50 | |
| 51 | 1 | 120-099-506-4 | BALLAST FILTER ASSEMBLY, REMOTE | 315 | 1 | SFHCS - 3/8-16 UNC X 0.75 | SERRATED FLANGE HEX HEAD SCREW - 3/8-16 UNC X 0.75 | |
| 52 | 2 | 120-100-012 | DECAL CLEAN FILTER REGULARY YELLOW | 316 | 4 | SFHCS - 3/8-16 UNC X 1.00 | SERRATED FLANGE HEX HEAD SCREW - 3/8-16 UNC X 1.00 | |
| 53 | 1 | 120-100-014 | TOE TAG DECAL REIEF MUST BE SET | 317 | 8 | SFHCS - 3/8-16 UNC X 1.25 | SERRATED FLANGE HEX HEAD SCREW - 3/8-16 UNC X 1.25 | |
| 54 | 2 | 120-100-053 | DECAL, 887 PRO CHALLENGER HD | 318 | 2 | SFHCS - 3/8-16 UNC X 1.75 | SERRATED FLANGE HEX HEAD SCREW - 3/8-16 UNC X 1.75 | |
| 55 | 1 | 120-101-003 | DECAL CW ROTATION ARROW | 319 | 8 | SFHCS - 3/8-16 UNC X 2.25 | SERRATED FLANGE HEX HEAD SCREW - 3/8-16 UNC X 2.25 | |
| 56 | 1 | 120-102 | VALVE, DRAIN 1/8" NPT | 320 | 2 | SFHCS - 5/16-18 UNC X 0.75 | SERRATED FLANGE HEX HEAD SCREW - 5/16-18 UNC X 0.75 | |
| 57 | 1 | 120-105-887 | NAME PLATE SS 887 | 321 | 15 | SFHCS - 5/16-18 UNC X 1.00 | SERRATED FLANGE HEX HEAD SCREW - 5/16-18 UNC X 1.00 | |
| 58 | 1 | 120-107-001 | SERIAL TAG SS | 322 | 8 | SFHCS - 5/16-18 UNC X 1.25 | SERRATED FLANGE HEX HEAD SCREW - 5/16-18 UNC X 1.25 | |
| 59 | 1 | 120-220 | THERMOMETER, 50- 400 DEG, 2" FACE | 323 | 1 | SHCS - 1/4-20 UNC X 0.625 | SOCKET HEAD CAP SCREW - 1/4-20 UNC X 0.625 | |
| 60 | 1 | 120-310-004 | COVER FLTR MACHINED 607 & B500 | 324 | 7 | SHCS - 1/4-20 UNC X 0.75 | SOCKET HEAD CAP SCREW - 1/4-20 UNC X 0.75 | |
| 61 | 4 | 120-312-002 | KNOB, 5/16-18UNC | 325 | 4 | SS - 5/16-18 UNC X 2.00 | HEXAGON SOCKET SET SCREW - 5/16-18 UNC X 2.00 SS | |
| 62 | 1 | 120-314-005 | INTAKE FILTER 887 PRO | 326 | 10 | TAPSCR - 1_4-14 X 0.75 | HEX HEAD SELF TAPPING SCREW 1/4-14 |
