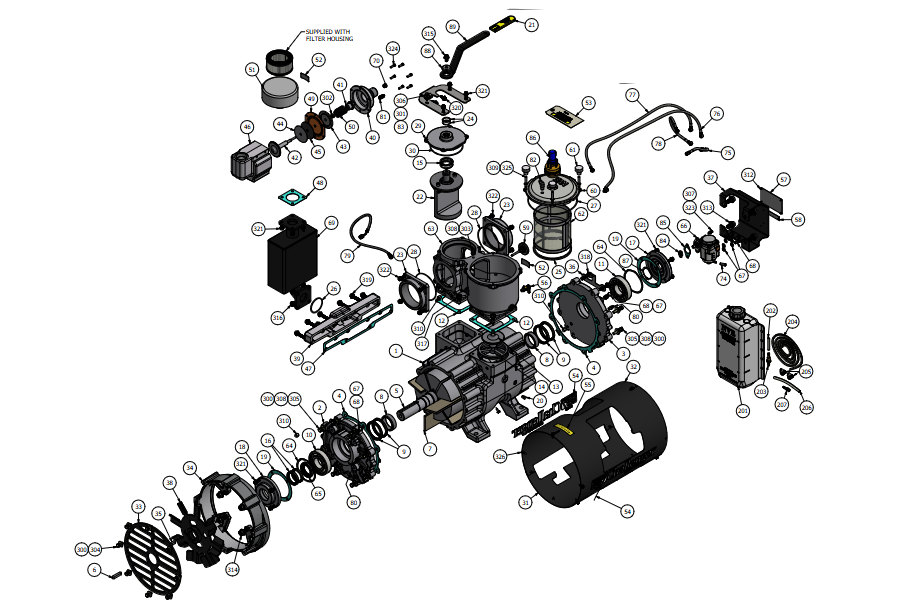

887 PRO Challenger Series CW Fan Cooled | Parts Diagram
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
1 |
1 |
120-001-009 |
HOUSING887PROMACHINED |
|
2 |
1 |
120-003-008 |
887ENDPLATE[CWDRIVE/CCWNONDRIVE],MACHINED |
|
3 |
1 |
120-003-009 |
887ENDPLATE[CWNONDRIVE/CCWDRIVE],MACHINED |
|
4 |
2 |
120-004-001 |
GASKET887ENDPLATE |
|
5 |
1 |
120-005-008 |
887ROTORASSEMBLY |
|
6 |
1 |
120-006 |
KEY3/8"X3/8"X2" |
|
7 |
7 |
120-007-887 |
VANE 887 |
|
8 |
2 |
120-009-004 |
SEAL SLEEVE 887 |
|
9 |
4 |
120-018-001 |
SEAL70X85X08AVITONSGLLIP |
|
10 |
1 |
120-019-001 |
BEARINGBALL887DRIVEEND |
|
11 |
1 |
120-019-002 |
BEARING ROLLER 887 NON DRIVE END |
|
12 |
2 |
120-039-007 |
GASKET887PROINTAKE/EXHAUST |
|
13 |
1 |
120-041-887 |
CHECKVALVE887PRO |
|
14 |
1 |
120-042-887 |
887 CHECK VALVE HOLDER MACHINED |
|
15 |
1 |
120-045 |
SPRING4-WAYFTRVALVE |
|
16 |
2 |
120-053-506 |
SEAL45X62X8VITON |
|
17 |
1 |
120-054-005 |
COVER BRNGS NON DRIVE END 887 |
|
18 |
1 |
120-054-006 |
COVER BRNGS DRIVE END 887 |
|
19 |
2 |
120-055-001 |
GASKET887BEARINGCOVER |
|
20 |
1 |
120-058 |
PLUG BRASS HEX HEAD 1/8" NPT |
|
21 |
1 |
120-060-002 |
GRIP,HANDLEW/LOGO |
|
22 |
1 |
120-062-009 |
887 PLUG, MACHINED ASSY |
|
23 |
2 |
120-063-506 |
FLANGE 4" NPT |
|
24 |
2 |
120-064-017 |
O-RING2-216-VITON |
|
25 |
1 |
120-064-030 |
O-RINGSQUAREVITON436 |
|
26 |
1 |
120-064-032 |
O-RING2-230 VITON |
|
27 |
1 |
120-064-035 |
O-RING2-266 VITON |
|
28 |
2 |
120-064-506 |
ORING,2-158SILICONE |
|
29 |
1 |
120-065-009 |
TOWER887MACHINED |
|
30 |
1 |
120-068 |
ORING, 2-252 VITON |
|
31 |
1 |
120-070-001 |
TIN LOWER ROLLED 887 |
|
32 |
1 |
120-071-001 |
TIN UPPER ROLLED 887 |
|
33 |
1 |
120-073-E |
FANCOVER607/866E-COAT |
|
34 |
1 |
120-074-002 |
FAN SHROUD 887 MACHINED |
|
35 |
1 |
120-076 |
KEY3/8"X3/8"X1" |
|
36 |
1 |
120-077-001 |
SHROUD SUPPORT PLATE 887 |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
37 |
1 |
120-079-008 |
GUARDNVEOILPUMP607/887W/TAGMOUNT |
|
38 |
1 |
120-084-003 |
FAN ASSY CW 887 |
|
39 |
1 |
120-090-009 |
BALLAST MANIFOLD 887 |
|
40 |
1 |
120-095-003 |
COVERVALVEBALLASTVALVEMACHINED |
|
41 |
1 |
120-095-004 |
SCREW ADJUSTMENT BALLAST VALVE |
|
42 |
1 |
120-095-005 |
PLUNGER BALLAST VALVE MACHINED |
|
43 |
1 |
120-095-006 |
PISTONSEAT |
|
44 |
1 |
120-095-007 |
DIAPHRAGM PLATE BALLAST VALVE |
|
45 |
1 |
120-095-012 |
GASKET BALLAST VALVE PROTECTIVE |
|
46 |
1 |
120-095-013 |
HOUSINGBALLASTVALVE MACHINED |
|
47 |
1 |
120-097-002 |
GASKET887BALLASTMANIFOLD |
|
48 |
1 |
120-097-003 |
GASKET BALLAST VALVE LOWER |
|
49 |
1 |
120-097-004 |
DIAPHRAGM BALLAST VALVE |
|
50 |
1 |
120-097-005 |
COMPRESSIONSPRING1.375O.D.X 1.041 I.D. |
|
51 |
1 |
120-099-506-4 |
BALLASTFILTERASSEMBLY, REMOTE |
|
52 |
2 |
120-100-012 |
DECAL CLEAN FILTER REGULARY YELLOW |
|
53 |
1 |
120-100-014 |
TOE TAG DECAL REIEF MUST BE SET |
|
54 |
2 |
120-100-053 |
DECAL, 887 PRO CHALLENGER HD |
|
55 |
1 |
120-101-003 |
DECALCWROTATIONARROW |
|
56 |
1 |
120-102 |
VALVE,DRAIN1/8"NPT |
|
57 |
1 |
120-105-887 |
NAME PLATE SS 887 |
|
58 |
1 |
120-107-001 |
SERIALTAGSS |
|
59 |
1 |
120-220 |
THERMOMETER,50-400DEG,2"FACE |
|
60 |
1 |
120-310-004 |
COVER FLTR MACHINED 607 & B500 |
|
61 |
4 |
120-312-002 |
KNOB, 5/16-18UNC |
|
62 |
1 |
120-314-005 |
INTAKEFILTER887PRO |
|
63 |
1 |
120-320-005 |
MANIFOLD 887 PRO MACHINED |
|
64 |
2 |
120-406-002 |
WASHERWAVE,887 |
|
65 |
1 |
120-645-001 |
LOCK NUT 887 |
|
66 |
1 |
123-000-004 |
OIL PUMP 4 PORT NVE |
|
67 |
12 |
123-013-001 |
WASHER3/8"SEALINGVITON |
|
68 |
6 |
123-408-014 |
BANJOBOLT1/8"BSPP |
|
69 |
1 |
124-360-001 |
BALLASTSILENCER IN-LINE887 |
|
70 |
1 |
150-047-006 |
PLUG SAE ORB -5 VITON |
|
71 |
1 |
150-220-VPOIL-150 |
OILVACUUMPUMPR&OISO150/SAE40 |
|
72 |
1 |
280-355-282 |
BALLASTVALVEBRACKET,887PRO |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
73 |
1 |
320-081 |
REMOTE OIL TANK KIT |
|
74 |
1 |
320-083-011 |
CAP OIL PUMP FEED LINE FITTING |
|
75 |
1 |
320-407-017 |
OILLINE-3SSTFEMALEJICTOBANJO8.5" |
|
76 |
1 |
320-407-029 |
OILLINE-3SST90DEGJICTOBANJO37.125" |
|
77 |
1 |
320-407-030 |
OILLINE-3SSTBANJOTOBANJO32.00" |
|
78 |
1 |
320-407-031 |
OILLINE-3SSTBANJOTOBANJO11.50" |
|
79 |
1 |
320-407-038 |
OILLINE-4SST90DEGJICTOFEMALEJIC22.750" |
|
80 |
2 |
320-408-016 |
FITTINGSTR-3MJIC X 1/8MNPT |
|
81 |
1 |
320-408-035 |
FITTINGSTR-4MJIC X 1/8 MNPT |
|
82 |
1 |
320-408-036 |
FITTINGELBOW-4MJICX1/4MNPT |
|
83 |
1 |
320-409-017 |
P-CLIP3/8"ID13/32"HOLEGALV |
|
84 |
1 |
320-LF8 |
DRIVETAB |
|
85 |
1 |
320-R31 |
GASKET,OILPUMP |
|
86 |
1 |
366-150 |
VACUUMRELIEF,11/2"NPT |
|
87 |
1 |
400-026-887 |
EXTERNALRETAININGRING,887 |
|
88 |
1 |
412-020-003 |
WASHER,CUP4-WAY |
|
89 |
1 |
412-060-009 |
HANDLE4310ENCLOSED |
|
200 |
1 |
OWNERS MANUAL - 887 |
OWNERS MANUAL 887 |
|
201 |
1 |
320-082-001 |
OILTANK,5QT,W/LOGO |
|
202 |
1 |
320-083-009 |
OILTANKFILTER,100MESH |
|
203 |
1 |
320-083-010 |
FILTERFITTING,OILTANK1/4NPT |
|
204 |
5 FT |
320-407-003 |
OIL LINE,BLK 1/4"ID 30R7 |
|
205 |
2 |
416-025-1WC |
CLAMP,WORM,1/4"DIA |
|
206 |
6IN |
320-R102 |
OIL LINE, 3/8" X 1/4" ID X 6" LG |
|
207 |
1 |
310-LP5 |
HOSEBARB,1/4"X1/8"NPTSTRAIGHT |
|
300 |
22 |
FW-3/8 |
FLATWASHER, 3/8 |
|
301 |
1 |
FW-5/16 |
FLATWASHER,5/16 |
|
302 |
1 |
HEXNUT-3/8UNF |
HEXNUT-3/8UNF |
|
303 |
1 |
HHCS-3/8-16UNCX0.50 |
HEXHEADCAPSCREW-3/8-16UNCX0.50 |
|
304 |
8 |
HHCS-3/8-16UNCX0.75 |
HEXHEADCAPSCREW-3/8-16UNCX0.75 |
|
305 |
14 |
HHCS-3/8-16UNCX1.75 |
HEXHEADCAPSCREW-3/8-16UNCX1.75 |
|
306 |
1 |
HHCS-5/16-18UNC X 1.00 |
HEXHEADCAPSCREW-5/16-18UNCX1.00 |
|
307 |
2 |
LW-1/4 |
LOCK WASHER, 1/4 |
|
308 |
15 |
LW-3/8 |
LOCK WASHER, 3/8 |
|
309 |
5 |
LW-5/16 |
LOCK WASHER, 5/16 |
|
310 |
3 |
PLUG-1/4NPTSH |
SOCKETHEADPLUG-1/4NPT |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
311 |
6 |
PLUG-1/8NPTSH |
SOCKETHEADPLUG-1/8NPT |
|
312 |
6 |
RVT3/32DX1/4LSS |
BLIND RIVET,3/32 DIA X 1/4 GRIP, SS |
|
313 |
4 |
SFHCS - 1/2-13 UNC X 1.00 |
SERRATEDFLANGEHEXHEADSCREW-1/2-13UNCX1.00 |
|
314 |
4 |
SFHCS - 1/2-13 UNC X 1.50 |
SERRATEDFLANGEHEXHEADSCREW-1/2-13UNCX1.50 |
|
315 |
1 |
SFHCS-3/8-16UNCX0.75 |
SERRATEDFLANGEHEXHEADSCREW-3/8-16UNCX0.75 |
|
316 |
4 |
SFHCS-3/8-16UNCX1.00 |
SERRATEDFLANGEHEXHEADSCREW-3/8-16UNCX1.00 |
|
317 |
8 |
SFHCS-3/8-16UNCX1.25 |
SERRATEDFLANGEHEXHEADSCREW-3/8-16UNCX1.25 |
|
318 |
2 |
SFHCS-3/8-16UNCX1.75 |
SERRATEDFLANGEHEXHEADSCREW-3/8-16UNCX1.75 |
|
319 |
8 |
SFHCS-3/8-16UNCX2.25 |
SERRATEDFLANGEHEXHEADSCREW-3/8-16UNCX2.25 |
|
320 |
2 |
SFHCS-5/16-18UNC X 0.75 |
SERRATEDFLANGEHEXHEADSCREW-5/16-18UNCX0.75 |
|
321 |
15 |
SFHCS-5/16-18UNC X 1.00 |
SERRATEDFLANGEHEXHEADSCREW-5/16-18UNCX1.00 |
|
322 |
8 |
SFHCS-5/16-18UNC X 1.25 |
SERRATEDFLANGEHEXHEADSCREW-5/16-18UNCX1.25 |
|
323 |
1 |
SHCS-1/4-20UNCX0.625 |
SOCKETHEADCAPSCREW-1/4-20UNCX0.625 |
|
324 |
7 |
SHCS-1/4-20UNCX0.75 |
SOCKETHEADCAPSCREW-1/4-20UNCX0.75 |
|
325 |
4 |
SS - 5/16-18 UNC X 2.00 |
HEXAGONSOCKETSETSCREW-5/16-18UNCX2.00SS |
|
326 |
10 |
TAPSCR-1_4-14X0.75 |
HEXHEADSELFTAPPINGSCREW1/4-14 |

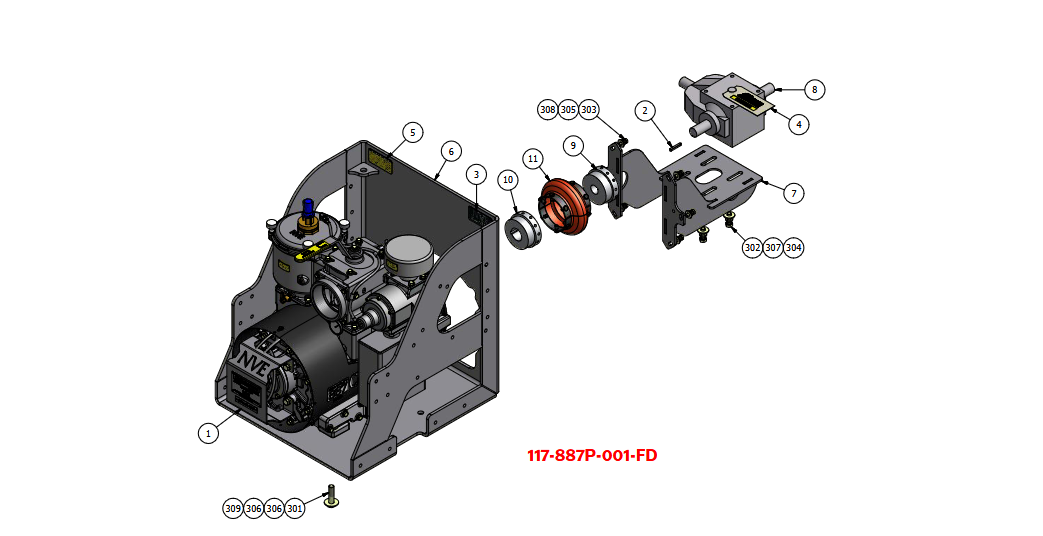

887 PRO Pump Stand Complete | Parts Diagram
|
|
|
|
|
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
1 |
1 |
103-887P-FD |
CHALLENGER 887 PRO CW FAN |
|
2 |
1 |
120-006-184 |
KEY .25" X .25" X 1.875" |
|
3 |
1 |
120-100-001 |
DECAL, NVE, MUFFLER PAK |
|
4 |
1 |
120-100-013 |
TOE TAG DECAL GEARBOX VENT (INSTALL) |
|
5 |
1 |
120-104-001 |
DECAL,IMPORTANT,RESPONSIBILITY |
|
6 |
1 |
280-350-021 |
887STAND2.0 |
|
7 |
1 |
280-401-003 |
607P GEARBOX MOUNT WELDED |
|
8 |
1 |
422-400-1 |
GEARBOX,400SERIES1:1RATIO |
|
9 |
1 |
424-200-125 |
COUPLERHUBE2011/4"BORE1/4"KEY |
|
10 |
1 |
424-200-175 |
COUPLERHUBE2013/4"BORE |
|
11 |
1 |
424-200-E20 |
COUPLER FLEX ELEMENT E20 |
|
301 |
4 |
HHCS - 5/8-11 UNC X 2.50 |
HEXHEADCAPSCREW-5/8-11UNCX2.50 |
|
302 |
4 |
HHCS - 1/2-13 UNC X 1.50 |
HEXHEADCAPSCREW-1/2-13UNCX1.50 |
|
303 |
6 |
HHCS-3/8-16UNCX1.00 |
HEXHEADCAPSCREW-3/8-16UNCX1.00 |
|
304 |
4 |
LW-1/2 |
LOCK WASHER, 1/2 |
|
305 |
6 |
LW-3/8 |
LOCK WASHER, 3/8 |
|
306 |
8 |
FW-5/8 |
FLATWASHER, 5/8 |
|
307 |
4 |
FW-1/2 |
FLAT WASHER, 1/2 |
|
308 |
6 |
FW-3/8 |
FLAT WASHER, 3/8 |
|
309 |
4 |
NYLOCK NUT - 5/8 UNC |
NYLOCK NUT - 5/8 UNC |
887 PRO Muffler Package | Parts Diagram
|
|
|
|
|
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
1 |
1 |
103-887P-FD |
CHALLENGER 887 PRO CW FAN |
|
2 |
1 |
120-006-184 |
KEY .25" X .25" X 1.875" |
|
3 |
1 |
120-059 |
PLUGBRASSHEXHEAD1/4"NPT |
|
4 |
1 |
120-064-012 |
O-RING,2-350 VITON |
|
5 |
1 |
120-100-001 |
DECAL, NVE, MUFFLER PAK |
|
6 |
1 |
120-100-011 |
DECALDRAINDAILY-YELLOW |
|
7 |
1 |
120-100-013 |
TOE TAG DECAL GEARBOX VENT (INSTALL) |
|
8 |
1 |
120-100-015 |
DECAL HOT |
|
9 |
1 |
120-104-001 |
DECAL,IMPORTANT,RESPONSIBILITY |
|
10 |
1 |
124-360-002 |
IN-LINEEXHAUSTSILENCERRH |
|
11 |
1 |
150-063-014 |
FLANGE,4"ADJ-ELBOWNARROW |
|
12 |
1 |
212-140-4NPT-4 |
OCM14"DIA4"NPTW/RESONATORRH |
|
13 |
1 |
280-350-021 |
887STAND2.0 |
|
14 |
1 |
280-401-003 |
607P GEARBOX MOUNT WELDED |
|
15 |
1 |
422-400-1 |
GEARBOX,400SERIES1:1RATIO |
|
16 |
1 |
424-200-125 |
COUPLERHUBE2011/4"BORE1/4"KEY |
|
17 |
1 |
424-200-175 |
COUPLERHUBE2013/4"BORE |
|
18 |
1 |
424-200-E20 |
COUPLER FLEX ELEMENT E20 |
|
19 |
1 |
426-400-TAR-0250 |
HOSE4"DX2.5"L |
|
20 |
1 |
426-400-TAR-10IN |
HOSE,4",TAR&ASPHALT-10INLG |
|
21 |
4 |
426-4625-TBC |
CLAMP,T-BOLT,4.625" |
|
22 |
1 |
803-063-001 |
E-COATELBOW4"90DEGALU(HBTOO-RING) |
|
301 |
4 |
HHCS-5/8-11UNC X 2.50 |
HEXHEADCAPSCREW-5/8-11UNCX2.50 |
|
302 |
4 |
HHCS - 1/2-13 UNC X 1.50 |
HEXHEADCAPSCREW-1/2-13UNCX1.50 |
|
303 |
6 |
HHCS-3/8-16UNCX1.00 |
HEXHEADCAPSCREW-3/8-16UNCX1.00 |
|
304 |
2 |
HHCS-3/8-16UNCX1.25 |
HEXHEADCAPSCREW-3/8-16UNCX1.25 |
|
305 |
10 |
HHCS-3/8-16UNCX1.50 |
HEXHEADCAPSCREW-3/8-16UNCX1.50 |
|
306 |
4 |
HHCS - 5/16-18 UNC X 1.50 |
HEXHEADCAPSCREW-5/16-18UNCX1.50 |
|
307 |
4 |
LW-1/2 |
LOCK WASHER, 1/2 |
|
308 |
6 |
LW-3/8 |
LOCK WASHER, 3/8 |
|
309 |
4 |
LW-5/16 |
LOCK WASHER, 5/16 |
|
310 |
8 |
FW-5/8 |
FLAT WASHER, 5/8 |
|
311 |
4 |
FW-1/2 |
FLAT WASHER, 1/2 |
|
312 |
30 |
FW-3/8 |
FLAT WASHER, 3/8 |
|
313 |
12 |
NYLOCK NUT - 3/8 UNC |
NYLOCK NUT - 3/8 UNC |
|
314 |
4 |
NYLOCK NUT - 5/8 UNC |
NYLOCK NUT - 5/8 UNC |
887 PRO Max Package | Parts Diagram
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
1 |
1 |
103-887P-FD |
CHALLENGER 887 PRO CW FAN |
|
2 |
1 |
120-006-184 |
KEY .25" X .25" X 1.875" |
|
3 |
1 |
120-059 |
PLUGBRASSHEXHEAD1/4"NPT |
|
4 |
2 |
120-064-012 |
O-RING,2-350 VITON |
|
5 |
1 |
120-100-001 |
DECAL, NVE, MUFFLER PAK |
|
6 |
2 |
120-100-011 |
DECALDRAINDAILY-YELLOW |
|
7 |
1 |
120-100-013 |
TOE TAG DECAL GEARBOX VENT (INSTALL) |
|
8 |
1 |
120-100-014 |
TOE TAG DECAL REIEF MUST BE SET |
|
9 |
1 |
120-100-015 |
DECAL HOT |
|
10 |
1 |
120-104-001 |
DECAL,IMPORTANT,RESPONSIBILITY |
|
11 |
1 |
124-360-002 |
IN-LINEEXHAUSTSILENCERRH |
|
12 |
2 |
150-063-014 |
FLANGE,4"ADJ-ELBOWNARROW |
|
13 |
1 |
212-140-4NPT-4 |
OCM14"DIA4"NPTW/RESONATORRH |
|
14 |
1 |
218-001-4L |
M.T.BOLTON,4"ALUMLH |
|
15 |
1 |
280-350-021 |
887STAND2.0 |
|
16 |
1 |
280-401-003 |
607P GEARBOX MOUNT WELDED |
|
17 |
1 |
288-100 |
DRAINVALVEBRASS1"IPS |
|
18 |
2 |
364-306-2 |
PRESSURE RELIEF, 2" |
|
19 |
1 |
366-150 |
VACUUMRELIEF,11/2"NPT |
|
20 |
1 |
408-250-LF |
GAUGE,2.5"VAC/PRESS,LIQBOTTOMCONN |
|
21 |
1 |
422-400-1 |
GEARBOX,400SERIES1:1RATIO |
|
22 |
1 |
424-200-125 |
COUPLERHUBE2011/4"BORE1/4"KEY |
|
23 |
1 |
424-200-175 |
COUPLERHUBE2013/4"BORE |
|
24 |
1 |
424-200-E20 |
COUPLER FLEX ELEMENT E20 |
|
25 |
1 |
426-400-TAR-0250 |
HOSE4"DX2.5"L |
|
26 |
2 |
426-400-TAR-10IN |
HOSE,4",TAR&ASPHALT-10INLG |
|
27 |
6 |
426-4625-TBC |
CLAMP,T-BOLT,4.625" |
|
28 |
1 |
428-100-2G |
NIPPLE CLOSE MNPT 1" GALV |
|
29 |
1 |
428-2X1-CG |
BUSHING2"MPTX1"FPTGALVANIZED |
|
30 |
2 |
803-063-001 |
E-COATELBOW4"90DEGALU(HBTOO-RING) |
|
301 |
4 |
HHCS-5/8-11UNC X 2.50 |
HEXHEADCAPSCREW-5/8-11UNCX2.50 |
|
302 |
4 |
HHCS - 1/2-13 UNC X 1.50 |
HEXHEADCAPSCREW-1/2-13UNCX1.50 |
|
303 |
6 |
HHCS-3/8-16UNCX1.00 |
HEXHEADCAPSCREW-3/8-16UNCX1.00 |
|
304 |
2 |
HHCS-3/8-16UNCX1.25 |
HEXHEADCAPSCREW-3/8-16UNCX1.25 |
|
305 |
17 |
HHCS-3/8-16UNCX1.50 |
HEXHEADCAPSCREW-3/8-16UNCX1.50 |
|
306 |
8 |
HHCS-5/16-18UNC X 1.50 |
HEXHEADCAPSCREW-5/16-18UNCX1.50 |
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
307 |
4 |
LW-1/2 |
LOCK WASHER, 1/2 |
|
308 |
6 |
LW-3/8 |
LOCK WASHER, 3/8 |
|
309 |
8 |
LW-5/16 |
LOCK WASHER, 5/16 |
|
310 |
8 |
FW-5/8 |
FLATWASHER, 5/8 |
|
311 |
4 |
FW-1/2 |
FLATWASHER, 1/2 |
|
312 |
44 |
FW-3/8 |
FLATWASHER, 3/8 |
|
313 |
19 |
NYLOCK NUT - 3/8 UNC |
NYLOCK NUT - 3/8 UNC |
|
314 |
4 |
NYLOCK NUT - 5/8 UNC |
NYLOCK NUT - 5/8 UNC |
887 PRO Engine Drive | Parts Diagram
|
|
|
|
|
|
ITEM |
QTY |
PARTNUMBER |
DESCRIPTION |
|
|
1 |
103-887P-FD1 |
CHALLENGER 887 PRO CW FAN OIL FIELD |
|
|
1 |
120-103 |
VALVE, DRAIN 1/4" NPT |
|
|
1 |
150-063-014 |
FLANGE,4"ADJ-ELBOWNARROW |
|
|
1 |
212-140-4NPT-3 |
OCM14"DIA4"NPTW/HBLH |
|
|
2 |
280-460-023-2 |
FUELTANKSTRAP,23GAL,BENT |
|
|
1 |
280-460-026 |
FUEL TANK 23 GAL FAB - BOLT ON FILL NECK |
|
|
1 |
310-LP4 |
HOSEBARB1/4"NPTX1/4"90DEGELBOWBRASS |
|
|
1 |
320-082-001 |
OILTANK,5QT,W/LOGO |
|
|
1 |
320-082-003Z |
FLUSHINGFLUIDTANKASSY,HDPE,1QT |
|
|
1 |
320-083-009 |
OILTANKFILTER,100MESH |
|
|
1 |
320-083-010 |
FILTERFITTING,OILTANK1/4NPT |
|
|
4 |
320-409-015 |
CUSHIONEDSTANDOFFMOUNT1/4"-20UNC |
|
|
4 |
320-409-016 |
CUSHIONEDSANDWICHMOUNT1/4"-20UNCFEMALE |
|
|
3 |
416-025-1WC |
CLAMP,WORM,.250"dia |
|
|
1 |
426-400-TAR-0500 |
HOSE4"DX5"L |
|
|
2 |
426-4625-TBC |
CLAMP,T-BOLT,4.625" |
|
|
1 |
430-100-040 |
PULLEY5V12.5X4-E |
|
|
1 |
430-100-041 |
PULLEY5V6.3X4-SK |
|
|
1 |
430-200-035 |
BELT5VX6904GROOVEBANDED |
|
|
1 |
430-300-038 |
BUSHINGEX1-3/4" |
|
|
1 |
430-300-040 |
BUSHINGSKX2-1/4"X5/8"KEYWAY |
|
|
2 |
430-400-012 |
BEARINGSLEEVE1.25"PILLOWBLOCK |
|
|
1 |
450-100-006 |
BATTERY BOX SMALL GROUP 24 |
|
|
1 |
450-100-007 |
BATTERY850CCAMAINTFREE |
|
|
1 |
460-200-017 |
ENGINEYANMAR4CYL69.3HP |
|
|
1 |
803-063-001 |
E-COATELBOW4"90DEGALU(HBTOO-RING) |
|
|
2 |
860-010 |
THREADEDROD3/8"-16UNCX11.00"SS |
