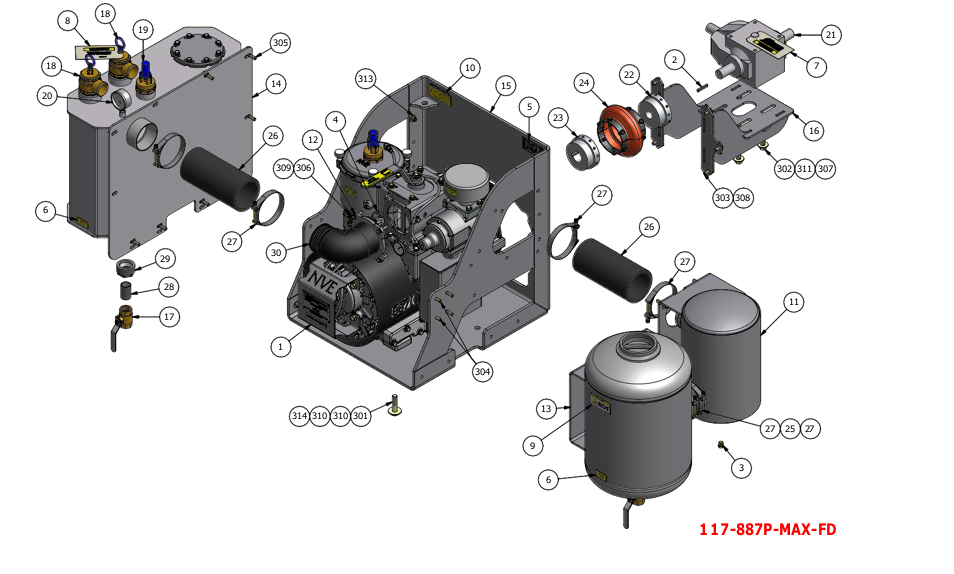

ITEM | QTY | PART NUMBER | DESCRIPTION |
1 | 1 | 103-887P-FD | CHALLENGER 887 PRO CW FAN |
2 | 1 | 120-006-184 | KEY .25" X .25" X 1.875" |
3 | 1 | 120-059 | PLUG BRASS HEX HEAD 1/4" NPT |
4 | 2 | 120-064-012 | O-RING, 2-350 VITON |
5 | 1 | 120-100-001 | DECAL, NVE, MUFFLER PAK |
6 | 2 | 120-100-011 | DECAL DRAIN DAILY - YELLOW |
7 | 1 | 120-100-013 | TOE TAG DECAL GEARBOX VENT (INSTALL) |
8 | 1 | 120-100-014 | TOE TAG DECAL REIEF MUST BE SET |
9 | 1 | 120-100-015 | DECAL HOT |
10 | 1 | 120-104-001 | DECAL, IMPORTANT, RESPONSIBILITY |
11 | 1 | 124-360-002 | IN-LINE EXHAUST SILENCER RH |
12 | 2 | 150-063-014 | FLANGE, 4" ADJ-ELBOW NARROW |
13 | 1 | 212-140-4NPT-4 | OCM 14" DIA 4" NPT W/RESONATOR RH |
14 | 1 | 218-001-4L | M.T. BOLT ON, 4" ALUM LH |
15 | 1 | 280-350-021 | 887 STAND 2.0 |
16 | 1 | 280-401-003 | 607P GEARBOX MOUNT WELDED |
17 | 1 | 288-100 | DRAIN VALVE BRASS 1" IPS |
18 | 2 | 364-306-2 | PRESSURE RELIEF, 2" |
19 | 1 | 366-150 | VACUUM RELIEF, 1 1/2" NPT |
20 | 1 | 408-250-LF | GAUGE, 2.5" VAC/PRESS, LIQ BOTTOM CONN |
21 | 1 | 422-400-1 | GEARBOX, 400 SERIES 1:1 RATIO |
22 | 1 | 424-200-125 | COUPLER HUB E20 1 1/4" BORE 1/4" KEY |
23 | 1 | 424-200-175 | COUPLER HUB E20 1 3/4" BORE |
24 | 1 | 424-200-E20 | COUPLER FLEX ELEMENT E20 |
25 | 1 | 426-400-TAR-0250 | HOSE 4"D X 2.5"L |
26 | 2 | 426-400-TAR-10IN | HOSE, 4", TAR & ASPHALT-10 IN LG |
27 | 6 | 426-4625-TBC | CLAMP, T-BOLT, 4.625" |
28 | 1 | 428-100-2G | NIPPLE CLOSE MNPT 1" GALV |
29 | 1 | 428-2X1-CG | BUSHING 2" MPT X 1" FPT GALVANIZED |
30 | 2 | 803-063-001 | E-COAT ELBOW 4" 90 DEG ALU (HB TO O-RING) |
301 | 4 | HHCS - 5/8-11 UNC X 2.50 | HEX HEAD CAP SCREW - 5/8-11 UNC X 2.50 |
302 | 4 | HHCS - 1/2-13 UNC X 1.50 | HEX HEAD CAP SCREW - 1/2-13 UNC X 1.50 |
303 | 6 | HHCS - 3/8-16 UNC X 1.00 | HEX HEAD CAP SCREW - 3/8-16 UNC X 1.00 |
304 | 2 | HHCS - 3/8-16 UNC X 1.25 | HEX HEAD CAP SCREW - 3/8-16 UNC X 1.25 |
305 | 17 | HHCS - 3/8-16 UNC X 1.50 | HEX HEAD CAP SCREW - 3/8-16 UNC X 1.50 |
306 | 8 | HHCS - 5/16-18 UNC X 1.50 | HEX HEAD CAP SCREW - 5/16-18 UNC X 1.50 |
307 | 4 | LW - 1/2 | LOCK WASHER, 1/2 |
308 | 6 | LW - 3/8 | LOCK WASHER, 3/8 |
309 | 8 | LW - 5/16 | LOCK WASHER, 5/16 |
310 | 8 | FW - 5/8 | FLAT WASHER, 5/8 |
311 | 4 | FW - 1/2 | FLAT WASHER, 1/2 |
312 | 44 | FW - 3/8 | FLAT WASHER, 3/8 |
313 | 19 | NYLOCK NUT - 3/8 UNC | NYLOCK NUT - 3/8 UNC |
314 | 4 | NYLOCK NUT - 5/8 UNC | NYLOCK NUT - 5/8 UNC |
