Masport Cobra Plug and Play
- SKU:
- 12945
- UPC:
Masport Cobra Plug & Play Vacuum/Pressure Pump System
The Masport Cobra Plug & Play system is engineered for high-performance applications requiring both vacuum and pressure capabilities. Designed for ease of installation and maintenance, this fully integrated system is ideal for demanding industrial and municipal operations.
Key Features
-
High Airflow Capacity: Delivers 532 CFM, suitable for large-scale operations.
-
Dual Functionality: Performs both vacuum and pressure tasks efficiently.
-
Heavy-Duty Construction: Built with a robust pump stand and durable components to withstand rigorous use.
-
Integrated Oil Separator/Muffler: Ensures clean operation by separating oil from exhaust gases.
-
Advanced Oil Reservoir: Features a heavy-duty steel oil reservoir for reliable lubrication.
-
Pre-Filter System: Includes a stainless steel inlet filter to protect the pump from debris.
-
Relief Valves and Gauges: Equipped with vacuum/pressure relief valves and gauges for monitoring and safety.
-
Versatile Drive Options: Offers self-aligning gearbox or hydraulic drive configurations to suit various setups.
-
Efficient Scrubber/Separator: Compact design for effective separation and minimal maintenance.
-
Customizable Layout: Available with left or right-handed scrubber configurations to fit specific vehicle designs.
⚙️ Technical Specifications
-
Airflow: 532 CFM
-
Optimal Tank Size: 3,000 to 8,000 gallons
-
Port Size: 4″
-
Cooling Type: Fan Cooled
-
Drive Options: Gearbox (Clockwise/Counter-Clockwise) or Hydraulic
-
Oiling System: Automatic Oil Pump
-
Oil Reservoir Options: Steel
-
Weight: Approximately 930 lbs (Gearbox), 935 lbs (Hydraulic)
-
Max Vacuum (Continuous): 22″ Hg
-
Max Vacuum (Intermittent): 27″ Hg
-
Max Pressure (Continuous): 20 P.S.I.G.
-
Max Pressure (Intermittent): 30 P.S.I.G.


Masport® Plug-N-Play System—HXL4V

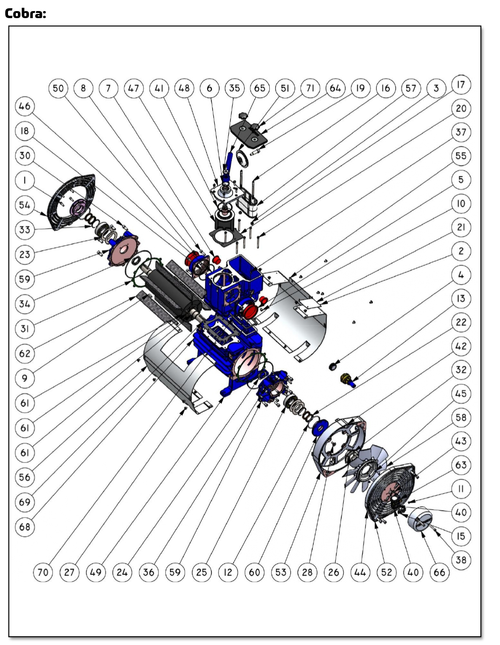

Masport Vaccum Pump Cobra Exploded View
