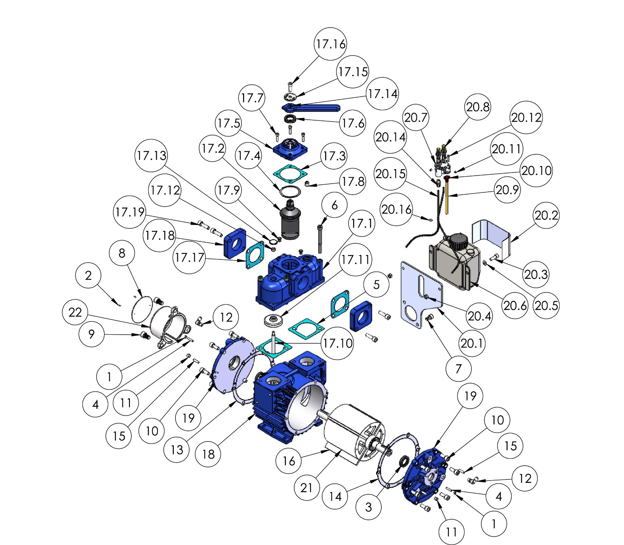

| Item | Code | Description | Qty | Item | Code | Description | Qty | |
| 1 | 220221 | Nut - M5 | 6 | 17.13 | 504288 | Plug | 1 | |
| 2 | 500806 | Rivet - 2.5 X 6 | 2 | 17.14 | 668055 | Valve Handle | 1 | |
| 3 | 501578 | Seal - 25 x 40 x 8 | 2 | 17.15 | 569724 | Indicator Washer | 1 | |
| 4 | 503225 | Grub Screw - M5 x 20 | 6 | 17.16 | 11063 | Bolt - M8 x 25 | 1 | |
| 5 | 568066 | Gasket – Valve | 2 | 17.17 | 36202 | Gasket - Flange” | 2 | |
| 6 | 568249 | Bolt - M10 x 100 | 4 | 17.18 | 968159 | Flange - 1 1/2" | 2 | |
| 7 | 569218 | Bolt - M10 x 16 | 2 | 17.19 | 501966 | Bolt - M10 x 55 | 4 | |
| 8 | 569234 | Pump Model Tag | 1 | 18 | 969203 | Cylinder | 1 | |
| 9 | 569236 | Bolt - 1/2” x 3/4” | 3 | 19 | 969207 | End Cover | 2 | |
| 10 | 569538 | Bolt - M10 x 25 | 12 | 20.1 | 33502 | Oil Tank Bracket | 1 | |
| 11 | 569726 | Plug - 1/8” | 2 | 20.2 | 39111 | Oil Tank Sticker | 1 | |
| 12 | 569948 | Oil Line Fitting | 2 | 20.3 | 11063 | Bolt - M8 x 25 | 1 | |
| 13 | 575005 | Shim End Cover - .001” | * | 20.4 | 504278 | Nut - M8 | 2 | |
| 14 | 575006 | Shim End Cover - .002” | * | 20.5 | 25059 | Washer - M8 | 2 | |
| 15 | 575111 | Dowel Pin - 6 X 24 | 4 | 20.6 | 569209 | Oil Tank - 1.5 Quart | 1 | |
| 16 | 968236 | Vane Pack | 1 | 20.7 | 969217 | Dripper Housing | 1 | |
| 17.1 | 968359 | Valve Body | 1 | 20.8 | 569146 | Dripper | 2 | |
| 17.2 | 968362 | Spool | 1 | 20.9 | 569212 | Dip Tube | 1 | |
| 17.3 | 568063 | Gasket - Valve Cap | 1 | 20.1 | 569213 | Dripper Clamp Ring | 1 | |
| 17.4 | 568363 | Wave Washer | 1 | 20.11 | 504264 | Grub Screw - M5 x 6 | 2 | |
| 17.5 | 968364 | Valve Cap | 1 | 20.12 | 569216 | Bolt - M4 x 20 | 2 | |
| 17.6 | 501578 | Seal - 25 x 40 x 8 | 1 | 20.13 | 569214 | Dripper Clamp Gasket | 1 | |
| 17.7 | 11049 | Bolt - M6 x 25 | 4 | 20.14 | 569947 | Oil Line Fitting | 2 | |
| 17.8 | 503416 | Plug - 1/4” | 1 | 20.15 | 600293 | Oil Line | 2 | |
| 17.9 | 568892 | Rubber Plug | 2 | 20.16 | 503054 | Cable Tie | 1 | |
| 17.1 | 568343 | Shoulder Bolt | 1 | 21 | 969233 | Rotor Assembly | 1 | |
| 17.11 | 968353 | Non-Return Valve | 1 | 22 | 969237 | Shaft Cover | 1 | |
| 17.12 | 504278 | Nut - M8 | 1 |
