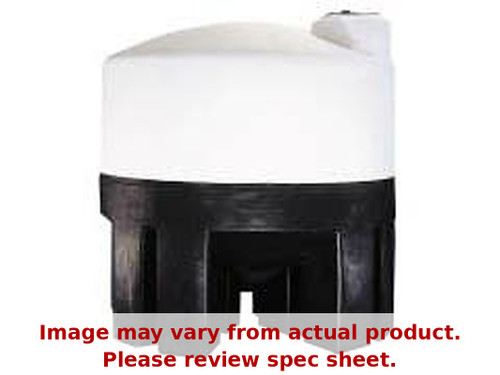

The Norwesco 1600 Gallon 30° Plastic Vertical Cone Bottom Tank in White (Part No. 40817) delivers exceptional performance for mixing, aeration, and complete liquid drainage. Its 30° cone bottom design ensures fast and efficient emptying, ideal for applications that require full liquid removal. Manufactured from high-density polyethylene (HDPE) through a rotational molding process, the tank provides outstanding resistance to impact, cracking, and corrosion.

This model serves as a replacement tank for part # N-40813 (tank only).

Key Features & Benefits:
• 30° Cone Bottom Design – Ensures quick and complete drainage for all stored liquids.
• Durable Polyethylene Construction – Rotationally molded one-piece design prevents leaks and provides superior chemical resistance.
• FDA-Approved Material – Safe for food-grade and potable water applications.
• UV-Stabilized Resin – Protects against sunlight for both indoor and outdoor use.
• 16" Vented Lid – Easy access for filling and maintenance.
• 2" Outlet (Female NPT Polypropylene Bulkhead Fitting) w/ Viton Gasket – Leak-resistant and chemical-compatible outlet assembly.
• Ideal for Mixing and Aeration – Conical design promotes better flow and agitation.
• NSF61 Certified – Safe for potable water storage.
• Max Temperature: 120°F (48°C).
• Warranty: 3 Years.

Applications:
• Water treatment and purification
• Fertilizer and chemical storage
• Food and beverage processing
• Agricultural spraying and mixing
• Industrial liquid handling

Manufacturer Guarantee:
With over 80 years of expertise, Norwesco is the industry leader in polyethylene tank manufacturing. Norwesco was the first polyethylene tank producer to achieve NSF61 certification for potable water tanks, ensuring top-tier safety, compliance, and reliability.

Technical Drawing
