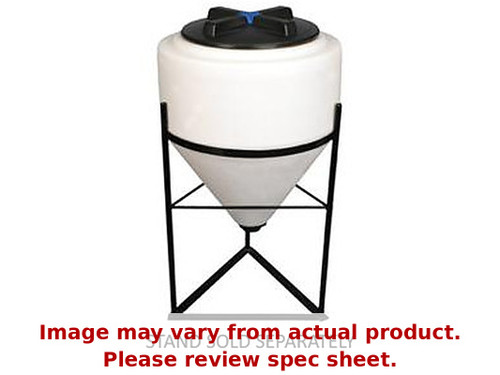

The Norwesco 300 gallon cone bottom tank is a seamless, rotationally molded polyethylene tank designed for full-drainage liquid storage, chemical mixing, and batch processing. The translucent white shell makes it easy to check liquid levels at a glance.

Cone Bottom Tanks are used in a variety of storage applications such as:

• Storage of heavy materials

• Storage of materials prone to sludging

• Storage of dry materials

This cone bottom tank can be high-density linear polyethylene (HDLPE) in compliance with FDA Regulation 177.1520 and NSF/ANSI 61 standards or cross-linked high-density polyethylene (XLPE). It is available with seismic zone 4 and UBC 110 mph wind restraint tie-down systems.

This tank is made with FDA-approved resin — 100% potable and safe for drinking. Its elevated drain allows for wide flexibility of drainage options. The tank also has UV inhibitors to protect against direct sunlight.

Steel Stand Sold Separately

Designed to handle contents up to 12 and a half lbs. per gallon (water is approx. 8 lbs. per gallon).
Excellent impact and chemical resistance.
Quick and easy drainage.
Resin complies with U.S. Food and Drug Administration regulation 21 CFR 177.1520 (c) 3.1 and 3.2.
Translucent white for visible content level.
Norwesco was the first polyethylene tank producer to receive NSF61 certification for potable water tanks, with certified tanks from six manufacturing facilities. Check the NSF Certification document for more details.

Technical Drawing

Freight Quote Required:
Shipping is not included at checkout for this item. You will be contacted after purchase with a freight quote for approval before your order is processed.
